Yamaha TMAX 2020 Service Manual

4-21
GENERAL CHASSIS (3)
EAS31850

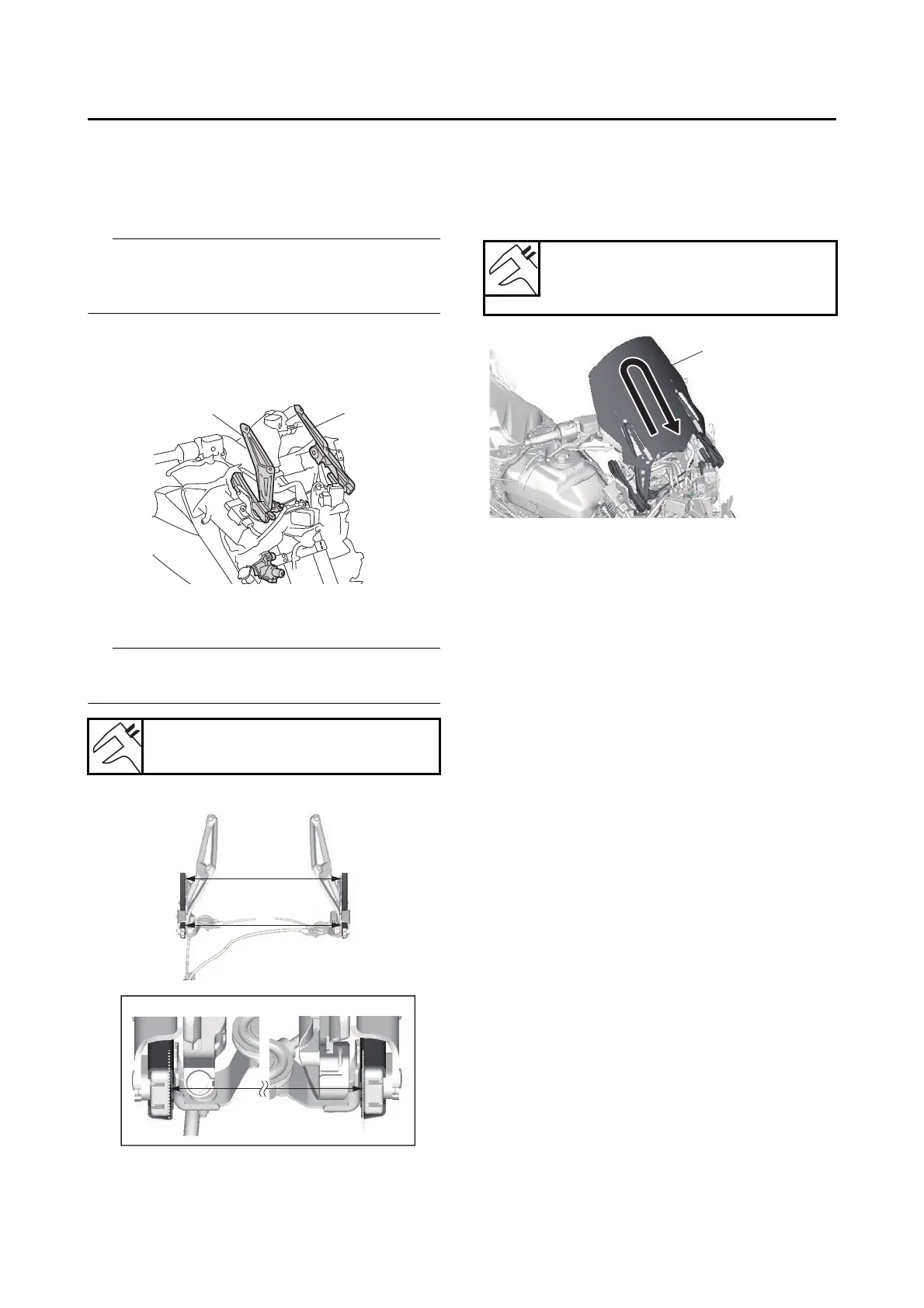

INSTALLING THE WINDSHIELD DRIVE UNIT
(for XP560D)
1. Check:
• Windshield drive unit operation
TIP
After installing the windshield drive unit to the
headlight bracket, check the operation of the
drive unit.
a. Install the windshield drive unit “1”, and then
connect the windshield drive unit coupler to
the wire harness.
b. Adjust the distances, at the top “a” and bot-
tom “b” of the rails, so they are the same.
TIP
Refer to the illustration below for the positions to
measure “c”.
c. After installing the windshield “1”, operate
the windshield drive unit to check that the
arm of the windshield drive unit can move
fully up and down within the prescribed
time.
Rail dimensions (top and bottom)
408 mm (16.1 in)
11
a
b
c
Specified operation time (time re-
quired to move up or down)
1.9–3.8 seconds
1

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
