Yamaha TMAX 2020 Service Manual

5-2
LUBRICATION SYSTEM CHART AND DIAGRAMS
EAS32363

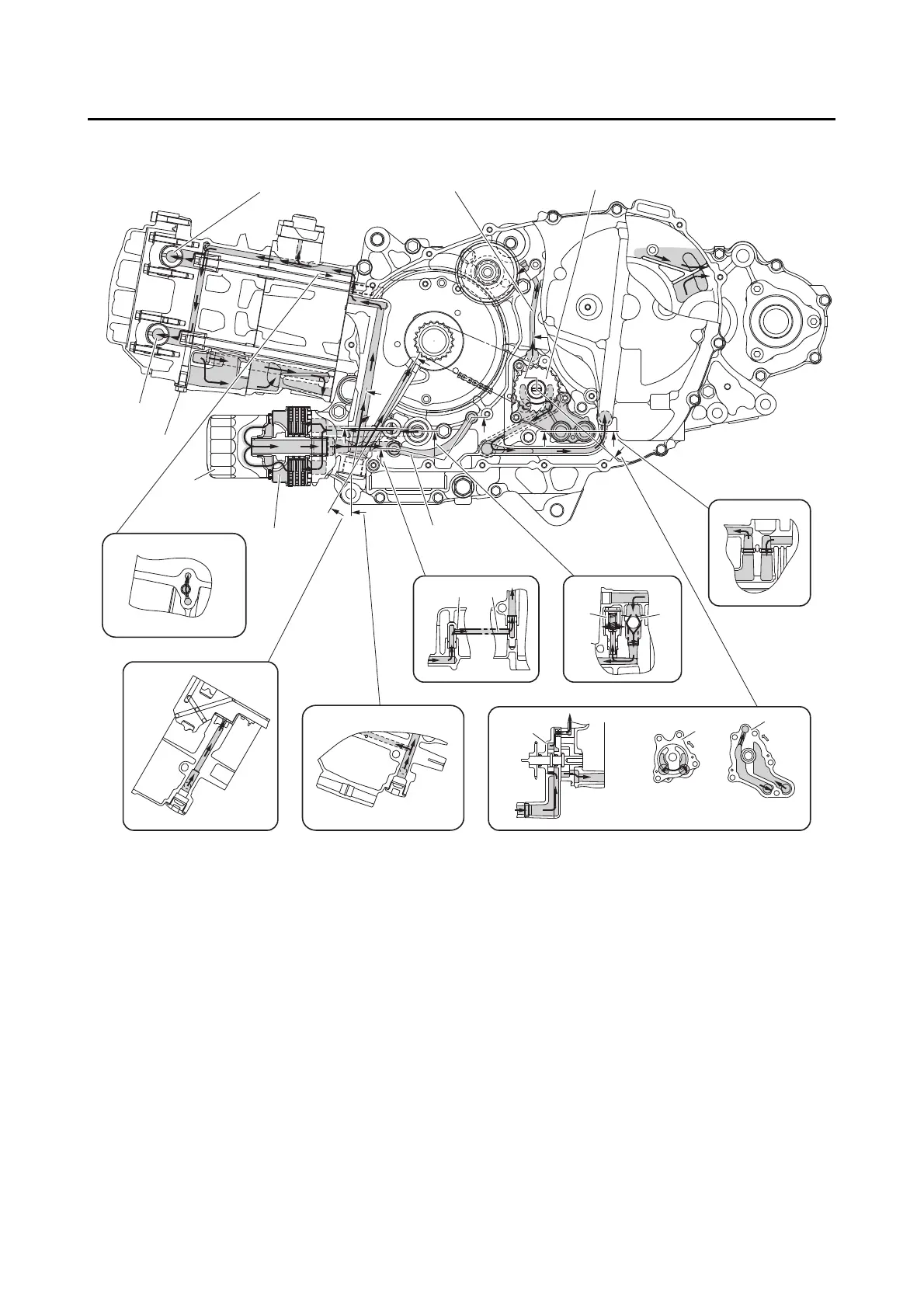

LUBRICATION DIAGRAMS
2
8
9
1
3
7
7
6
5
4
7
11
10
12
4
1. Exhaust camshaft
2. Intake camshaft
3. Oil delivery pipe
4. Oil pump assembly
5. Scavenge pump
6. Feed pump
7. Oil pipe
8. Oil cooler
9. Oil filter
10. Engine oil check bolt
11. Relief valve
12. Check valve

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
