Yamaha TMAX 2020 Service Manual

4-99

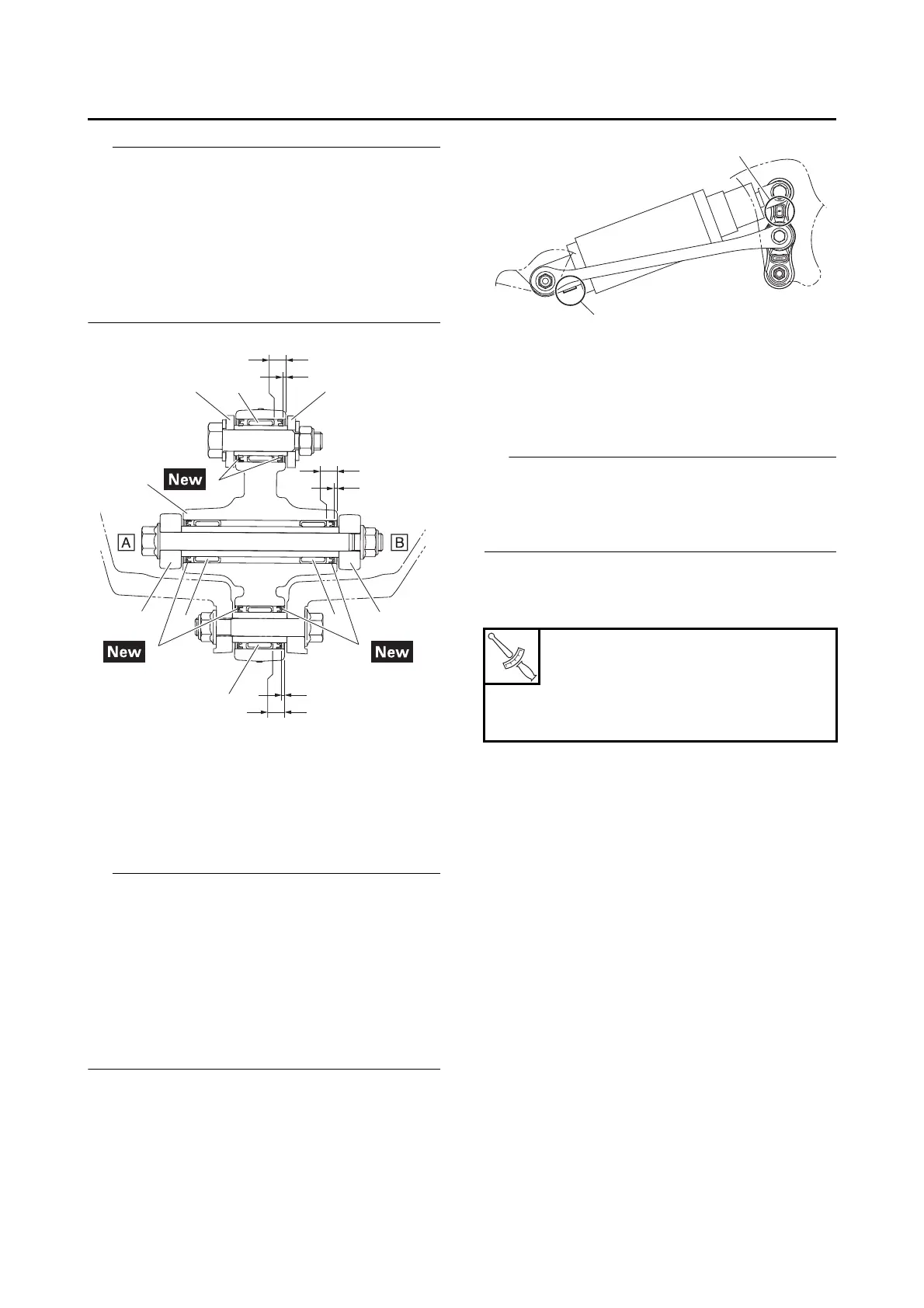

REAR SHOCK ABSORBER ASSEMBLY
TIP
• When installing the oil seals “2” to the relay
arm, face the character stamp of the oil seals
outside.
• Press in the oil seal so it does not protrude
from the end surface of the relay arm.
• Install the connecting arm so that the stamp
mark “B67” is facing outward. The stamp mark
can be facing either up or down.
TIP
• Install the rear shock absorber assembly upper
bolt and connecting arm bolt from the left.
• Install the relay arm so that stamped mark “a”
is positioned as shown in the illustration.
• Install the rear shock absorber assembly so
that the label is facing downward.
• Install the rear shock absorber assembly so
that the rebound damping adjusting screw “b”
is facing downward. (for XP560D)
EAS30225
INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY
1. Install:
• Rear shock absorber assembly
TIP
• Install the rear shock absorber assembly lower
bolt and relay arm bolt from the right.
• Install the rear shock absorber assembly with
the swingarm down.
2. Tighten:
• Rear shock absorber assembly lower nut
• Relay arm nut
3. Relay arm
4. Connecting arm
5. Rear shock absorber assembly
A. Left side
B. Right side
3
4
5
a
c
a
c
b
c
4
5
1
22
1
1
2
1
Rear shock absorber assembly
lower nut
75 N·m (7.5 kgf·m, 55 lb·ft)
Relay arm nut
50 N·m (5.0 kgf·m, 37 lb·ft)
a
b
T
R
.
.

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
