4-68
ABS (Anti-lock Brake System)
EAS30197
REMOVING THE HYDRAULIC UNIT
ASSEMBLY
ECA18230
Unless necessary, avoid removing and in-
stalling the brake pipes of the hydraulic unit
assembly.
EWA13930
Refill with the same type of brake fluid that is
already in the system. Mixing fluids may re-
sult in a harmful chemical reaction, leading
to poor braking performance.
ECA22100
• Handle the ABS components with care
since they have been accurately adjusted.
Keep them away from dirt and do not sub-
ject them to shocks.
• Do not push the ON/start switch when re-
moving the hydraulic unit assembly.
• Do not clean with compressed air.
• Do not reuse the brake fluid.
• Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
• Do not allow any brake fluid to contact the
couplers. Brake fluid may damage the cou-
plers and cause bad contacts.
• If the union bolts for the hydraulic unit as-
sembly have been removed, be sure to
tighten them to the specified torque and
bleed the brake system.

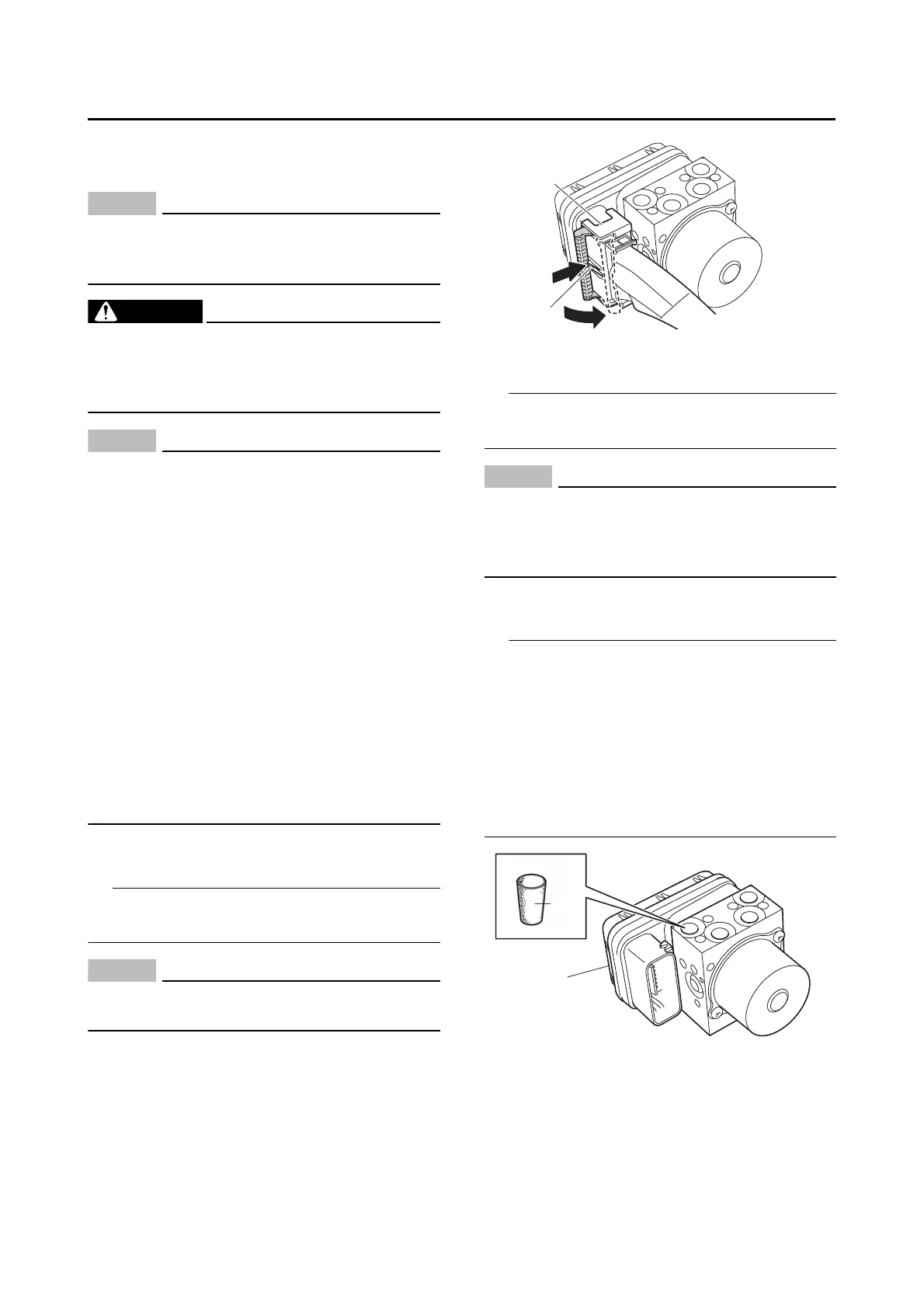

1. Disconnect:
• ABS ECU coupler “1”
While pushing the portion “a” of the ABS ECU
coupler, pull the lock lever up to release the lock.
ECA20080
Do not use a tool to disconnect the ABS ECU
coupler.
2. Remove:
• Brake hose
Do not operate the front brake lever and rear
brake lever while removing the brake hoses.
NOTICE
ECA18251
When removing the brake hoses, cover the
area around the hydraulic unit assembly to
catch any spilt brake fluid. Do not allow the
brake fluid to contact other parts.
3. Remove:
• Hydraulic unit assembly “1”
• To avoid brake fluid leakage and to prevent for-
eign materials from entering the hydraulic unit
assembly, insert a rubber plug “a” or a bolt
(M10 1.00) into each brake hose union bolt
hole.
• When using a bolt, do not tighten the bolt until
the bolt head touches the hydraulic unit. Other-
wise, the brake hose union bolt seating surface
could be deformed.
To Next Page
