Yamaha TMAX 2020 Service Manual

4-16
GENERAL CHASSIS (2)

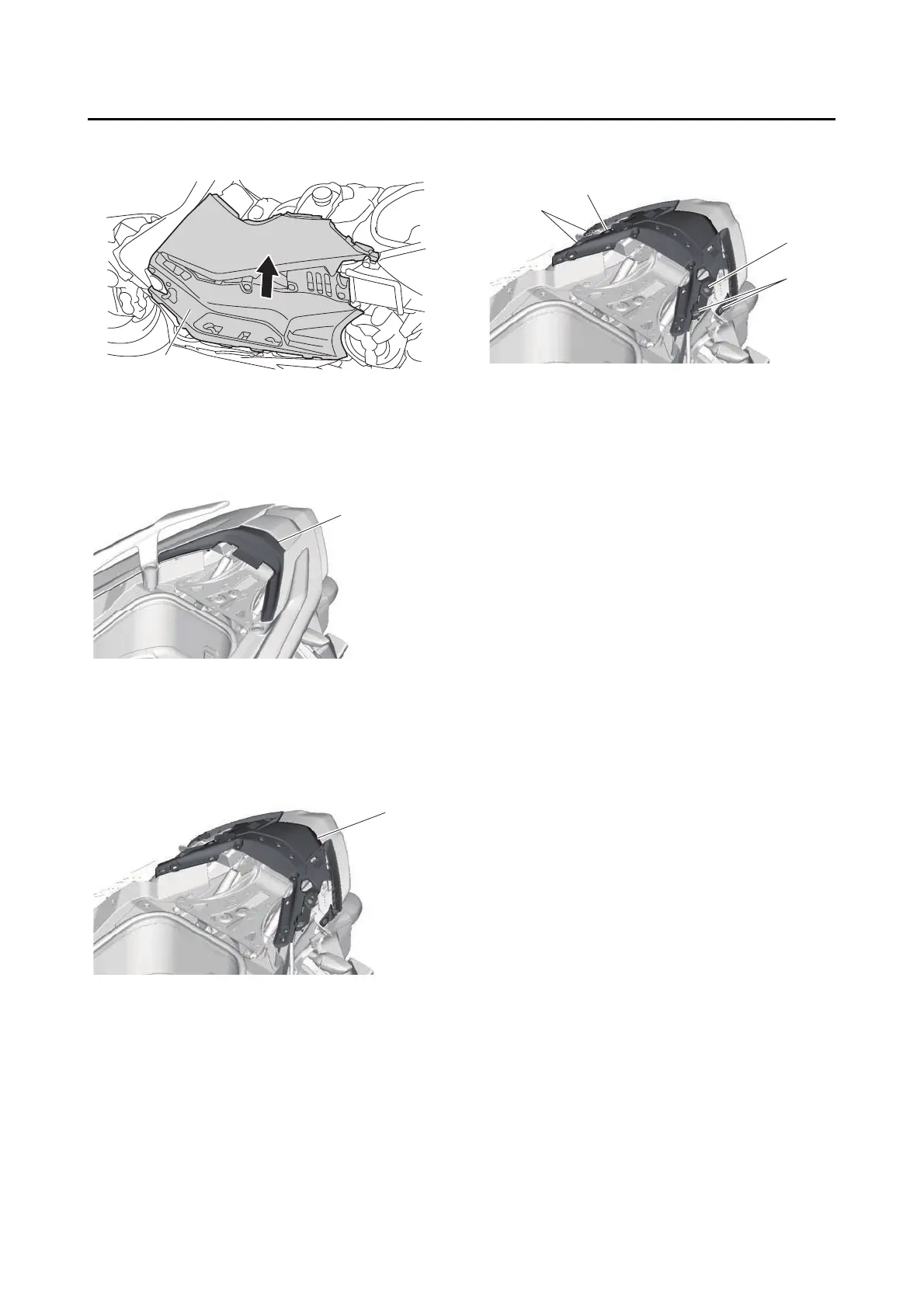

b. Remove the footboard “1” by sliding it to the
upper side.
EAS31193
REMOVING THE REAR COVER
1. Remove:
• Rubber cover “1”
2. Remove:
• Grab bar
• Rear side cowling assembly
“GENERAL CHASSIS (2)” on page 4-11
3. Remove:
• Tail/brake light cover “1”
a. Remove the quick fasteners “2” and screws
“3”.
1
1
1
3
3
2
2

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
