Yamaha TMAX 2020 - Removing the Generator; Removing the Starter Clutch

5-52
GENERATOR AND STARTER CLUTCH
EAS30867

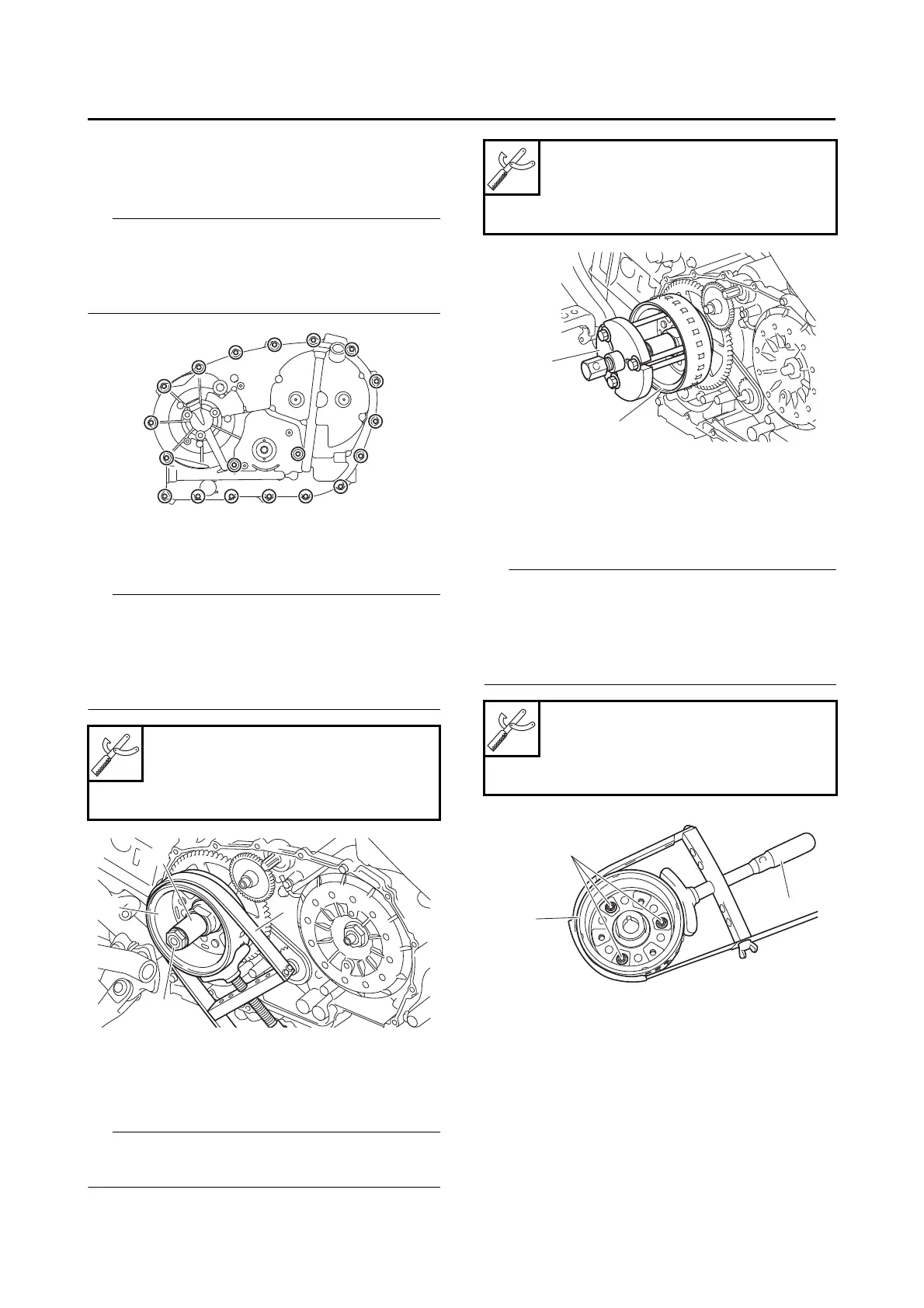

REMOVING THE GENERATOR
1. Remove:
• Generator cover
TIP
Loosen each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern.
After all of the bolts are fully loosened, remove
them.
2. Remove:
• Generator rotor nut “1”
• Spacer “2”
TIP
• While holding the generator rotor “3” with the
sheave holder “4”, loosen the generator rotor
nut.
• Do not allow the sheave holder to touch the
projection on the generator rotor.
3. Remove:
• Generator rotor “1”
(with the flywheel puller “2”)
• Woodruff key
TIP
Make sure the flywheel puller is centered over
the generator rotor.
EAS30868
REMOVING THE STARTER CLUTCH
1. Remove:
• Starter clutch bolt “1”
• Starter clutch
TIP
• While holding the generator rotor “2” with the
sheave holder “3”, remove the starter clutch
bolts.
• Do not allow the sheave holder to touch the
projection on the generator rotor.
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
4
2
1
3
Flywheel puller
90890-01362
Heavy duty puller
YU-33270-B
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
2
1
1
2
3
