Yamaha TMAX 2020 Service Manual

4-81
FRONT FORK
EAS20034
FRONT FORK

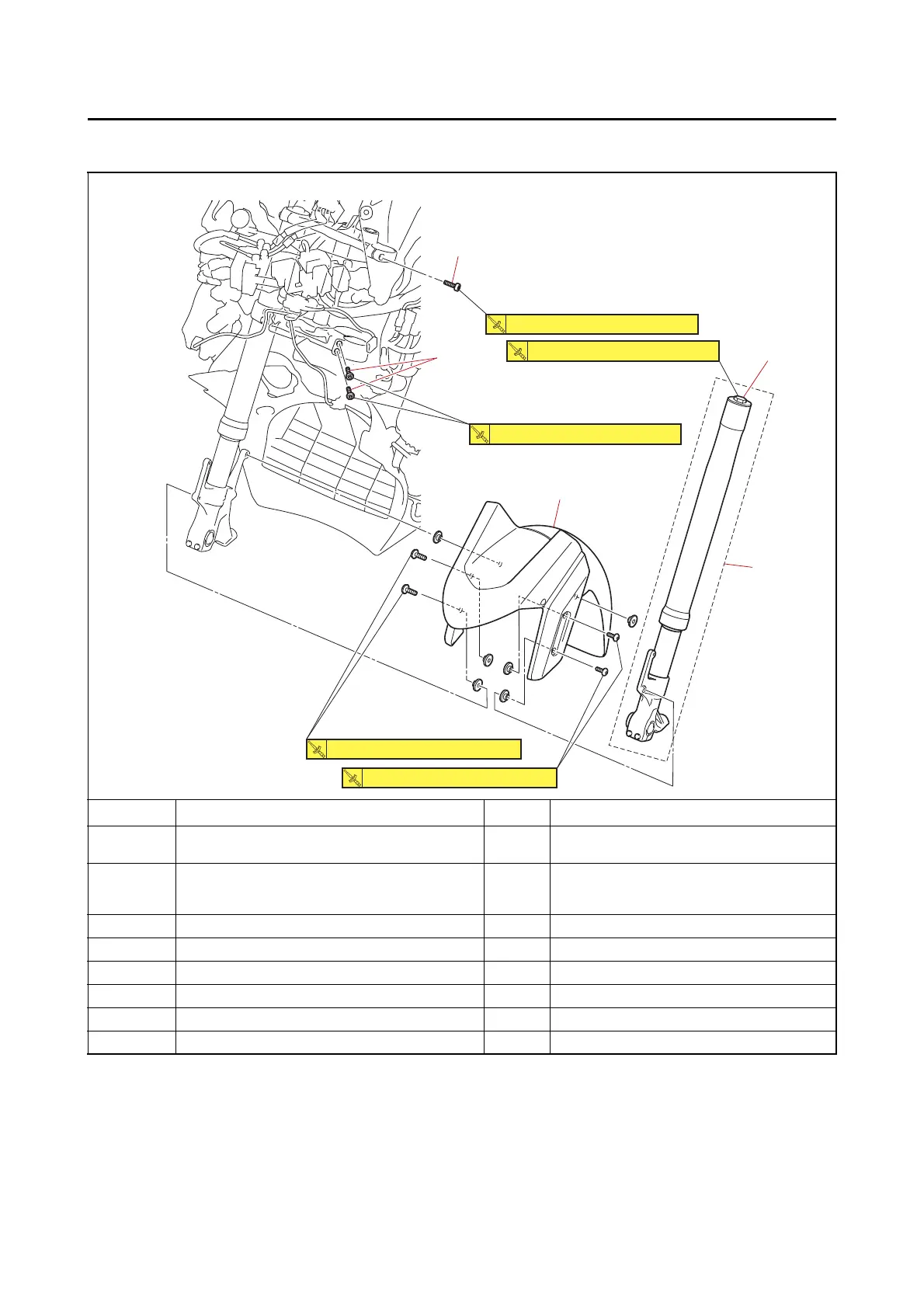

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Front wheel Refer to “FRONT WHEEL” on page 4-22.
1 Front fender 1
2 Upper bracket pinch bolt 1 Loosen.
3 Cap bolt 1 Loosen.
4 Lower bracket pinch bolt 2 Loosen.
5 Front fork leg 1
1
2
4
3
5
14 N・m (1.4 kgf・m, 10 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
