Yamaha TMAX 2020 Service Manual

9-20
CRUISE CONTROL SYSTEM (for XP560D)
EAS32876

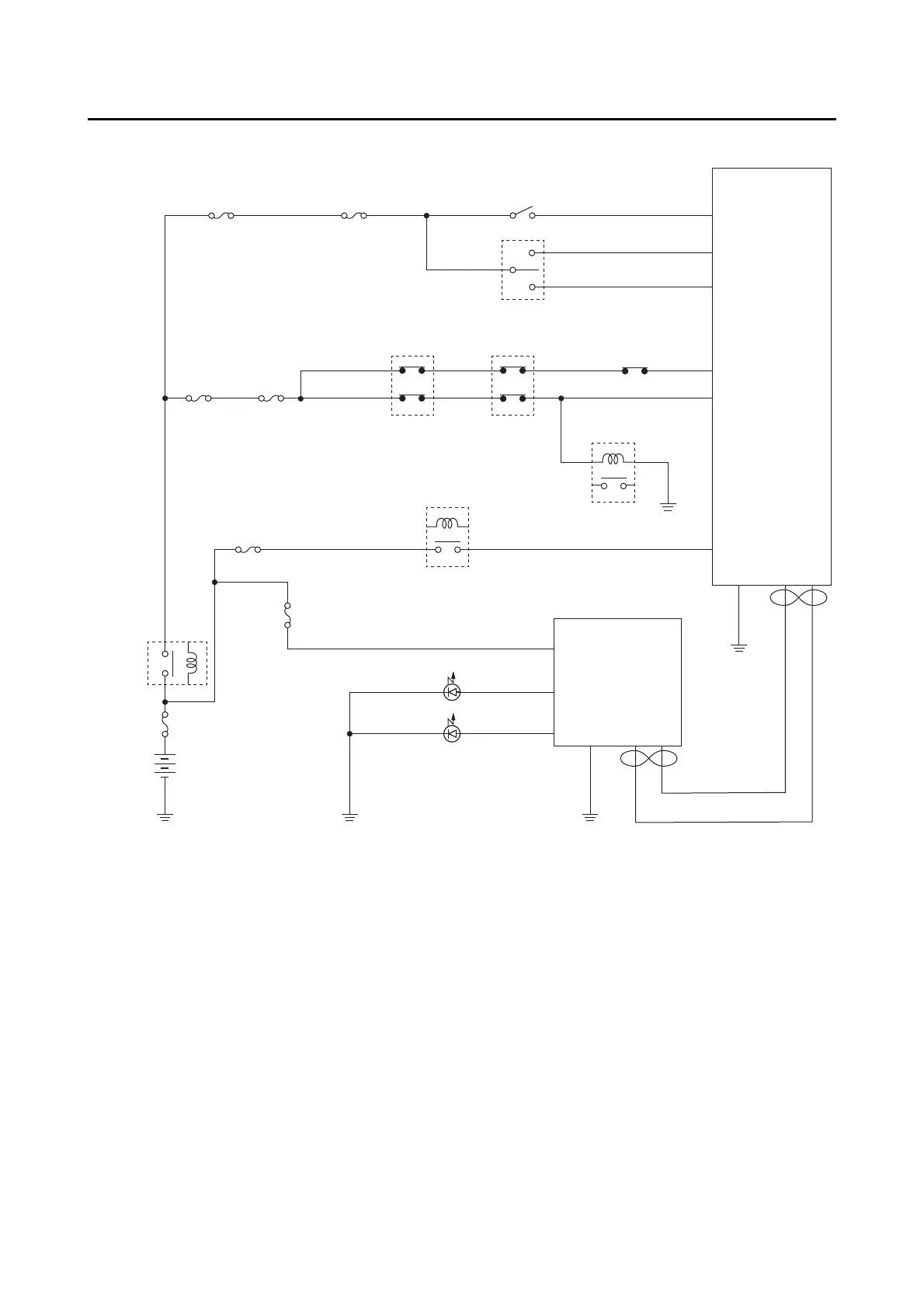

CRUISE CONTROL CIRCUIT OPERATION
1. Battery
2. Main
fuse
3. Ignition
system
relay
4. Backup
fuse
5. Fuel injection
system fuse
6. Signaling
system
fuse
7. Brake
light
fuse
8. Ignition
fuse
9. Cruise control
system fuse
10.Cruise control
power switch
11.Cruise control
setting switch
12.Front brake
light switch
13.Rear brake
light switch
15.Brake light
relay
16.Fuel injection
system relay
18.Multi-function
meter
14.Grip
cancel
switch
17.ECU (Engine
Control Unit)
19. Cruise control system indicator light
20. Cruise control setting indicator light
1. Battery
2. Main fuse
3. Ignition system relay
4. Backup fuse
5. Fuel injection system fuse
6. Signaling system fuse
7. Brake light fuse
8. Ignition fuse
9. Cruise control system fuse
10. Cruise control power switch
11. Cruise control setting switch
12. Front brake light switch
13. Rear brake light switch
14. Grip cancel switch
15. Brake light relay
16. Fuel injection system relay
17. ECU (Engine Control Unit)
18. Multi-function meter
19. Cruise control system indicator light
20. Cruise control setting indicator light

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
