CAMSHAFTS
EAS20043
CAMSHAFTS

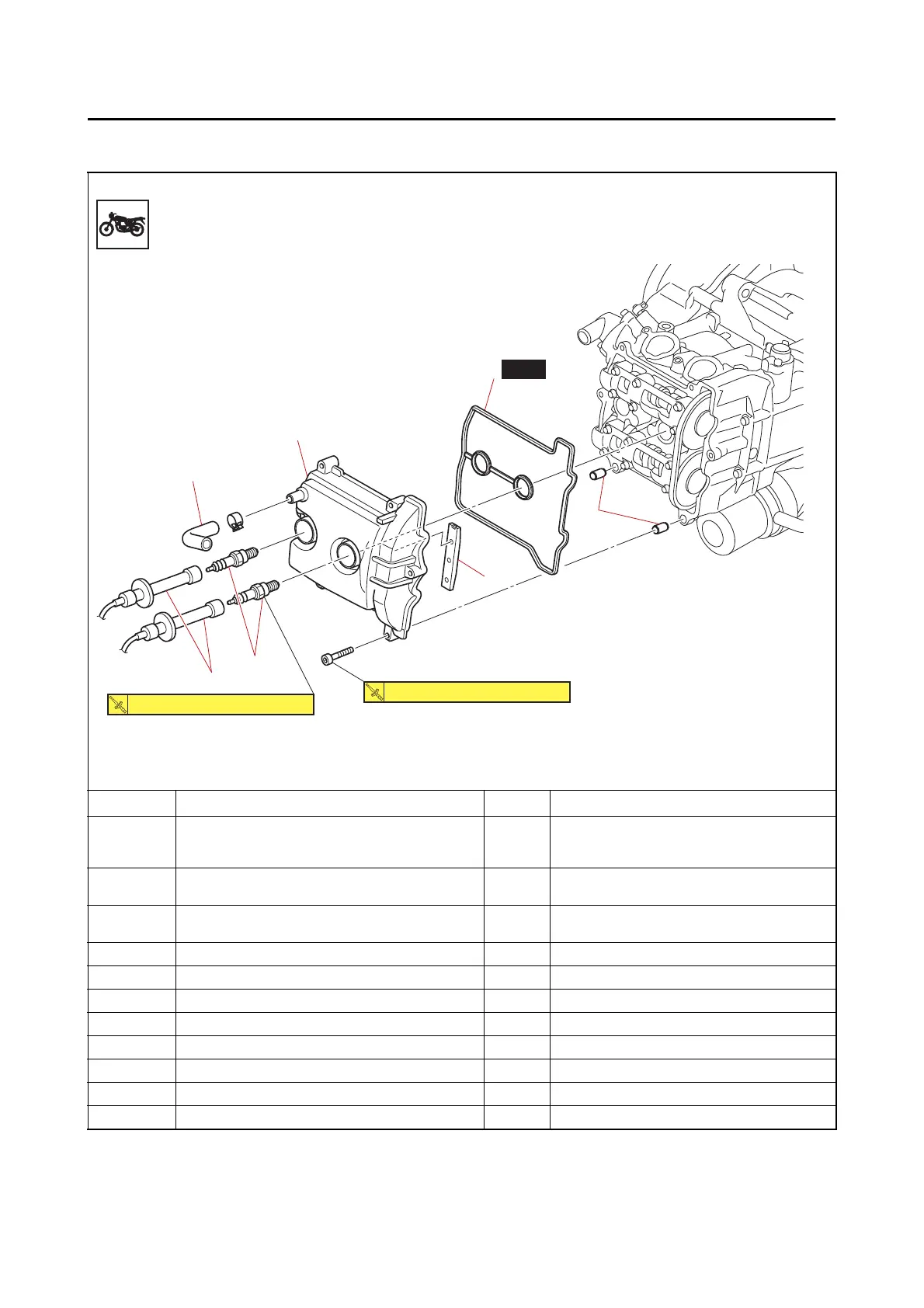

Removing the cylinder head cover
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
Bottom side cowling/Side panel/Radiator cover/
Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Radiator bracket Refer to “RADIATOR” on page 6-3.
1 Spark plug cap 2 Disconnect.
2 Spark plug 2
3 Cylinder head breather hose 1
4 Cylinder head cover 1
5 Cylinder head cover gasket 1
6 Dowel pin 2
7 Timing chain guide (upper side) 1
New
4
3
1
2
7
5
6
(6)
13 N·m (1.3 kgf·m, 9.6 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
