Yamaha TMAX 2020 Service Manual

4-100
SWINGARM
EAS20037
SWINGARM

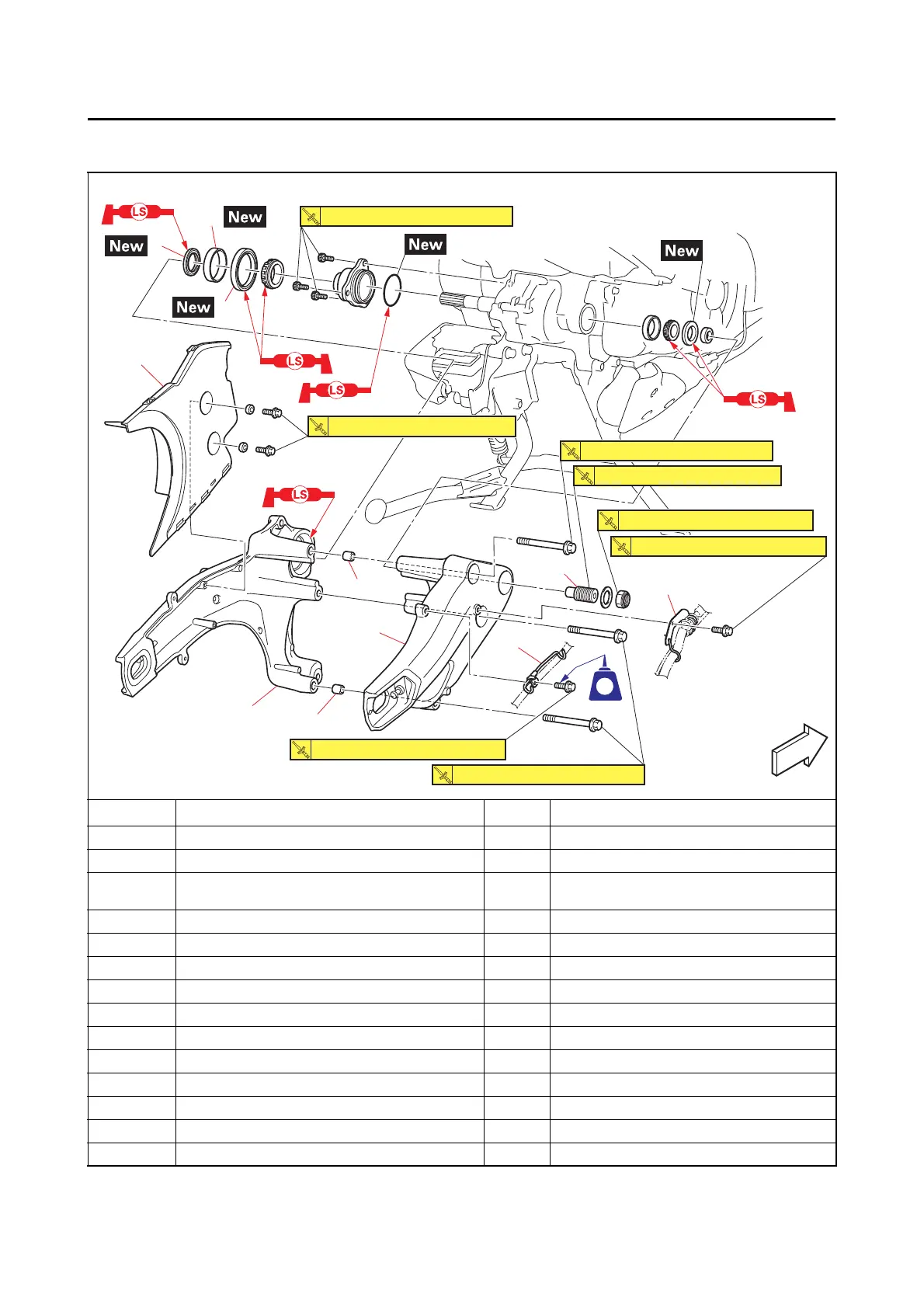

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper/Rear brake lock caliper Refer to “REAR BRAKE” on page 4-50.
Rear wheel Refer to “REAR WHEEL” on page 4-30.
Rear shock absorber assembly
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-96.
Drive belt Refer to “BELT DRIVE” on page 4-94.
1Holder 1
2Holder 1
3 Drive belt inner guard 1
4 Swingarm (left) 1
5 Swingarm (right) 1
6 Dowel pin 2
7 Pivot shaft 1
8 Oil seal 1
9 Oil seal 1
10 Outer race 1
FWDFWD
LT
1
2
3
4
5
6
7
8
9
10
6
7 N・m (0.7 kgf・m, 5.2 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
40 N・m (4.0 kgf・m, 30 lb・ft)
40 N・m (4.0 kgf・m, 30 lb・ft)
100 N・m (10 kgf・m, 74 lb・ft)

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
