Yamaha TMAX 2020 Service Manual

8-109
ELECTRICAL COMPONENTS
EAS32448

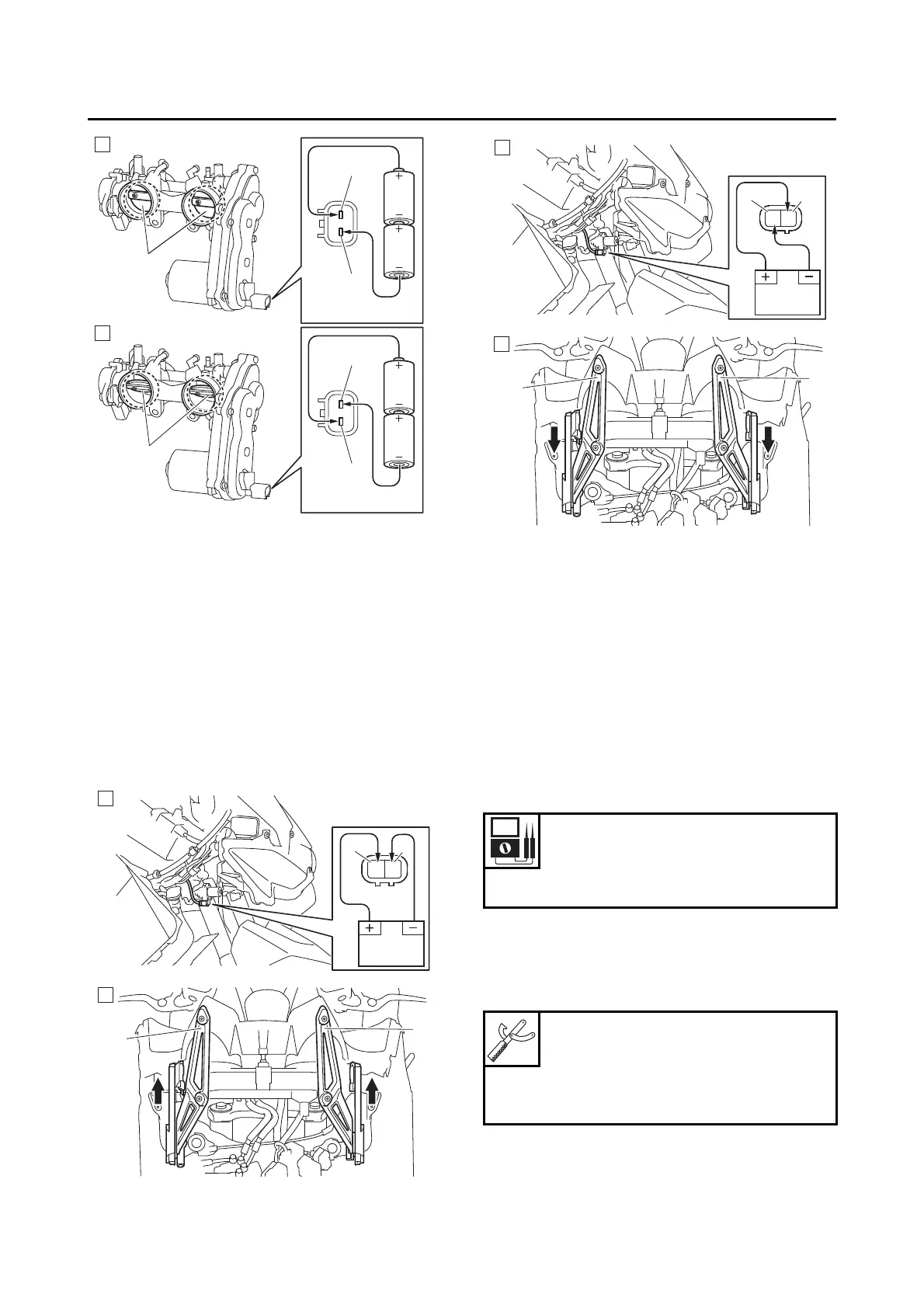

CHECKING THE WINDSHIELD DRIVE UNIT
(for XP560D)
1. Check:
• Windshield drive unit operation
Faulty/rough movement  Replace.
a. Disconnect the windshield drive unit cou-
pler from the wire harness.
b. Connect the battery (DC V) to the wind-
shield drive unit terminals “1” as shown.
EAS31016
CHECKING THE GRIP WARMERS (for
XP560D)
The following procedure applies to both of the
grip warmers.
1. Check:
• Grip warmer resistance
Out of specification  Replace the grip
warmer.
a. Disconnect the grip warmer coupler from
the wire harness.
b. Connect the digital circuit tester () to the
grip warmer coupler as shown.
A. Check that the throttle valves “2” fully close.
B. Check that the throttle valves “2” open.
1
1
3V
2
A
1
1
3V
1
3V
B
2
RBr
A
1
1
A
2
2
A. Check that the windshield drive unit arms
“2” up.
B. Check that the windshield drive unit arms
“2” down.
Grip warmer resistance (L)
1.2–1.4 
Grip warmer resistance (R)
1.2–1.5 
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
B
RBr
1
1
B
2
2

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
