Yamaha TMAX 2020 Service Manual

5-61

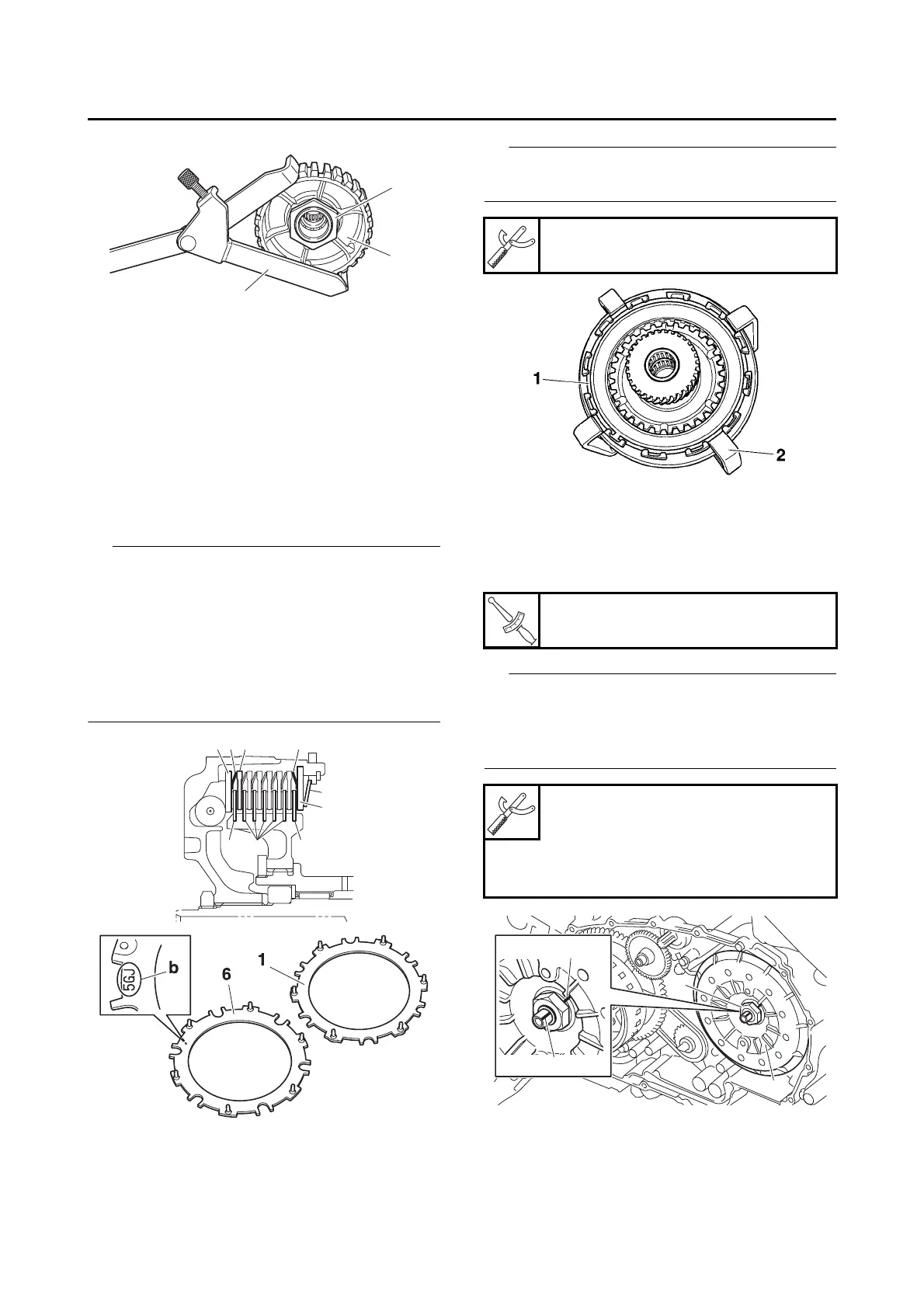

CLUTCH
3. Install:
• Clutch weight
• Thrust plate “1”
• Clutch spring
• Clutch damper spring “2”
• Clutch plate 2 “3”
• Friction plate “4”
• Clutch plate 1 “5”
• Pressure plate “6”
• Clutch spring plate “7”
TIP
• Clutch damper spring “a” installed at the end
must be installed backwards.
• Assemble the clutch plate 2 so their friction sur-
faces contact the pressure plate and the thrust
plate.
• The pressure plate “6” and thrust plate “1” can
be identified by punch mark “b” on the pressure
plate.
4. Install:
• Clip “1”
TIP
While compressing the clutch springs with the
clutch spring compressor “2”, install the clip.
EAS30363
INSTALLING THE CLUTCH
1. Install:
• Clutch assembly “1”
• Clutch assembly nut “2”
TIP
• Align the “a” and “b” during reassembly.
• While holding the clutch assembly with the ro-
tor holding tool “3”, tighten the clutch assembly
nut.
1
2
3
124 a
7
6
533
Clutch spring compressor
90890-01482
Clutch assembly nut
65 N·m (6.5 kgf·m, 48 lb·ft)
Rotor holding tool
90890-01235
Universal magneto and rotor
holder
YU-01235
T
R
.
.
2
1
a
b

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
