Yamaha TMAX 2020 Service Manual

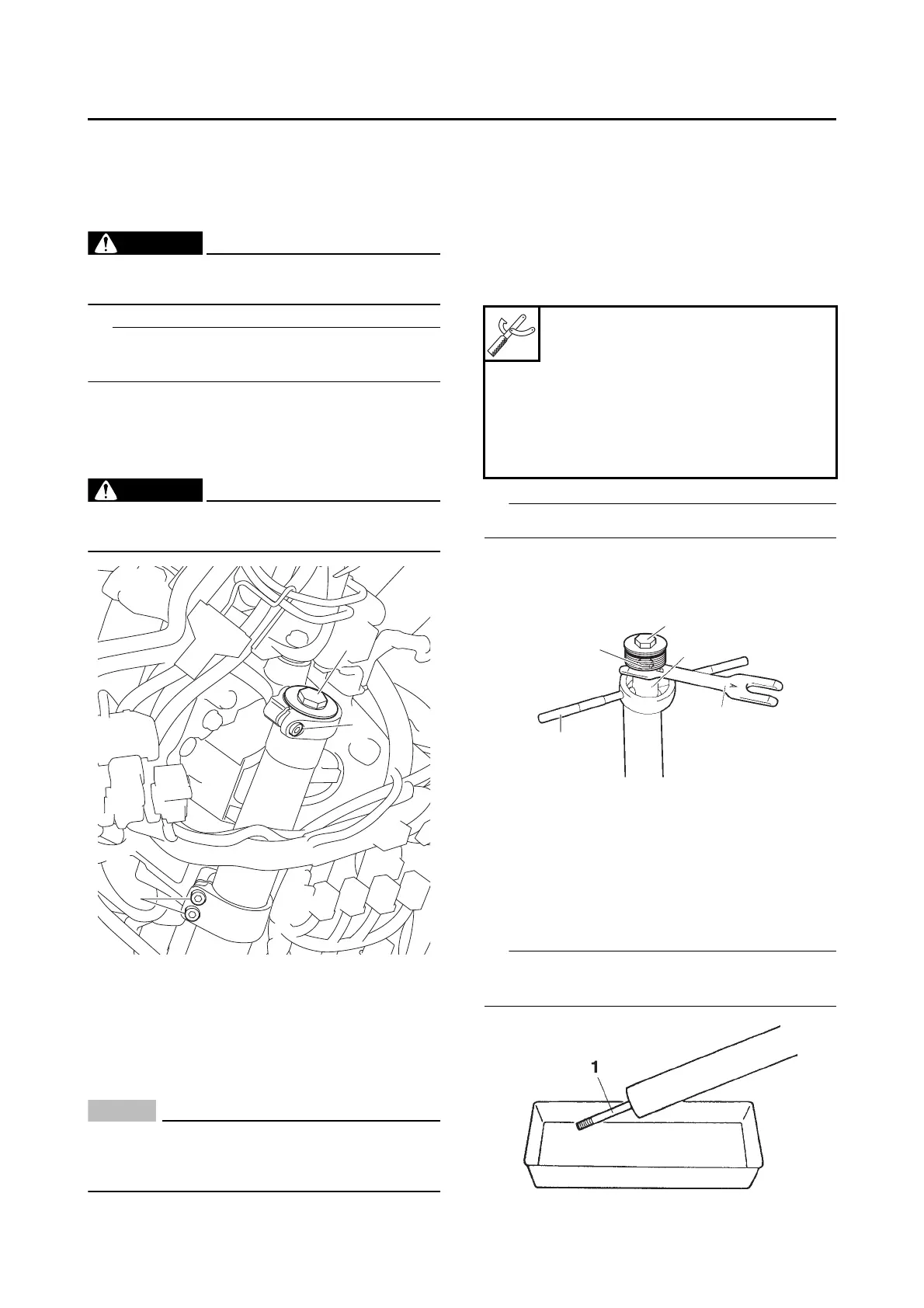

4-83
FRONT FORK
EAS30206
REMOVING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
TIP
Place the vehicle on the centerstand so that the
front wheel is elevated.
2. Loosen:
• Upper bracket pinch bolt “1”
• Cap bolt “2”
• Lower bracket pinch bolt “3”
WARNING
EWA13640
Before loosening the upper and lower brack-
et pinch bolts, support the front fork leg.
3. Remove:
• Front fork leg
EAS30207
DISASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
NOTICE
ECA22020
Because the left and right damper rod as-
semblies are different, be sure to install them
in the correct positions.
1. Remove:
• Cap bolt “1”
• Spacer “2”
• Damper rod locknut “3”
a. Press down on the spacer with the fork
spring compressor “4”.
b. Install the rod holder “5” between the damp-
er rod locknut “3” and the spacer “2”.
TIP
Use the side of the rod holder that is marked “B”.
c. Hold the cap bolt “1” and loosen the damper
rod locknut “3”.
d. Remove the cap bolt.
e. Remove the rod holder and fork spring
compressor.
f. Remove the spacer and damper rod lock-
nut.
2. Drain:
• Fork oil
TIP
Stroke the damper rod assembly “1” several
times while draining the fork oil.
2
1
3
Fork spring compressor
90890-01441
Fork spring compressor
YM-01441
Rod holder
90890-01434
Damper rod holder double ended
YM-01434
2
1
5
4
3
G088919

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
