Yamaha TMAX 2020 Service Manual

4-89
FRONT FORK
EAS30210
INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Install:
• Front fork leg
Temporarily tighten the upper and lower
bracket pinch bolts.
TIP
Make sure the outer tube is flush with the top of
the upper bracket.

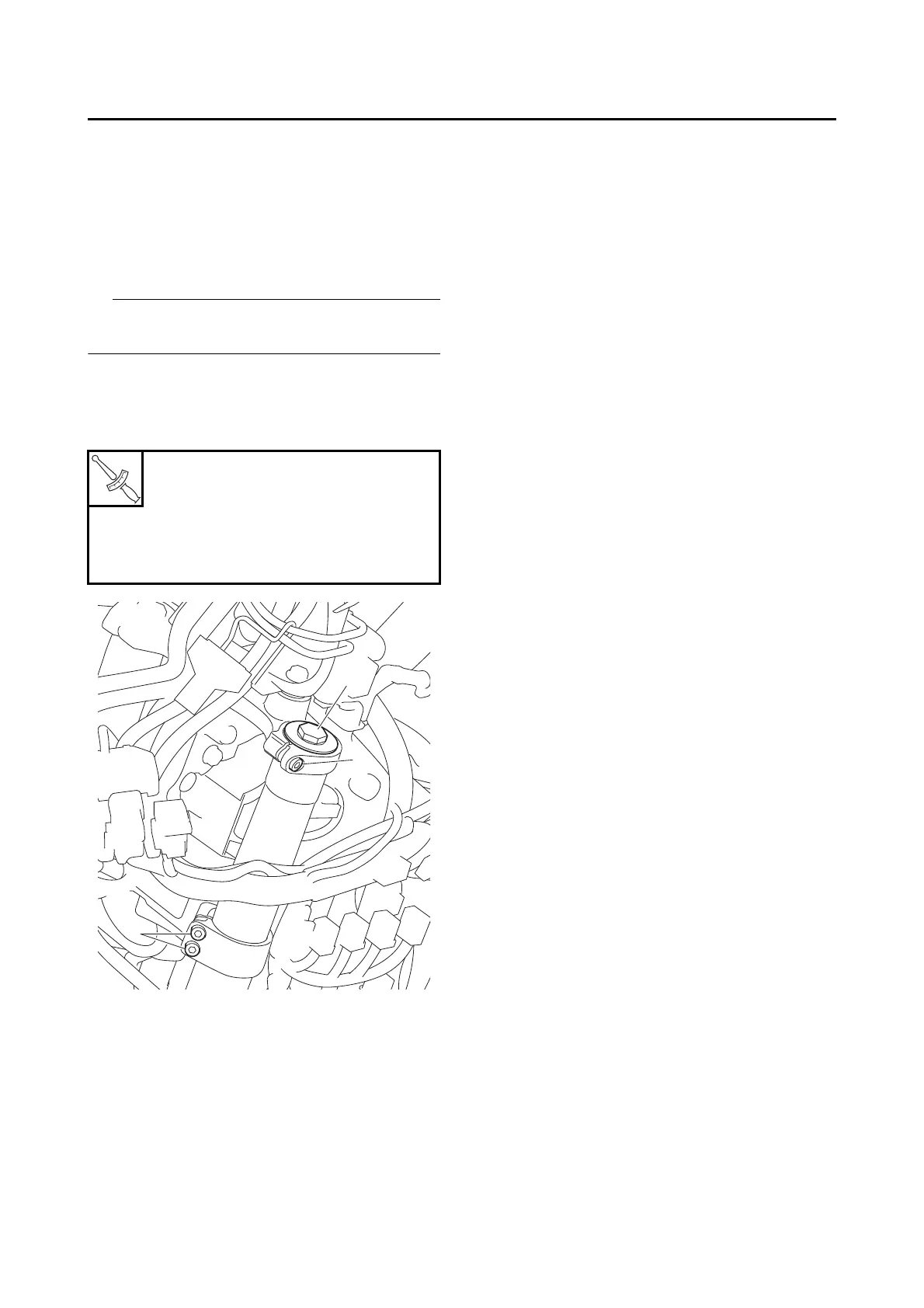

2. Tighten:
• Lower bracket pinch bolt “1”
• Cap bolt “2”
• Upper bracket pinch bolt “3”
Lower bracket pinch bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
Front fork cap bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
Upper bracket pinch bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
T
R
.
.
2
3
1

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
