Yamaha TMAX 2020 Service Manual

5-1
LUBRICATION SYSTEM CHART AND DIAGRAMS
EAS20298
LUBRICATION SYSTEM CHART
AND DIAGRAMS
EAS32362

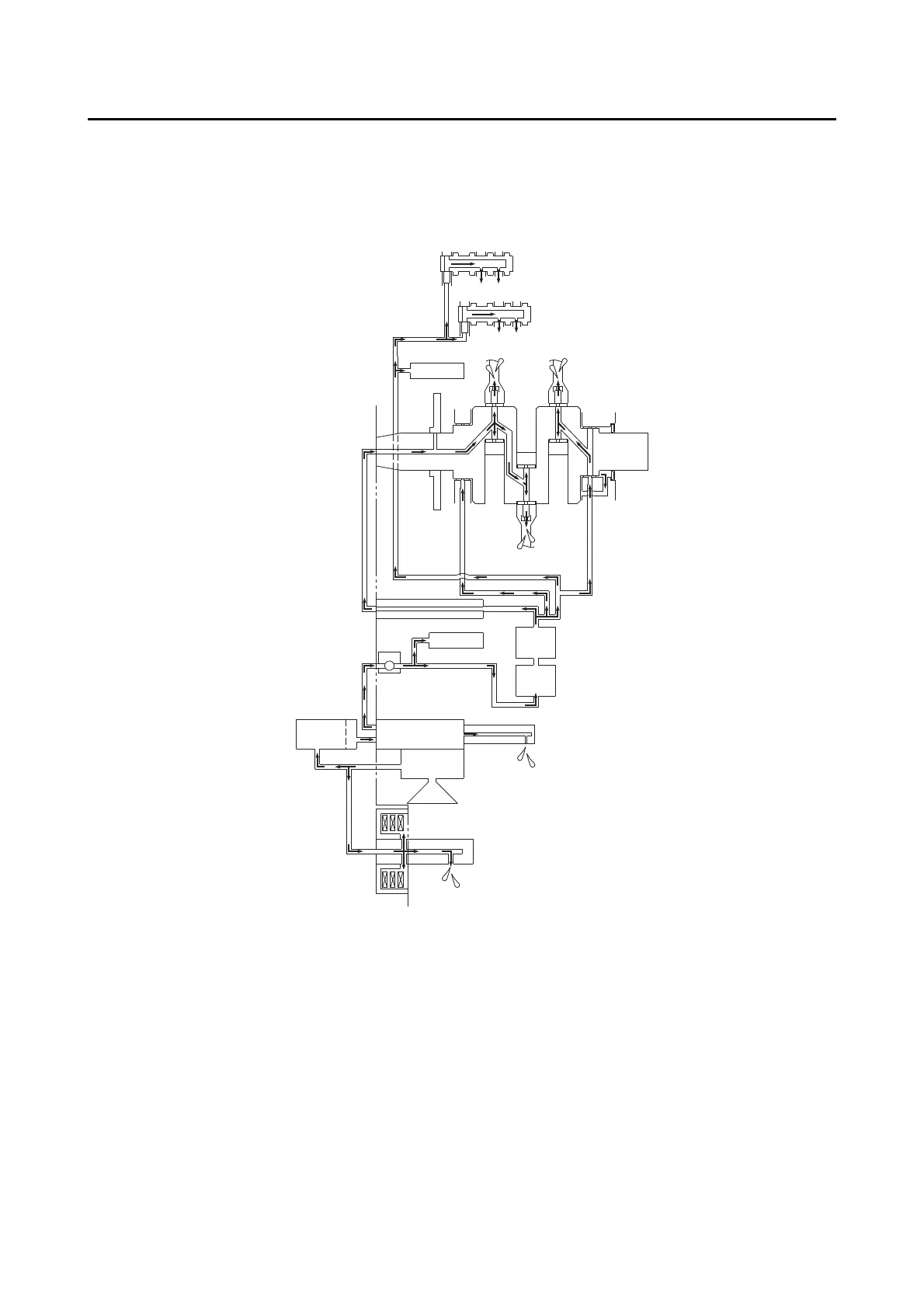

ENGINE OIL LUBRICATION CHART
1
2
3
4545
7
6
8 9
10
11
12
13
14
15 16 17
18
19
20
22 23
24
21
1. Intake camshaft
2. Exhaust camshaft
3. Timing chain tensioner
4. Connecting rod
5. To piston
6. Starter clutch gear
7. Crankshaft
8. Balancer connecting rod
9. To balancer piston
10. Oil pipe
11. Check valve
12. Relief valve
13. Oil filter
14. Oil cooler
15. Oil tank
16. Oil strainer
17. Feed pump
18. Oil delivery pipe
19. Scavenge pump
20. Oil strainer
21. To starter idle gear
22. Clutch
23. Secondary shaft
24. To transmission

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
