3-30
PERIODIC MAINTENANCE
Below the minimum level mark Remove
the left footboard mat, coolant reservoir cap
access panel “1”, and coolant reservoir cap,
and then add the recommended coolant to
the proper level.
ECA13470
• Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is
used instead of coolant check, and if nec-
essary, correct the antifreeze concentra-
tion of the coolant.
• Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Check:
• Coolant level
Before checking the coolant level, wait a few
minutes until it settles.
EAS30812

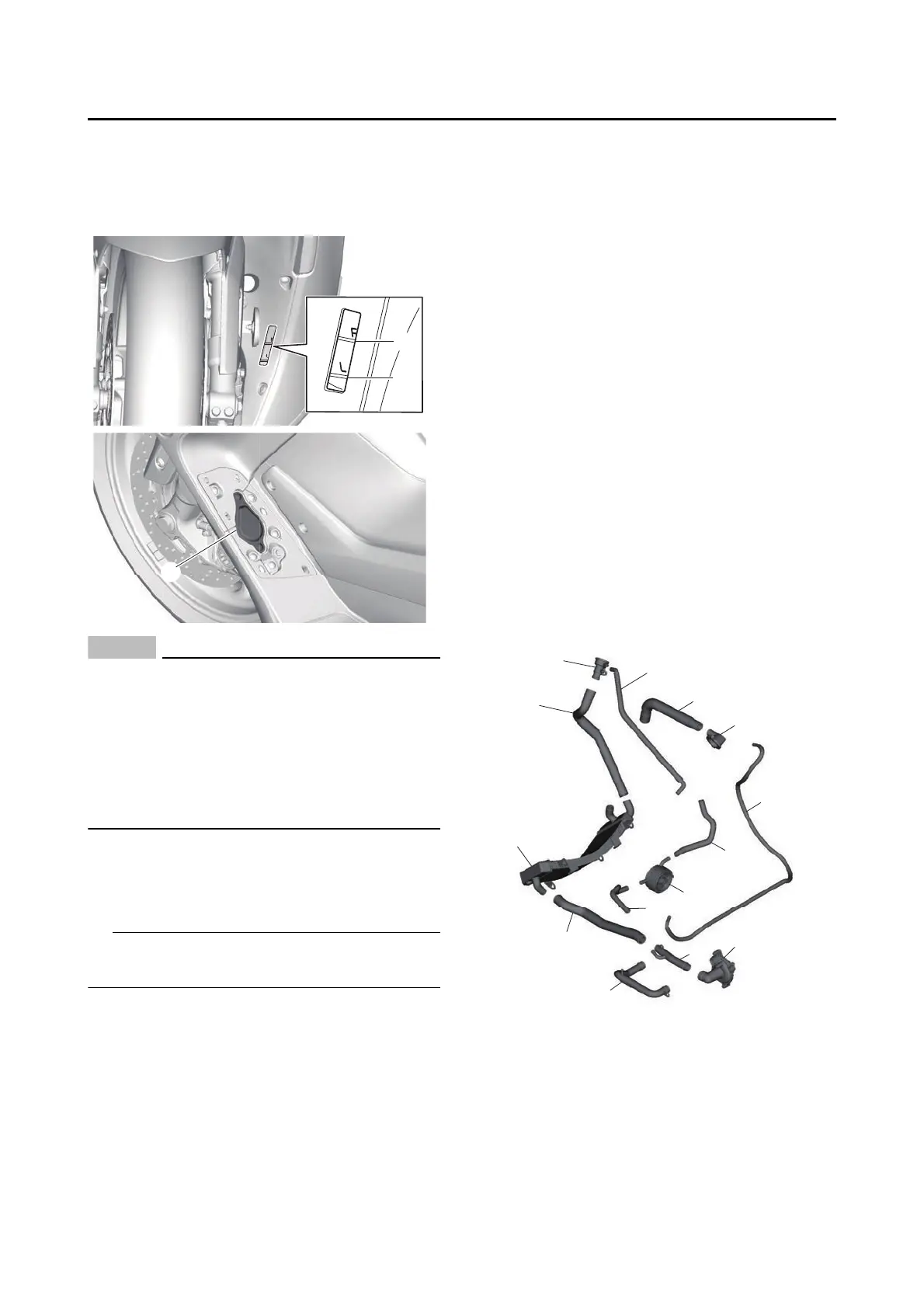

CHECKING THE COOLING SYSTEM
1. Remove:
• Bottom side cowling
• Side panel
• Radiator cover
• Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
• Center cover
• Fuel tank cover assembly
• Side cover
• Rear side cowling assembly
• Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
2. Check:
• Radiator “1”
• Radiator inlet hose “2”
• Radiator outlet hose “3”
• Radiator filler pipe “4”
• Radiator filler hose “5”
• Oil cooler outlet hose “6”
• Oil cooler inlet hose “7”
• Oil cooler “8”
• Thermostat housing “9”
• Cooling system air bleed hose “10”
• Coolant reservoir hose “11”
• Water pump “12”
• Water pump inlet pipe “13”
• Water pump outlet pipe “14”
Cracks/damage Replace.
Refer to “RADIATOR” on page 6-3, “THER-
MOSTAT” on page 6-9 and “WATER PUMP”
on page 6-11.
3. Install:
• Footboard
• Rear side cowling assembly
• Side cover
• Fuel tank cover assembly
• Center cover
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
• Bottom center cowling
