4-90
STEERING HEAD
EAS20035

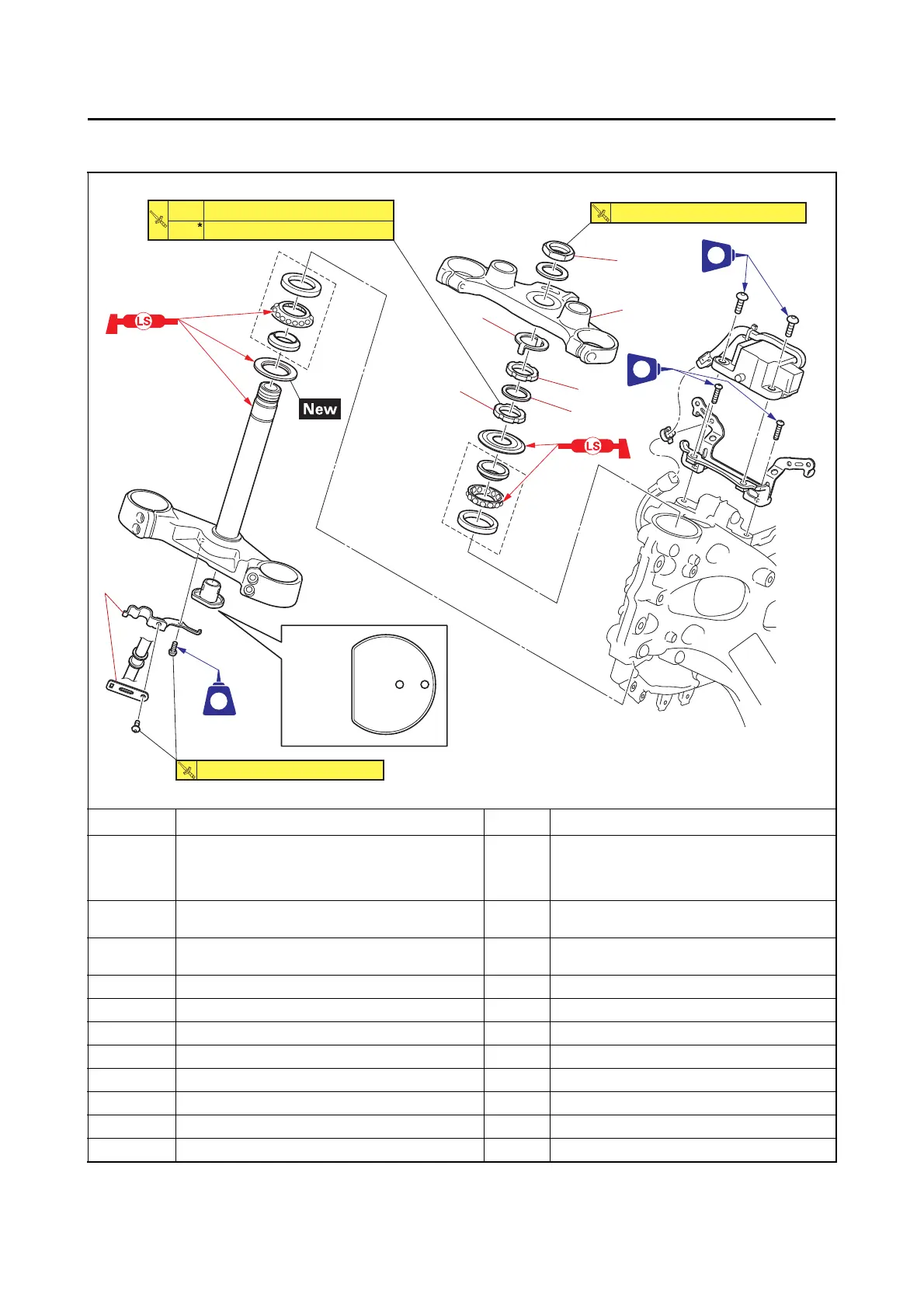

STEERING HEAD
Removing the lower bracket
*Loosen the lower ring nut completely, and then tighten it to specification.
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly/Leg
shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Rear
side cowling assembly/Side cover/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Handlebar cover/Handlebar/Lower handlebar
holder
Refer to “HANDLEBAR” on page 4-74.
Front wheel Refer to “FRONT WHEEL” on page 4-22.
1 Bracket 2
2 Steering stem nut 1
3 Upper bracket 1
4 Lock washer 1
5 Upper ring nut 1
6 Rubber washer 1
7 Lower ring nut 1
FWD
LT
LT
LT
1
2
3
4
5
6
7
7 N・m (0.7 kgf・m, 5.2 lb・ft)
130 N・m (13 kgf・m, 96 lb・ft)
1st
2nd
52 N・m (5.2 kgf・m, 38 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
To Next Page
