Yamaha TMAX 2020 Service Manual

4-8

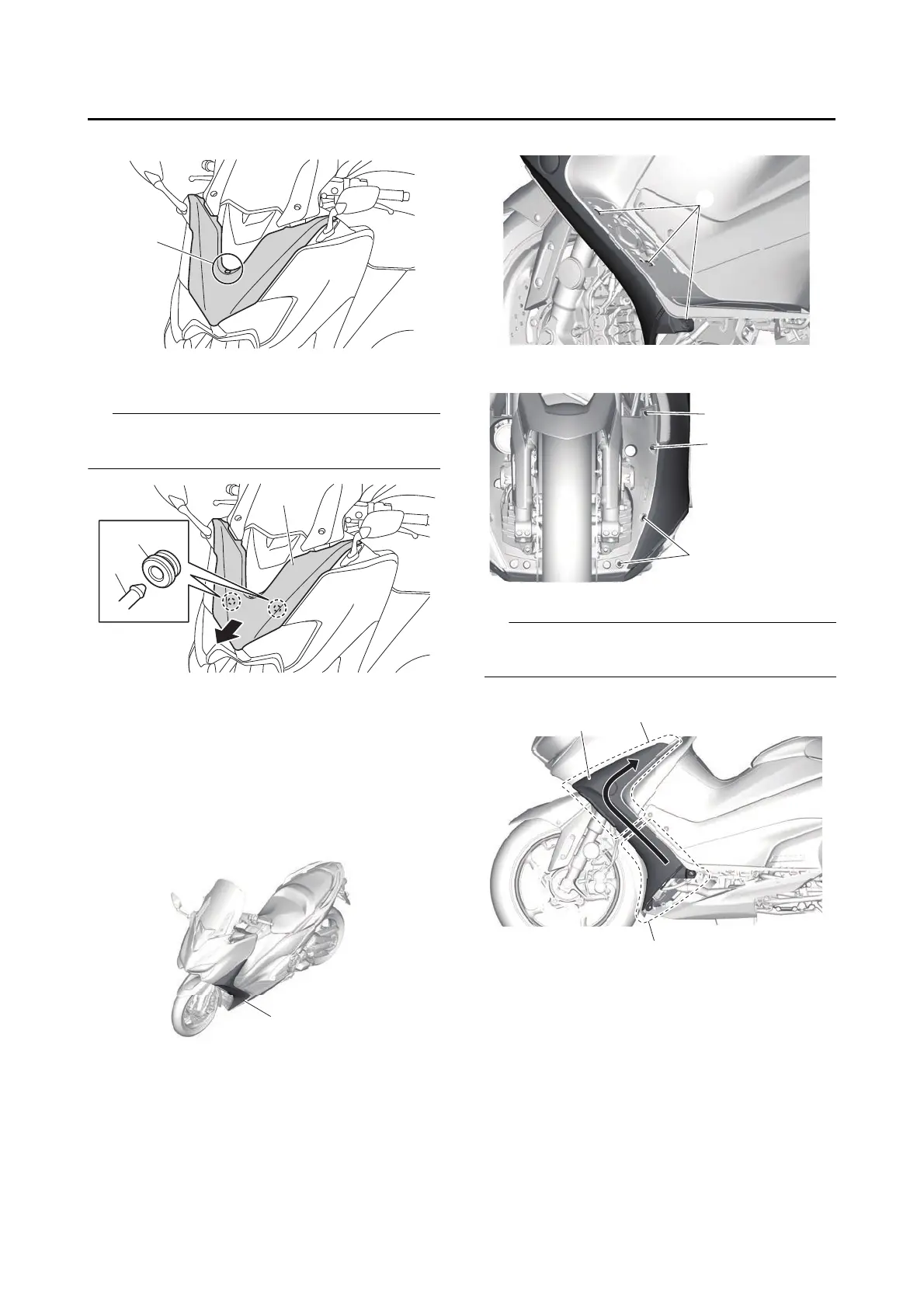

GENERAL CHASSIS (1)
b. Remove the front cover bolt “3”.
c. Remove the front cover “1” by sliding it for-
ward.
TIP
Remove projections “a” on the front cover from
grommets “b”.
EAS30821
REMOVING THE SIDE PANEL
The following procedure applies to both of the
side panels.
1. Remove:
• Bottom side cowling
2. Remove:
• Side panel “1”
a. Remove the side panel screws “2”.
b. Remove the quick fasteners “3” and the
side panel bolt “4”.
c. Remove the side panel “1”.
TIP
Remove the side panel by removing the lower
part “a” and upper part “b”.
3
1
a
b
1
2
3
3
4
a
b
1

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
