8-112
ELECTRICAL COMPONENTS
EAS31553

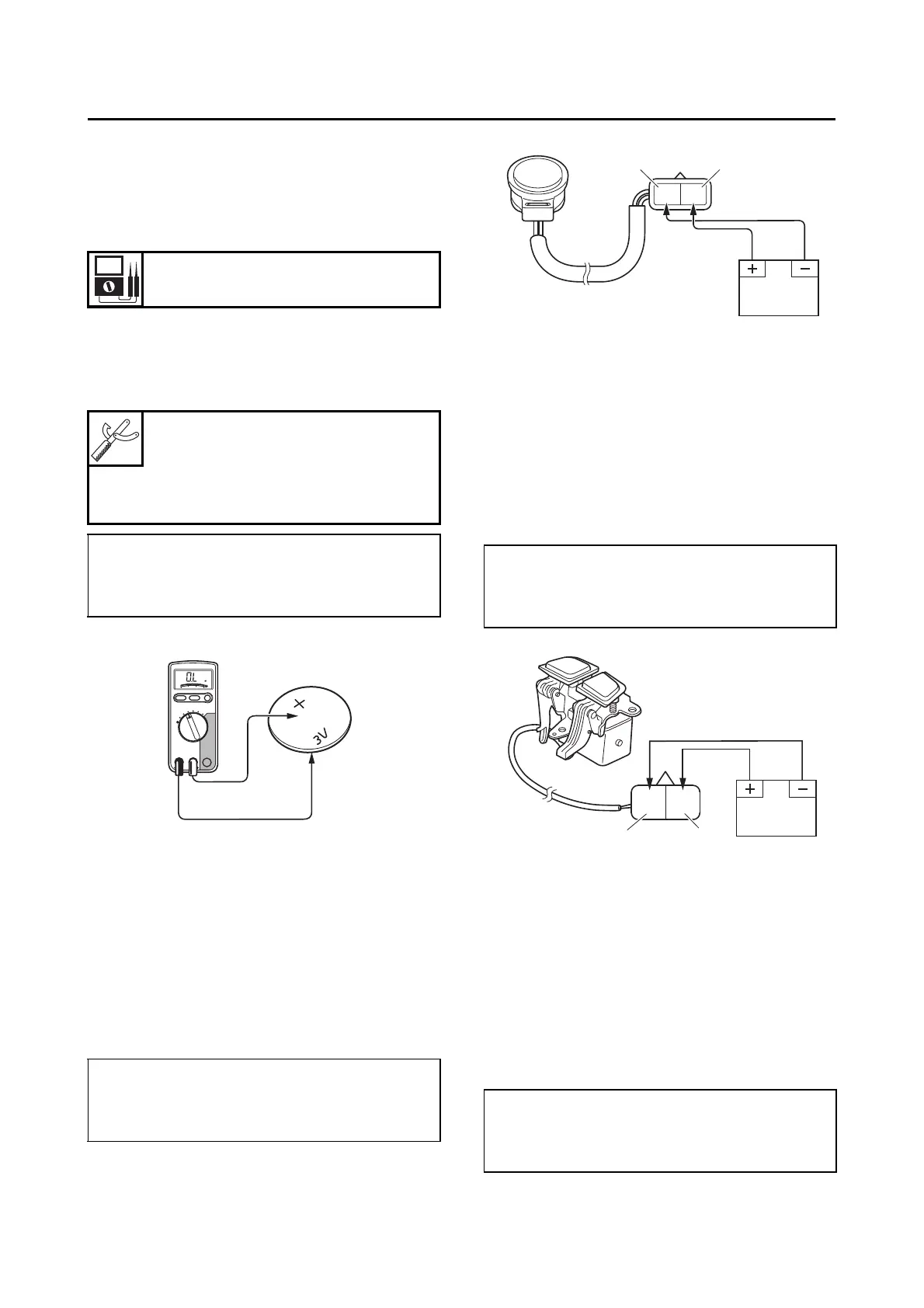

CHECKING THE SMART KEY BATTERY
1. Check:
• Smart key battery voltage
Out of specification Replace the smart key
battery.
a. Remove the smart key battery from the
smart key.
b. Connect the digital circuit tester (DC V) to
the smart key battery as shown.
c. Measure the smart key battery voltage.
EAS31555
CHECKING THE BUZZER
1. Check:
• Buzzer operation
Buzzer does not sound Replace.
a. Disconnect the buzzer coupler from the
wire harness.
b. Connect the battery (12 V) to the buzzer
coupler as shown.
c. Check that the buzzer sounds.
EAS32440
CHECKING THE SEAT/FUEL LID LOCK
SOLENOID
1. Check:
• Seat/fuel lid lock solenoid
Faulty/rough movement Replace.
a. Disconnect the seat/fuel lid lock solenoid
from the wire harness.
b. Connect the battery (DC 12 V) as shown.
c. Check the seat/fuel lid lock solenoid move-
ment.
EAS32450
CHECKING THE STORAGE COMPARTMENT
LID LOCK SOLENOID (for XP560D)
1. Check:
• Storage compartment lid lock solenoid
Faulty/rough movement Replace.
a. Disconnect the storage compartment lid
lock solenoid from the wire harness.
b. Connect the battery (DC 12 V) as shown.
Smart key battery voltage
2.4–3.2 V
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
• Positive tester probe
Positive battery terminal “1”
• Negative tester probe
Negative battery terminal “2”
• Positive battery lead
Yellow “1”
• Negative battery lead
Pink “2”
• Positive battery terminal
Brown “1”
• Negative battery terminal
Red “2”
• Positive battery terminal
Brown “1”
• Negative battery terminal
Black “2”
