Yamaha TMAX 2020 Service Manual

4-96
REAR SHOCK ABSORBER ASSEMBLY
EAS20036

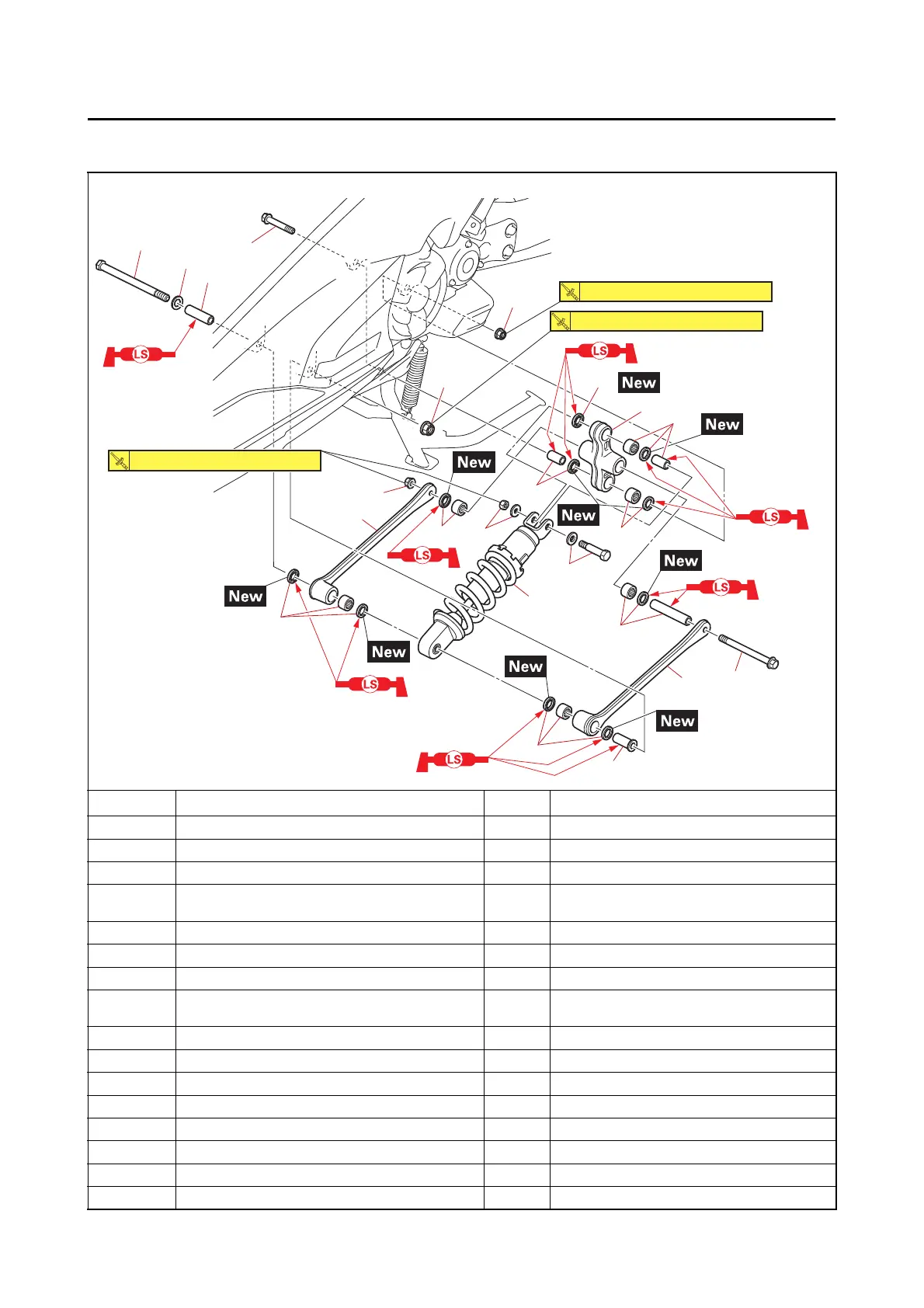

REAR SHOCK ABSORBER ASSEMBLY
Removing the rear shock absorber assembly
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper/Rear brake lock caliper Refer to “REAR BRAKE” on page 4-50.
Rear wheel Refer to “REAR WHEEL” on page 4-30.
1 Relay arm nut/Relay arm bolt 1/1
2
Rear shock absorber assembly lower nut/Rear
shock absorber assembly lower bolt
1/1
3Washer 1
4Collar 1
5Collar 1
6
Rear shock absorber assembly upper nut/Washer/
Rear shock absorber assembly upper bolt
1/2/1
7 Rear shock absorber assembly 1
8 Connecting arm bolt/Connecting arm nut 1/1
9 Connecting arm 2
10 Relay arm 1
11 Collar/Oil seal/Bearing 1/2/1
12 Collar/Oil seal/Bearing 1/2/1
13 Collar/Oil seal/Bearing 1/2/2
14 Oil seal/Bearing 4/2
1
1
2
2
4
6
6
7
5
8
9
8
9
10
11
11
12
12
13
13
14
14
3
50 N・m (5.0 kgf・m, 37 lb・ft)
50 N・m (5.0 kgf・m, 37 lb・ft)
75 N・m (7.5 kgf・m, 55 lb・ft)
