4-64
REAR BRAKE
6. Remove:
•Cap
• Rear brake lock adjusting nut
• Rear brake lock caliper arm
7. Adjust:
• Piston adjusting bolt
Refer to “ASSEMBLING THE REAR BRAKE
LOCK CALIPER” on page 4-65.
8. Install:
• Rear brake lock caliper arm
• Rear brake lock adjusting nut
•Cap
• Rear brake lock pad
Refer to “ASSEMBLING THE REAR BRAKE
LOCK CALIPER” on page 4-65.
9. Install:
• Rear brake lock caliper
• Rear brake lock caliper bolt
• Rear brake lock spring
•Pin
• Rear brake lock cable adjusting nut
10.Adjust:
• Rear brake lock cable length
Refer to “ADJUSTING THE REAR BRAKE
LOCK CABLE” on page 3-17.
EAS31418
REPLACING THE REAR BRAKE LOCK
CABLE
1. Remove:
• Rear brake lock cable
2. Check:
• Rear brake lock cable
Cracks/damage/wear Replace the rear
brake lock cable.
3. Install:
• Rear brake lock cable
EWA13490
Make sure the brake cable is routed properly.
4. Adjust:
• Rear brake lock cable length
a. Adjust the clearance for the rear brake lock
pad.
Refer to “ADJUSTING THE REAR BRAKE
LOCK CABLE” on page 3-17.
b. Activate the rear brake lock cable 10 times.

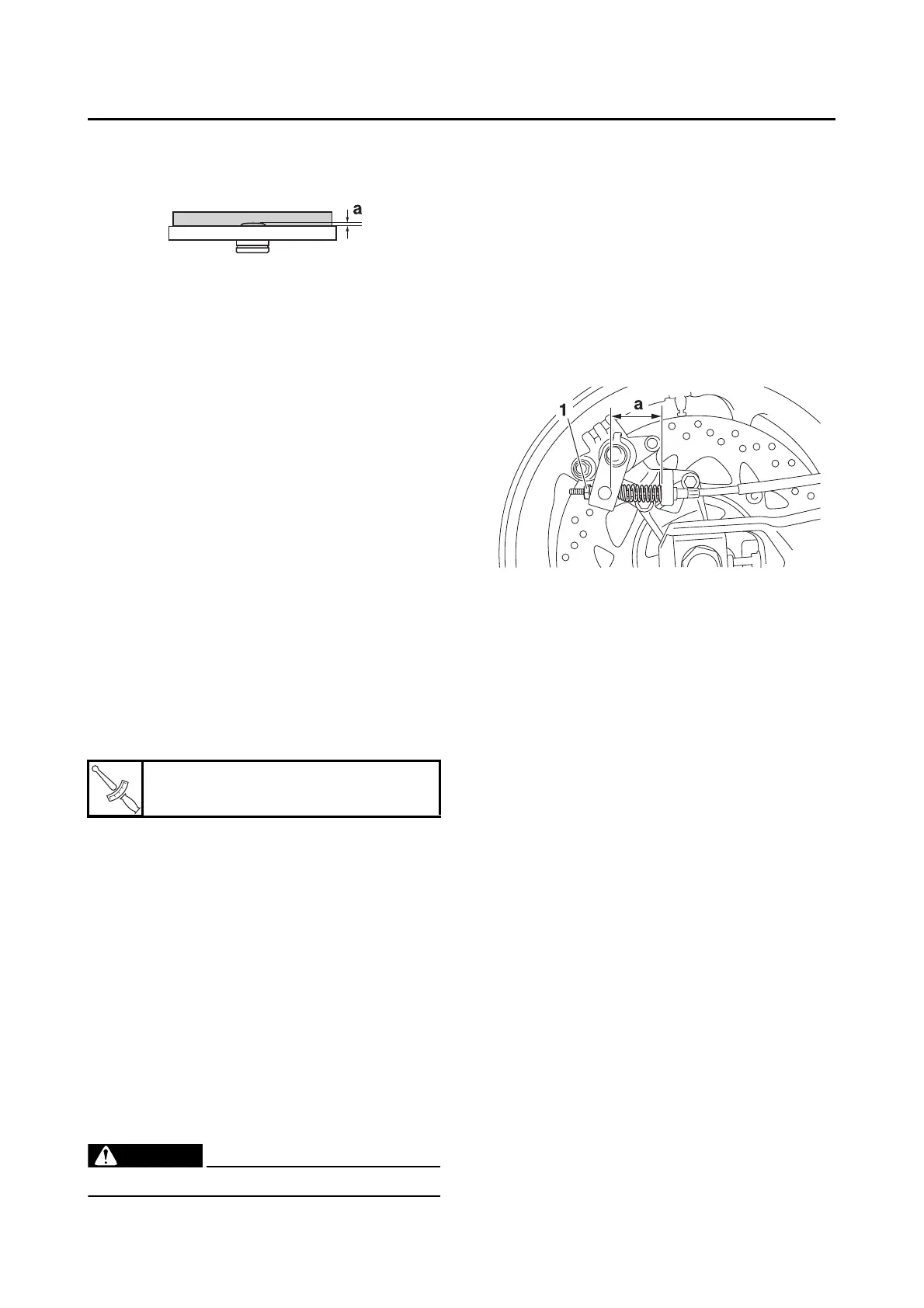

c. Carry out adjustment using rear brake lock
cable adjusting nut “1” so that dimension “a”
is 38–40 mm (1.50–1.57 in).
d. Repeat steps (a) to (c) until dimension “a” is
38–40 mm (1.50–1.57 in).
EAS31419
REMOVING THE REAR BRAKE LOCK
CALIPER
1. Remove:
• Rear brake lock cable adjusting nut
•Pin
• Rear brake lock spring
• Rear brake lock caliper bolt
• Rear brake lock caliper
EAS31420
CHECKING THE REAR BRAKE LOCK
CALIPER
1. Check:
• Rear brake lock caliper arm
• Rear brake lock caliper bracket
• Sleeve
• Rear brake lock caliper
• Locknut
• Shaft L
• Piston adjusting bolt
• Boot
Cracks/damage Replace.
Rear brake lock caliper bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
