Yamaha TMAX 2020 Service Manual

4-74
HANDLEBAR
EAS20033
HANDLEBAR

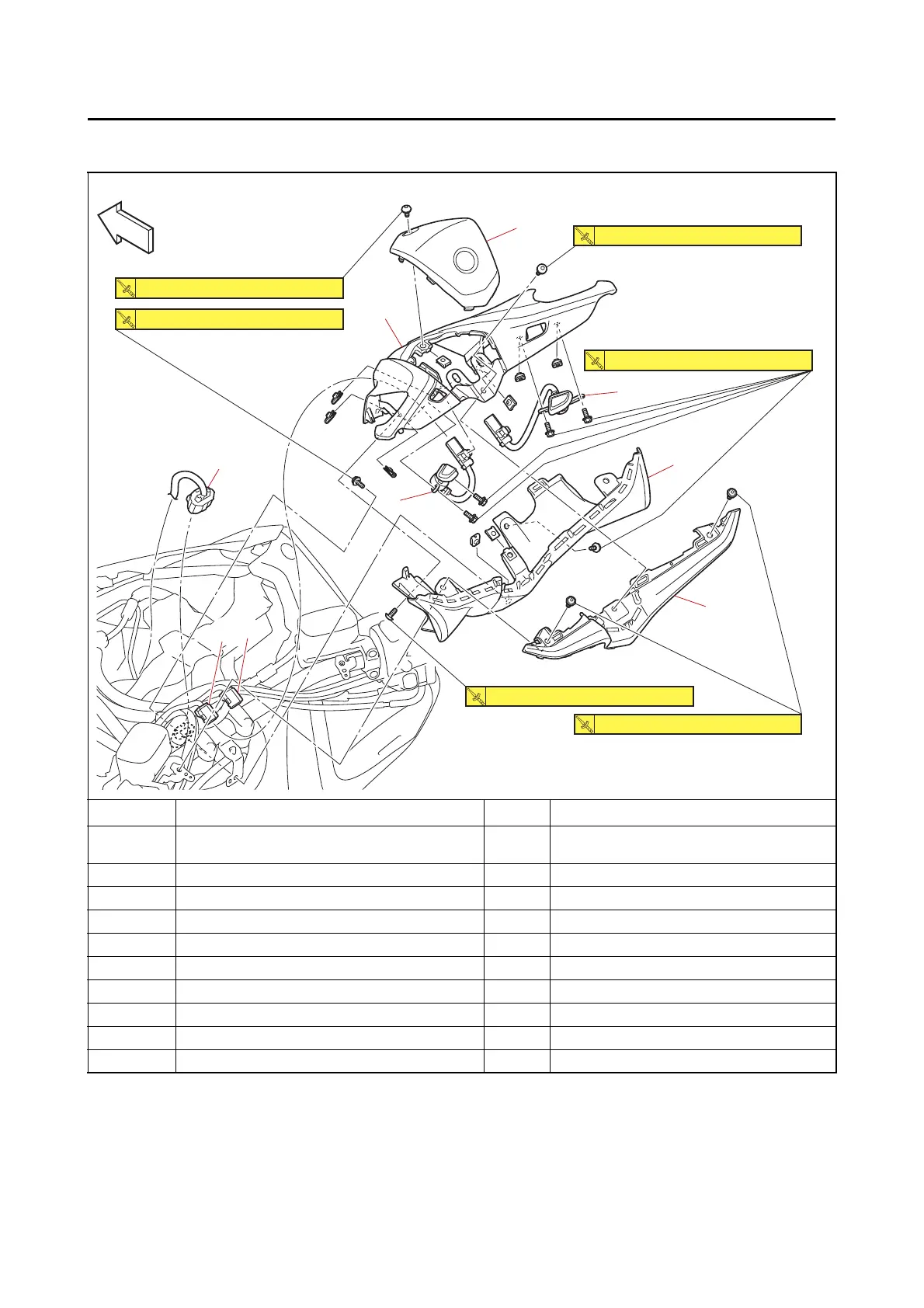

Removing the handlebar cover
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Windshield inner panel/
Meter assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
1 Upper handlebar cover 1
2 Handlebar cover (front) 1
3 Parking/Unlock switch coupler 1 Disconnect.
4 OFF/LOCK switch coupler 1 Disconnect.
5 Lower handlebar cover 1
6 Accelerator position sensor coupler 1 Disconnect.
7 Handlebar cover (rear) 1
8 Parking/Unlock switch 1
9 OFF/LOCK switch 1
FWDFWD
1
2
3 4
5
6
7
8
9
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
