Yamaha TMAX 2020 Service Manual

5-58

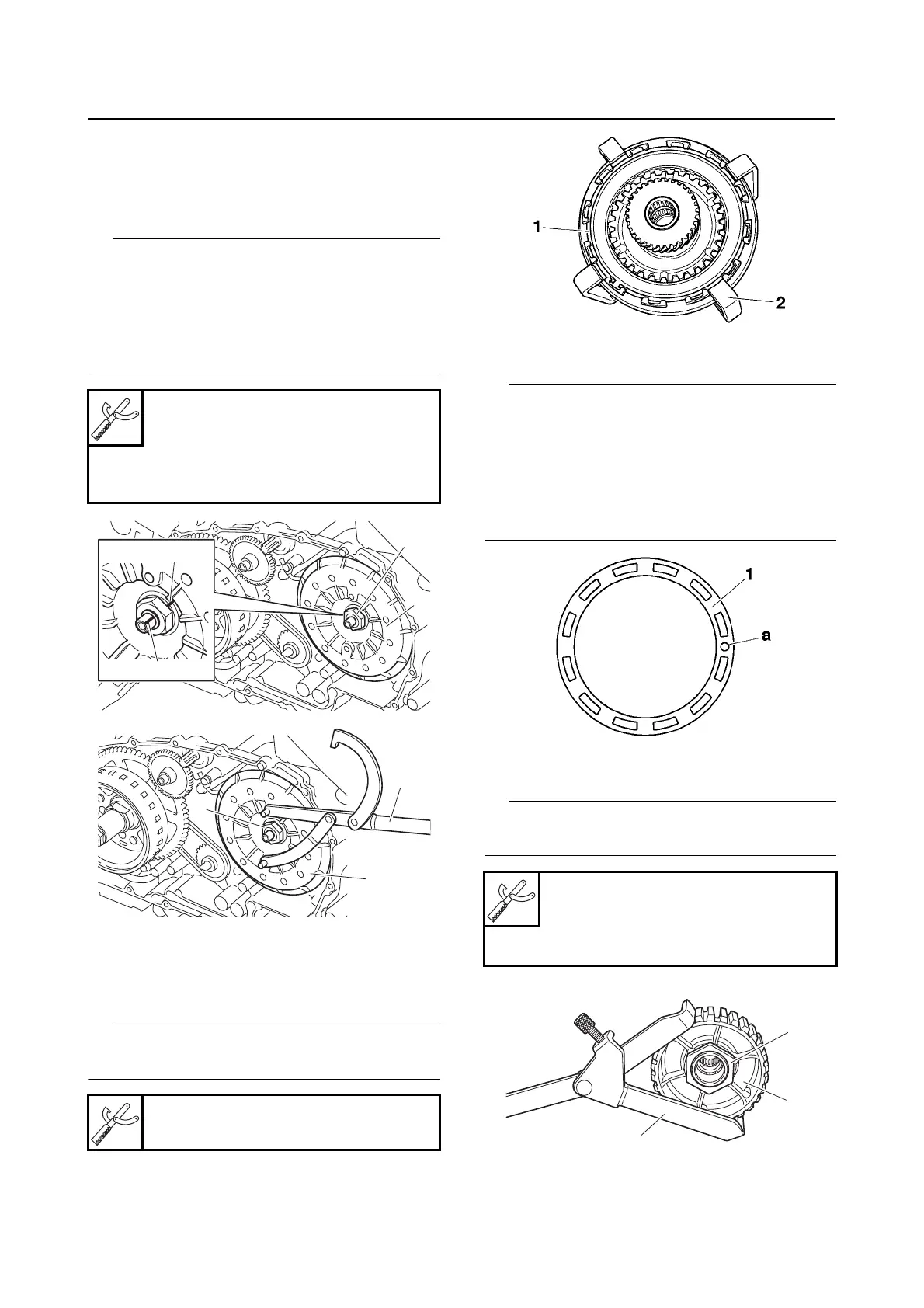

CLUTCH
EAS30346
REMOVING THE CLUTCH
1. Remove:
• Clutch assembly nut “1”
• Clutch assembly “2”
TIP
• Before removal, put alignment marks “a” and
“b” as shown.
• While holding the clutch assembly with the ro-
tor holding tool “3”, loosen the clutch assembly
nut.
• Align these marks during reassembly.
EAS31441
DISASSEMBLING THE CLUTCH
1. Remove:
• Clip “1”
TIP
While compressing the clutch springs with the
clutch spring compressor “2”, remove the clip.
2. Remove:
• Spring stopper plate “1”
TIP
To ensure proper balance of the clutch assem-
bly, one to three holes “a”, or no hole at all, may
have been drilled in the spring stopper plate. Be-
fore removing the spring stopper plate, make
alignment marks on both the plate and the clutch
housing so that the plate can be reinstalled in its
original position.
3. Loosen:
• Clutch boss nut “1”
TIP
While holding the clutch boss “2” with the univer-
sal clutch holder “3”, loosen the clutch boss nut.
Rotor holding tool
90890-01235
Universal magneto and rotor
holder
YU-01235
Clutch spring compressor
90890-01482
a
b
1
2
2
3
1
Universal clutch holder
90890-04086
Universal clutch holder
YM-91042
1
2
3

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
