Yamaha TMAX 2020 Service Manual

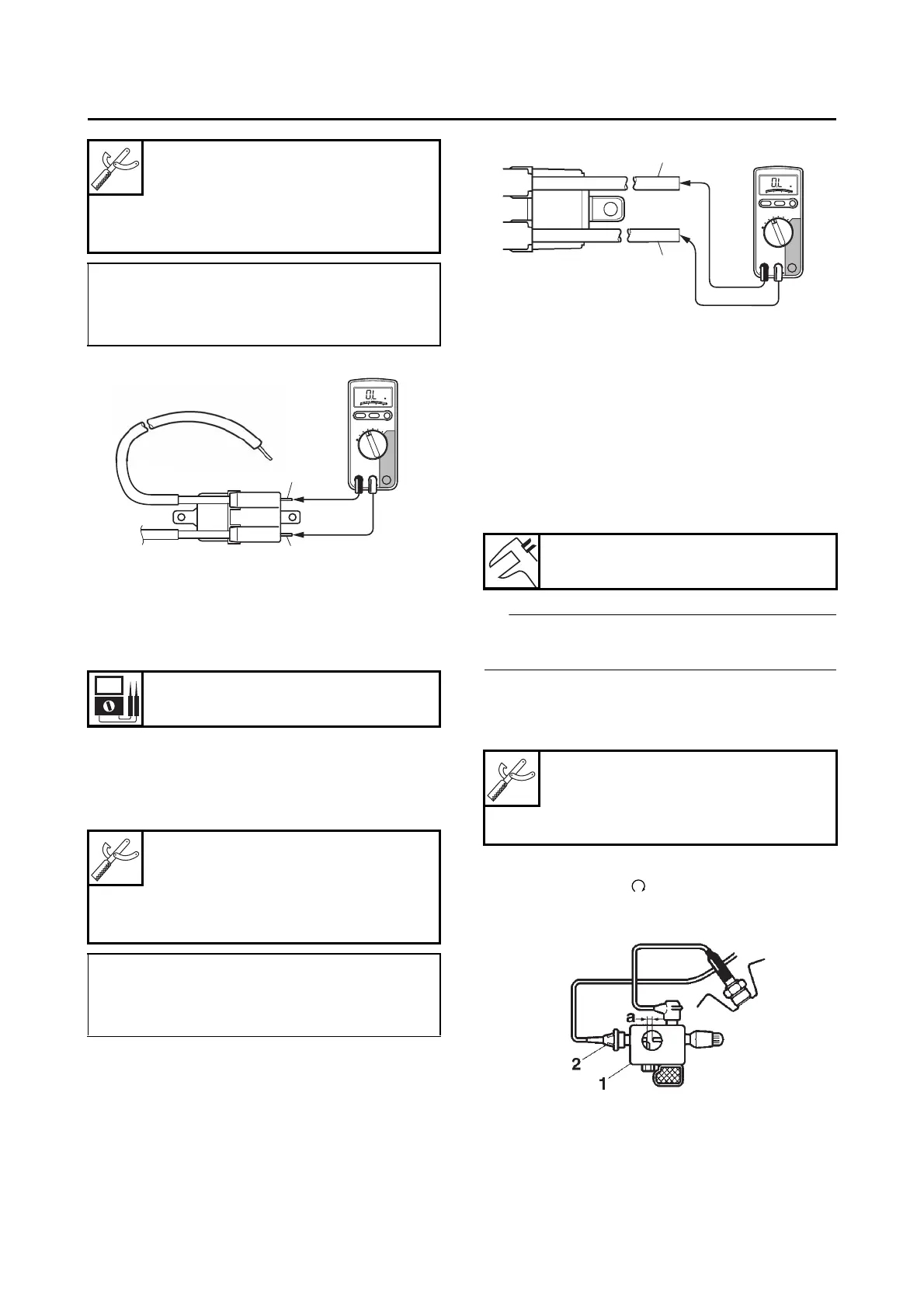

8-103
ELECTRICAL COMPONENTS
c. Measure the primary coil resistance.
2. Check:
• Secondary coil resistance
Out of specification  Replace.
a. Disconnect the spark plug cap from the
ignition coil.
b. Connect the digital circuit tester () to the
ignition coil as shown.
c. Measure the secondary coil resistance.
EAS30556
CHECKING THE IGNITION SPARK GAP
1. Check:
• Ignition spark gap
Out of specification  Perform the ignition
system troubleshooting, starting with step (5).
Refer to “TROUBLESHOOTING” on page 8-
5.
TIP
If the ignition spark gap is within specification,
the ignition system circuit is operating normally.
a. Disconnect the spark plug cap from the
spark plug.
b. Connect the ignition checker “1” as shown.
c. Push the ON/start switch and the engine
stop switch to “ ”.
d. Measure the ignition spark gap “a”.
e. Crank the engine by pushing the ON/start
switch and gradually increase the spark
gap until a misfire occurs.
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
• Positive tester probe
Orange “1”
• Negative tester probe 
Red/Black “2”
Secondary coil resistance
12.00–18.00 k
Digital circuit tester (CD732)
90890-03243
Model 88 Multimeter with
tachometer
YU-A1927
• Positive tester probe 
Spark plug lead “1”
• Negative tester probe 
Spark plug lead “2”
1
2
Spark plug gap
0.7–0.8 mm (0.028–0.031 in)
Ignition checker
90890-06754
Oppama pet–4000 spark checker
YM-34487
2. Spark plug cap
1
2
G089051

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
