Yamaha TMAX 2020 Service Manual

5-48

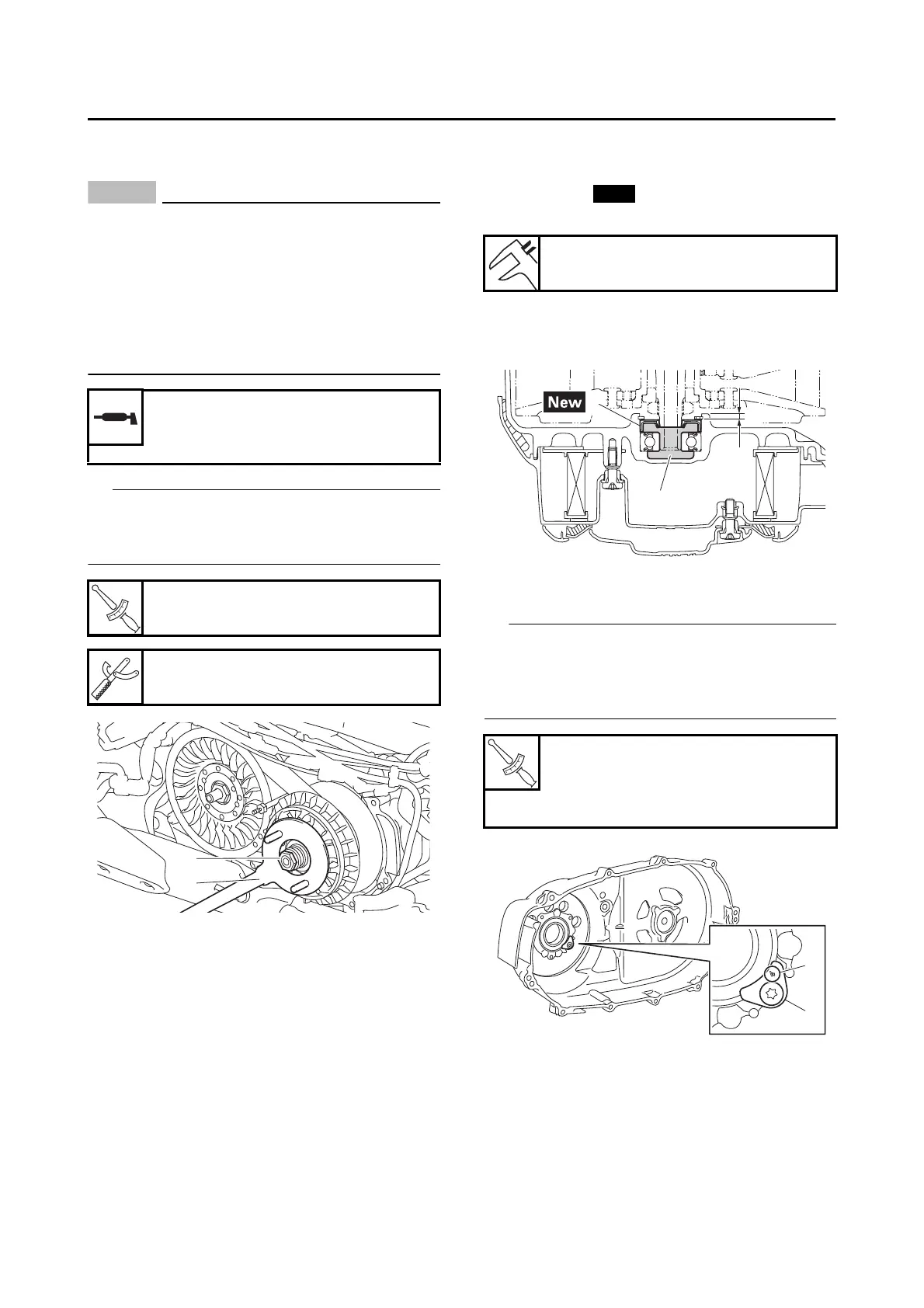

V-BELT AUTOMATIC TRANSMISSION
5. Tighten:
• Primary sheave nut “1”
NOTICE
ECA22200
• Before tightening the nut to remount the
primary sheave, make sure that the serra-
tions of the cam are fitted firmly into the
serrations of the crankshaft.
• Also, make sure that cam is properly seat-
ed.
• Apply grease to the thread and seat of the
primary sheave nut.
TIP
While holding the primary sheave with the
sheave holder “2”, tighten the primary sheave
nut.
EAS31235
INSTALLING THE V-BELT CASE
1. Install:
• Oil seal “1”
(into outer V-belt case)
2. Fill the space “b” shown in the illustration with
10 g (0.35 oz) or more of lithium-soap-based
grease.
3. Install:
• Bearing retainer “1”
TIP
• Install the bearing retainer “1” with its mark “a”
facing outward.
• Apply locking agent (LOCTITE®) to the
threads of the bearing retainer screw.
Recommended lubricant
YAMAHA GREASE “G” (Shell
Sunlight Grease 3®)
Primary sheave nut
160 N·m (16 kgf·m, 118 lb·ft)
Sheave holder
90890-01481
T
R
.
.
1
2
Installed depth of oil seal “a”
4.0–4.3 mm (0.16–0.17 in)
V-belt case bearing retainer
screw
11 N·m (1.1 kgf·m, 8.1 lb·ft)
LOCTITE®
New
1
a
b
T
R
.
.
1
a

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
