Laser Barcode
Scanner
The barcode scanner is used to scan barcode information into the analyzer.
Parameters that can be entered into the analyzer via the scanner include: operator
and patient IDs, control and cartridge lot numbers, comment codes and patient
chart data. The laser beam emerges from the recessed window on the front of
the analyzer adjacent to the battery compartment. The laser beam automatically
turns off after 3-4 seconds or after the barcode is successfully scanned.
Laser Specifications
The barcode scan engine is manufactured by Symbol Technologies Corporation.
The scan engine contains a laser diode that emits laser radiation at a frequency
of 650 nm. The scan engine outputs power (i.e., the power output of the engine
if removed from this product) up to 1.9 mW in scanning mode. The scanner in
this product only operates when the Scan key is pressed. Symbol Technologies
Corporation intends this engine to be used in a Class 2 device.
Warning Labels

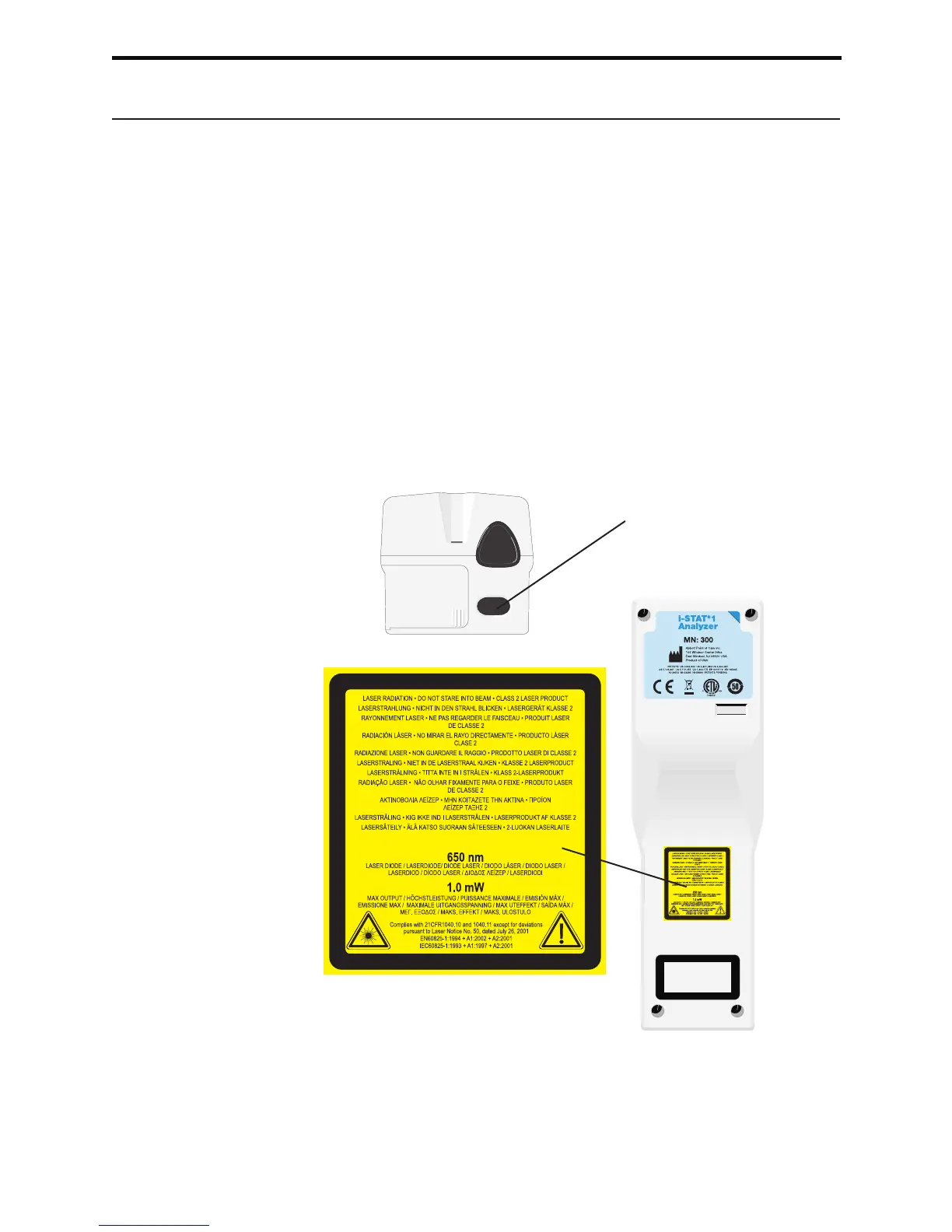

Warning labels are shown below. The warning labels are located on the back or
under-side of the analyzer, as shown. The location of the laser window from where
the analyzer emits the laser beam is also shown below.
LASER BARCODE SCANNER
Laser Barcode Scanner
Window
