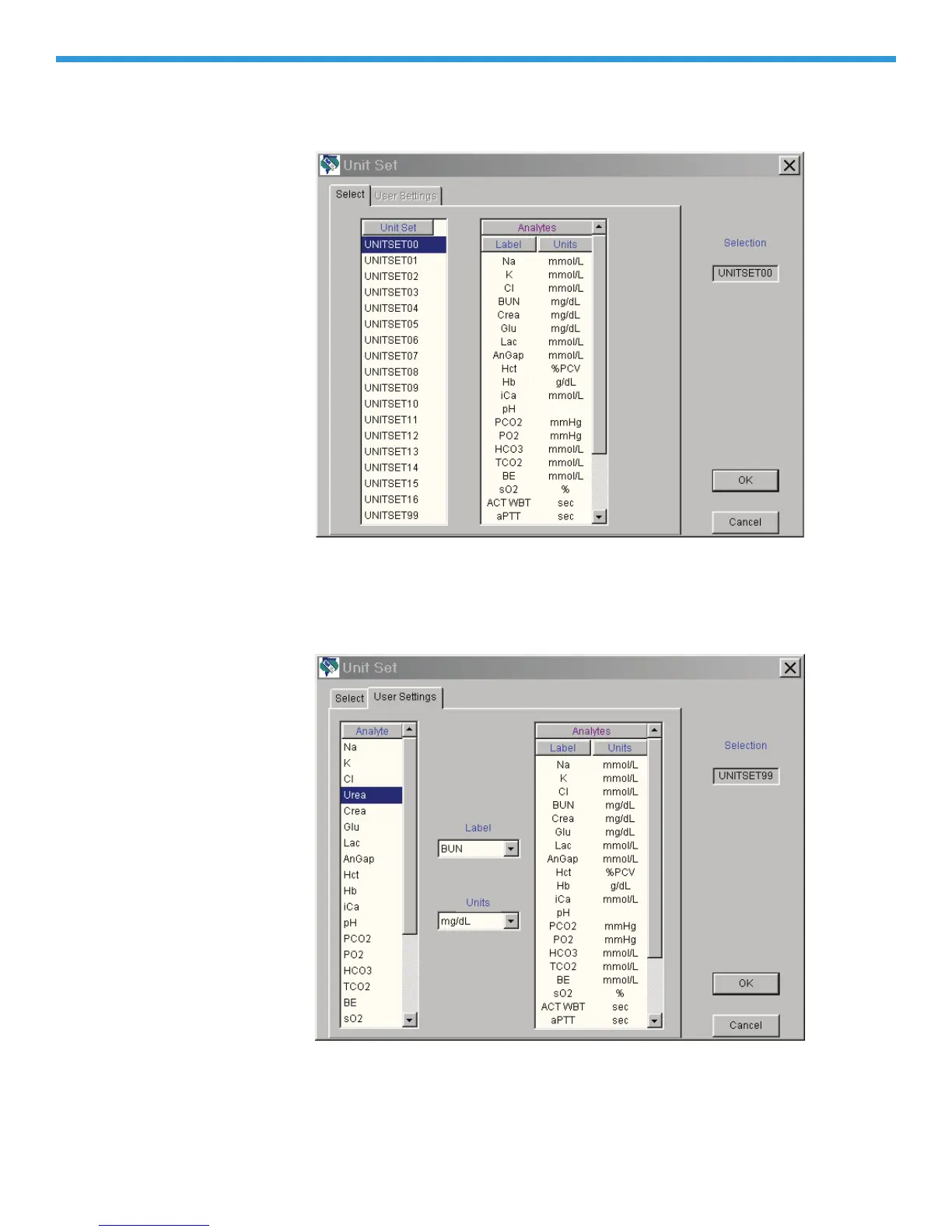

Unit Set Window

Details of each unit set are displayed under the Analytes column. Details are

also listed in the Customization section in this manual.

To create a unique unit set, click UNITSET99 and then the User Settings tab.

Then select the name and units for each analyte or test.
