Abbott i-STAT 1 System Manual

7 - 3
Art: 714369-00H Rev. Date: 03-Aug-12

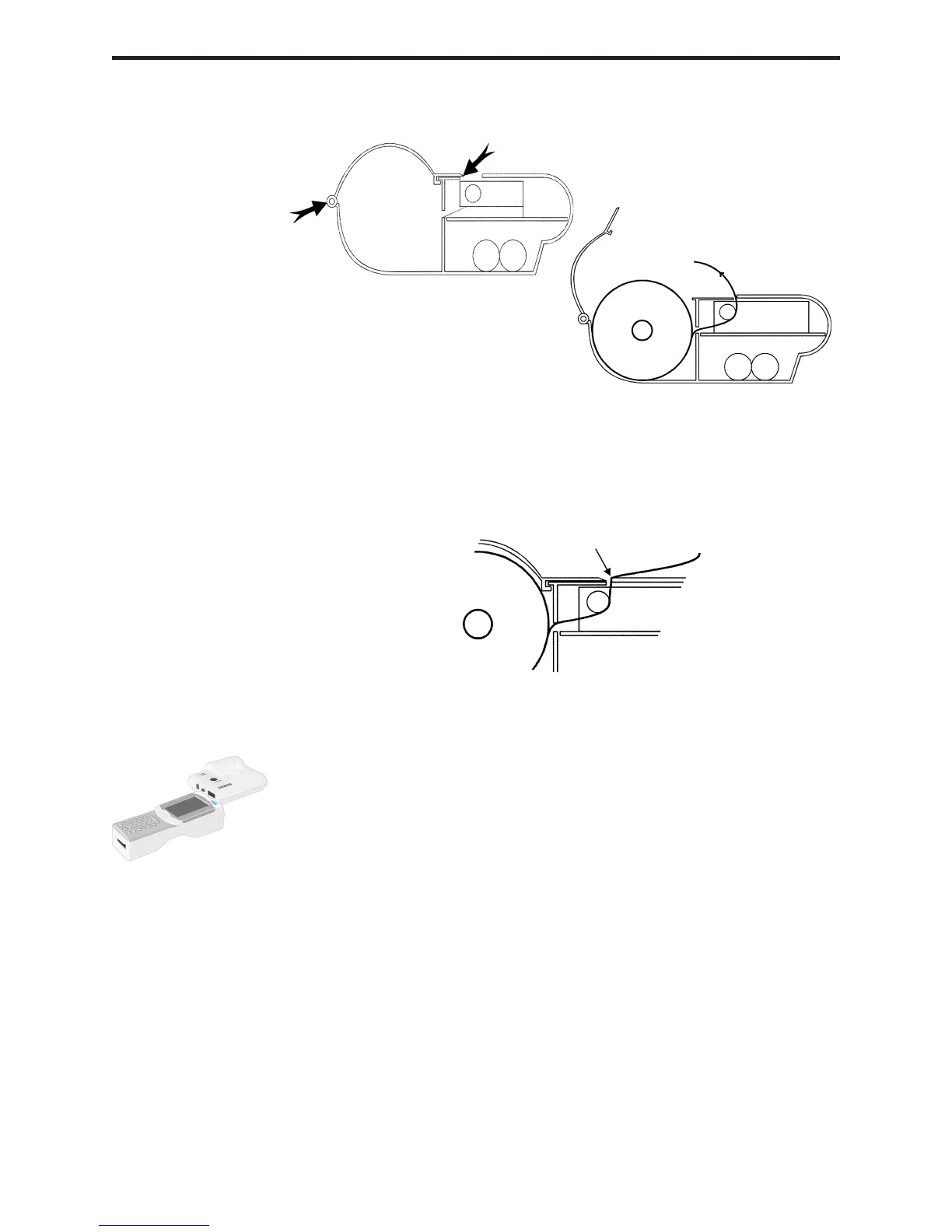

Squeeze cup lid to gain
access to paper roll
Paper
Position of paper roll in printer
When removing a printout from the printer, pull the printout toward the front
of the printer and tear from one side to the other across the serrated edge.
Using serrated edge
to tear paper
Serrated Edge
Paper
Printing Directly
from the Analyzer
Before printing ensure that the printer is turned on. The printer is turned on
and off using a switch on the left side of the printer. When the printer is on
the Power LED will be green.
To print directly from the analyzer, point the analyzer’s Infrared Communication
Window at the printer’s IR LED window on its left side, ensure that the results
to be printed are displayed, and press the Print key on the analyzer. The printer
must be within 1 to 5in. (2.5 to 12.7cm) of the analyzer and must not be too
close to the analyzer. Do not move the analyzer or printer until printing is
complete.
Printing Via a
Downloader
See the Downloader Wiring and Programming section of this manual for
directions to connect the printer to a Downloader or Downloader/Recharger.
Before printing ensure that the printer is turned on. The printer is turned on
and off using a switch on the left side of the printer. When the printer is on
the Power LED will be green.
Place the analyzer between the arms of the Downloader or in the Downloader/
Recharger, ensure that the results to be printed are displayed, and press the Print
key. Do not move the analyzer or printer until printing is complete.
