Abbott i-STAT 1 System Manual

19
Art: 728690-00D Rev. Date: 02-Aug-12
CONNECTING AND WIRING THE i-STAT 1 DRC FOR SERIAL COMMUNICATION
Note: For successful data transmission to occur, the USB cable should first be connected between the
DRC and the PC prior to installing or opening the CDS or Jammlite applications.

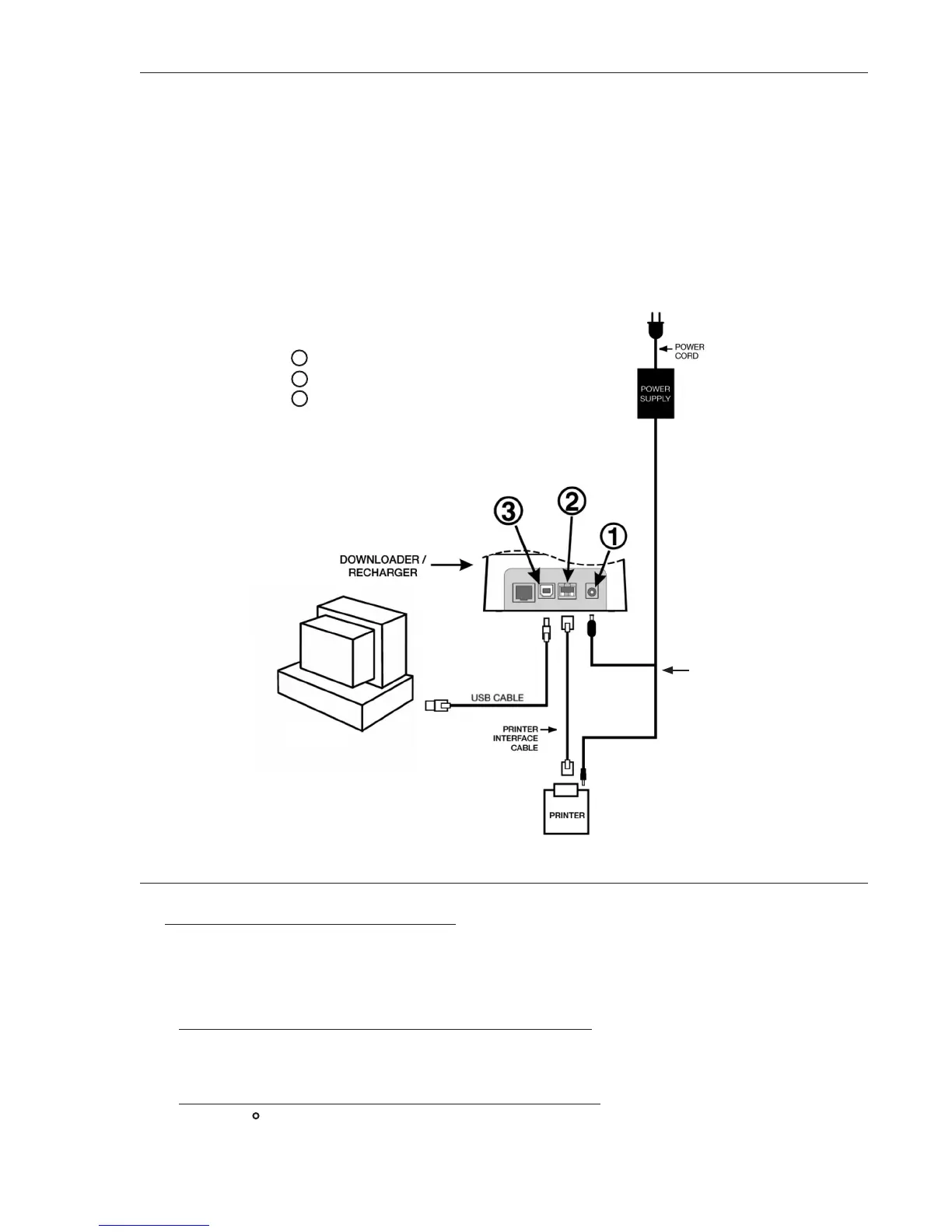

The following diagram shows how to connect the DRC to the Data Manager via USB connection, and
how to connect the portable printer to the DRC for communication. The required parts are:
• USB Cable
• Printer Interface Cable
• Downloader Recharger Power Supply
• Y-Splitter Cable (Optional)
PC
1
2
3
Power In
RJ12 (printer interface)
USB
Y-Splitter Cable
*
*
If using a Martel Printer, use the power
supply that came with the Martel Printer and
not the Y-Splitter cable provided with the DRC.
USB DRIVER UNINSTALLATION
1. USB Driver Uninstallation for Windows XP
Caution: Disconnect the DRC-300 from the PC before proceeding.
1.1 Using Internet Explorer, navigate to:
http://www.abbottpointofcare.com/Customer-Support.aspx
1.2 The following link is listed under the “Useful Customer Information “ section:
 • USB Driver Uninstaller for DRC-300 Downloader/Recharger.
This link allows you to download a utility file (CDMuninstallerGUI.exe)
which can be used to uninstall FTDI USB drivers from a PC.
