2. Adjust the value of the following service mode.
COPIER > ADJUST > FEED-ADJ > ADJ-REFE
• Setting range : -100 to 100 (0.1 mm per increment)
NOTE:

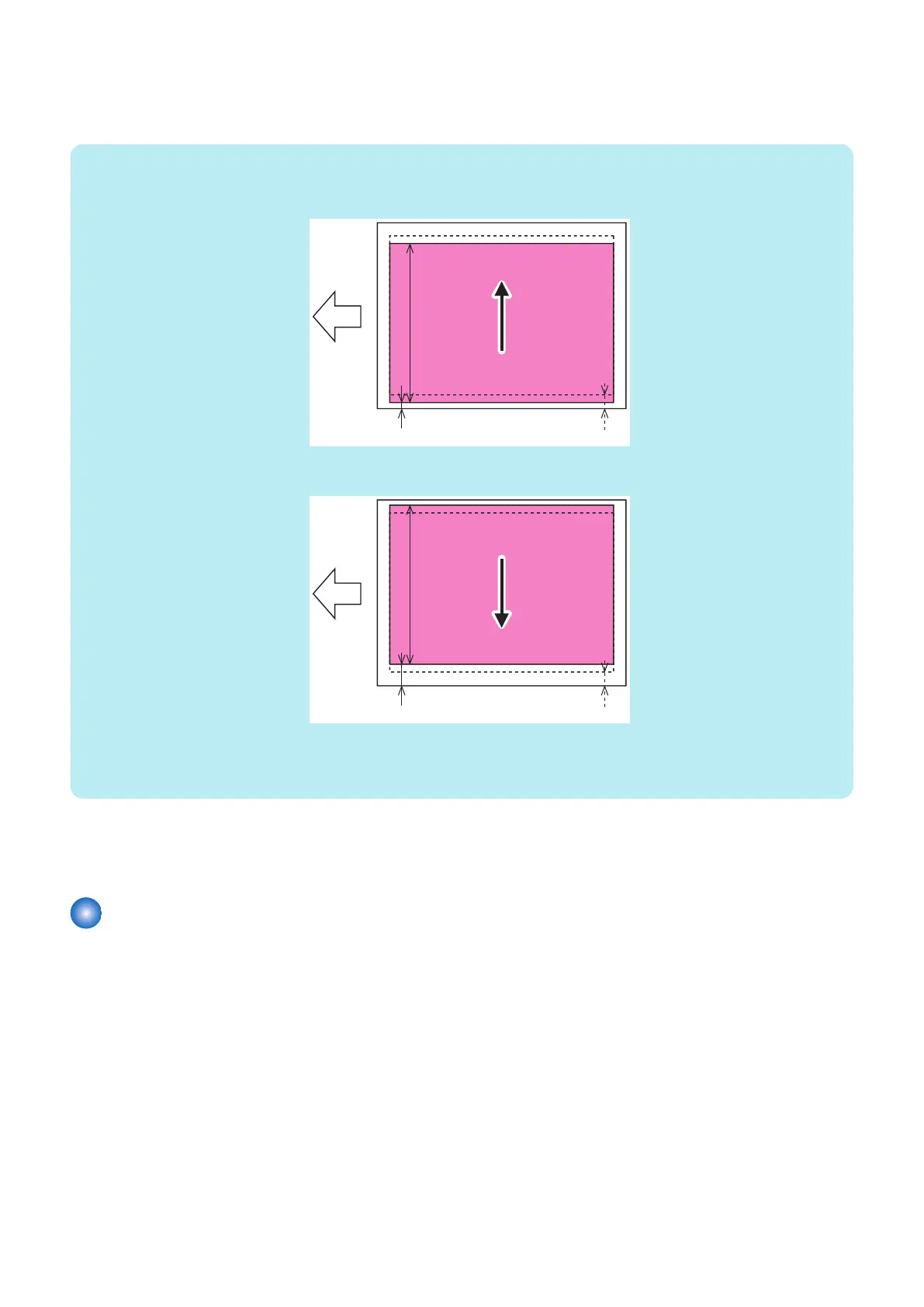

• When L4 (2nd side) is too small :
When the value is increased, L4 (2nd side) becomes larger.
L4 2nd side
Ly
L4 1st side
(Back side)
• When L4 (2nd side) is too large :
When the value is decreased, L4 (2nd side) becomes smaller.
L4 2nd side
L4 1st side
(Back side)
Ly
(Ly is fixed.)
• Example : When L4 (2nd side) = 2.1 and L4 (1st side) = 1.8, enter "+3" because 2.1 - 1.8 = 0.3.
3. Output a test print from the Cassette 3 and check that the value is within the specified range.
4. Write down the new adjustment value in the service label.
Image Position Adjustment (Single Pass ADF)
â– Checking the Skew
Check the image at ADF stream reading with using the "Test Charts for Image Position Adjustment". If any adjustments have
been made, perform all of the following "Adjustment Procedure". If it is confirmed that there is no problem, proceed to "Network
Connectivity Check".
1. Adjustment of the White Plate
2. Height Adjustment
3. Light intensity adjustment
4. Automatic Adjustment of the Stream Reading Position (Automatic Adjustment of the Reading Position at ADF Reading)
5. White Level Adjustment
6. Front/Back Side Difference Correction Adjustment
2. Host Machine
130
