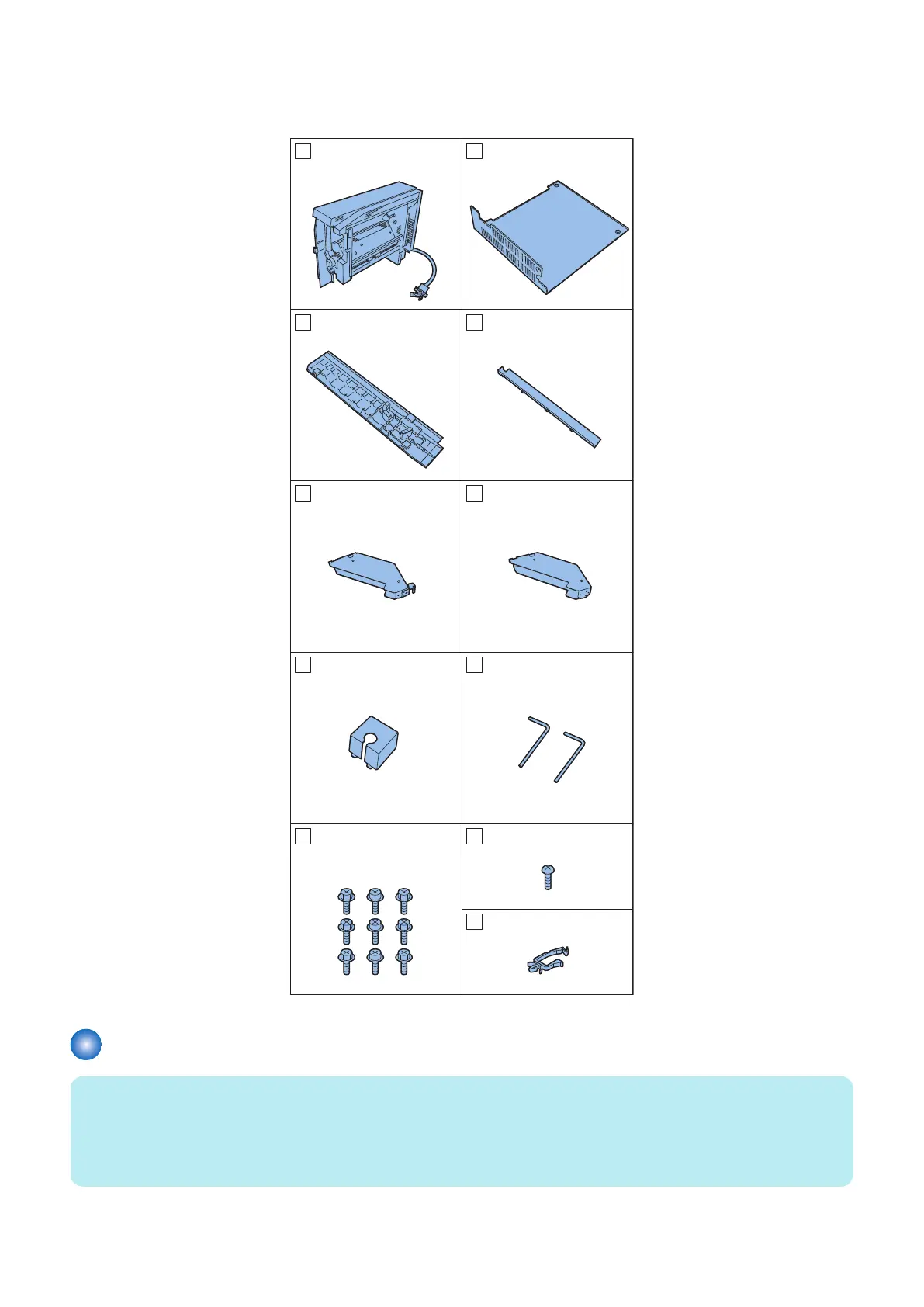

â– Buffer Path Unit (Only Models with the Buffer Path Unit Included as Standard)
[1] Buffer Path Unit X 1 [2] Buffer Left Lower
Cover X 1
[3] Buffer Front Cover
X 1
[4] Delivery Outlet Upper
X 1
[5] Cover Support Plate
(Front) X 1
[6] Cover Support Plate
(Rear) X 1
[7] Connecting Harness
Cover X 1
[8] Hinge Shaft X 2
[9] Screw
(RS Tightening; M4x8)
X 9
[10] Screw
(P Tightening; M4x10)
X 1
[11] Wire Saddle X 1
Installing the Scanner
NOTE:
• Because the Scanner Fixation Member will be needed when moving the machine, be sure to keep it in a safe place.
• When moving the machine, be sure to execute following service mode (Lv.2), remove the Reader Left Upper, and
then install the Scanner Fixation Member. (For details, refer to "When Relocating the Machine".)
COPIER > FUNCTION > MISC-R > RD-SHPOS
2. Host Machine
24
