Paper Deck Heater Unit-A1
Checking before Installation
Requirements for the installation place are given below. It is recommended to look over the place to be used for installation before
delivering the equipment to the user.
CAUTION:
• Install the host machine first and then install the Paper Deck Unit.
• Do not carry the Paper Deck Unit with the host machine is installed for prevention of breakage.
Checking the Supplied Parts
NOTE:
Each part of the Paper Deck Heater Unit-A1 for the Paper Deck is supplied as a service part according to the location, so prepare
the following parts.
Also, use the appropriate Paper Deck Heater Unit for each country.

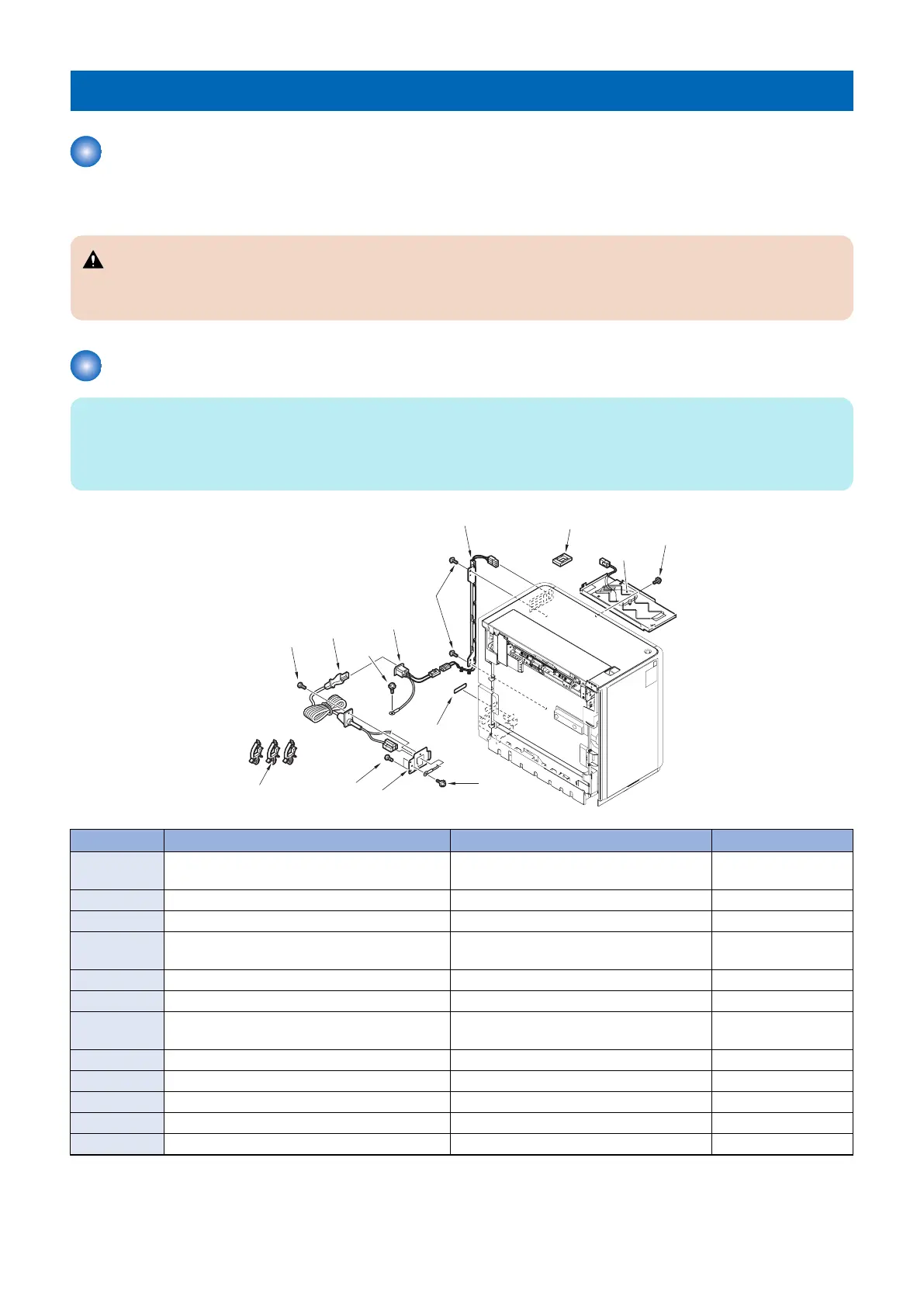

[5]
[9]
[5]
[1]
[6]
[3]
[7]
[11]
[8]
[12]
[4]
[2]
[10]
[5]
Item Parts Name Parts Number Q'ty
[1] Heater unit FG6-9650 (100V)
FG6-9651 (230V)
1pc.
[2] AC input connector FG6-1117 1pc.
[3] Relay harness unit FG6-2957 1pc.
[4] AC cable FK3-0630 (100V)
FK3-0631 (230V)
1pc.
[5] Screw (Toothed washer; M4x6) XB2-7400-607 3pcs.
*[6] Cable protection bushing WT2-5098 1pc.
[7] Power supply label FS6-8478 (100V)
FS6-8725 (230V)
1pc.
[8] Screw (Binding; M4x4) XB1-2400-409 2pcs.
[9] Screw (RS Tightening; M4x8) XA9-0732-010 2pcs.
[10] Wire saddle WT2-5730 3pcs.
[11] Cord mount FC7-5473 1pc.
[12] Screw with flat spring (M4x10) XB2-8401-007 1pc.
*As for the change of the part number, please refer to the latest parts catalog.
