<Others>
Other bundled items such as Installation Procedure, leaflets, etc.
Installation Procedure
NOTE:
Keep the removed fixing materials as they are used to transport for relocation.

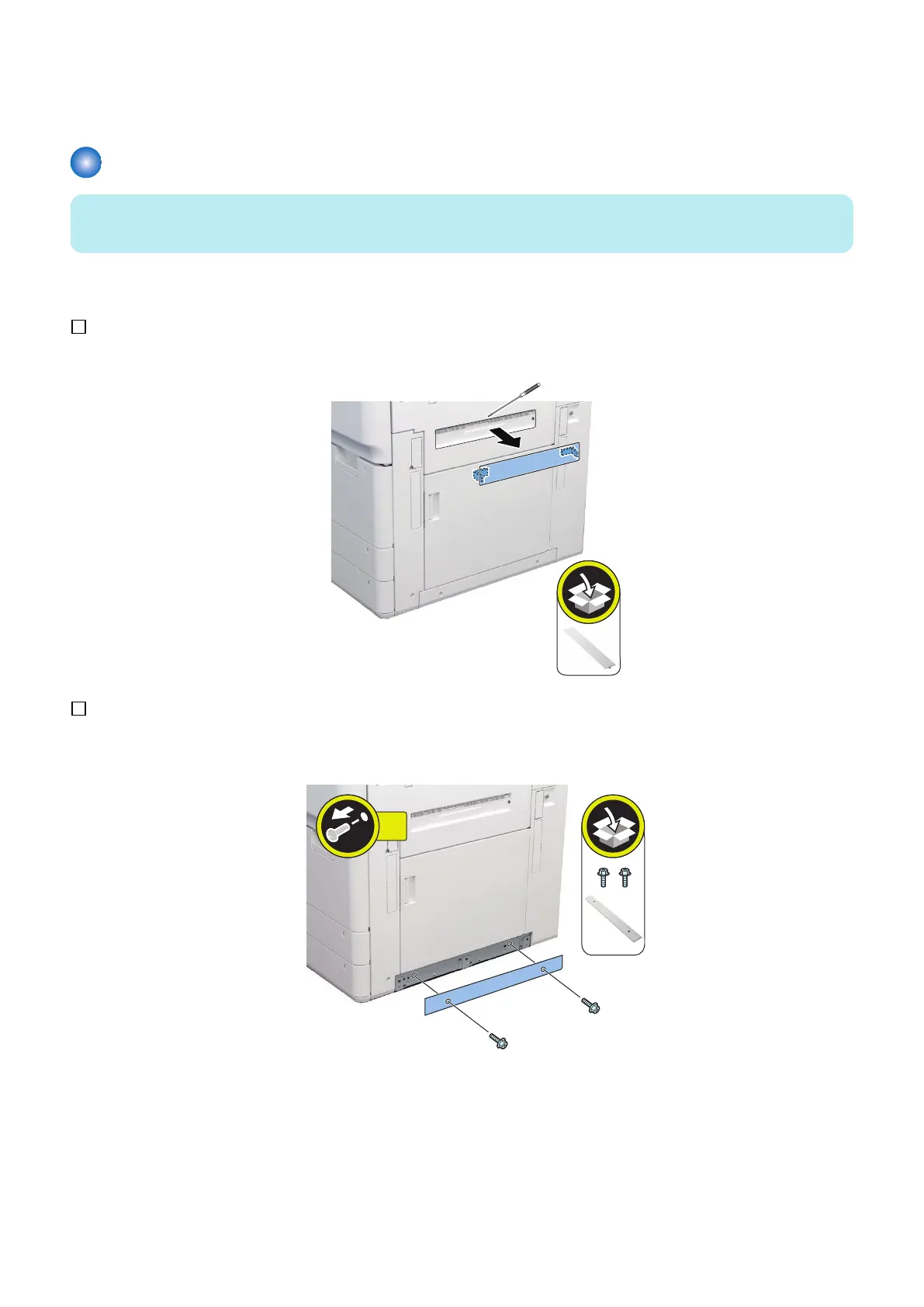

â– Preparation of the Host Machine
1.
Remove the feed cover.
2.
Remove the lower right cover.
•
2 Screws
2x
5. Paper Feed Options
383
391
393
Table of Contents
Table of Contents
4
Safety Precautions
10
Toner Safety
11
About Toner
11
Handling Adhered Toner
11
Points to Note at Installation
11
Checking the Installation Environment
11
Points to Note before Servicing
11
Essential Items to be Performed before Installation
12
Points to Note When Turning ON/OFF the Main Power
12
Checking the Installation Space
13
Illustrations
14
Description on the Parts Included in the Package
14
Product Lineup
15
Image Reading System Options
16
Function Expansion System Options
17
Combination Table of Accessory Installation
18
Pickup/Delivery System Options
19
Host Machine
21
How to Utilize this Installation Procedure
22
Description on the Parts Included in the Package
22
Symbols
22
Checking before Installation
23
Checking the Power Supply
23
Checking the Installation Environment
23
Points to Note at Installation
23
Points to Note When Moving this Host Machine
23
Checking the Installation Space
24
Installation Procedure
26
Unpacking
26
Checking the Contents
31
Installing the Scanner
33
Installing the Buffer Path Unit (Only Models with the Buffer Path Unit Included as Standard) (for US and EUR)
42
Installing the Fixing Feed Assembly
51
Installing the Process Unit (for Color)
55
Installing the Developing Assembly (for Black)
66
Installing the Noise Reduction Cover
75
Securing the Host Machine
78
Preparing Connection of the Main Power
78
Turning on the Main Power Supply
80
Installing the Toner Container
80
Host Machine Settings (Starting Setup Guide)
81
Registration of Installation Date Information
81
Auto Adjust Gradation (Full Adjustment)
82
Register Paper to Adjust
83
Execution of Correct Shading
84
Auto Correct Color Tone Settings (Register Correction Pattern)
87
Installing the Reader Assembly
87
Other Installations
89
Checking the K Paper Settings (Only for CHINA)
91
Deck Settings
91
Cassette Settings
93
Image Position Adjustment
95
Image Position Adjustment (Single Pass ADF)
139
Checking the Network Connection
149
Network Troubleshooting
150
Operation When Using Uniflow Online
151
Installing the IC Card Reader
151
Image Reading System Options
158
Printer Cover-H2
159
Points to Note before Installation
159
Checking the Included Parts
159
Installation Outline Drawing
160
Installation Procedure
160
Operation Check
177
Reader Heater-P1
178
Checking the Contents
178
Installation Outline Drawing
178
Installation Procedure
179
Host Machine Options
197
Connection Kit-A4 for Bluetooth le
198
Checking the Contents
198
Installation Outline Drawing
198
Installation Procedure
199
Setting after Installation
213
Numeric Keypad-A2
214
Points to Note before Installation
214
Checking the Contents
214
Installation Outline Drawing
214
Installation Procedure
215
Utility Tray-B1
224
Points to Note at Installation
224
Checking the Contents
224
Installation Outline Drawing
224
Installation Procedure
224
Copy Card Reader-F1/Copy Card Reader Attachment-A5
231
Points to Note at Installation
231
Checking the Contents
231
Installation Outline Drawing
232
Installation Procedure
233
Checking after Installation
243
Voice Guidance Kit-G1
244
Points to Note at Installation
244
Checking the Contents
244
Installation Outline Drawing
245
Installation Procedure
246
Checking after Installation
254
Operation Check
254
Voice Operation Kit-D1
255
Points to Note at Installation
255
Checking the Contents
255
Installation Outline Drawing
256
Installation Procedure
257
Checking after Installation
264
Operation Check
264
Serial Interface Kit-K3/Copy Control Interface Kit-A1
266
Points to Note at Installation
266
Checking the Contents
266
Installation Outline Drawing
267
Installation Procedure
268
Super G3 FAX Board-AX1
273
Product Name
273
Installation Outline Drawing
273
Checking the Contents
274
Installation Procedure
275
Checking the Operation
279
Super G3 2Nd Line Fax Board-AX1
281
Product Name
281
Installation Outline Drawing
282
Checking the Contents
283
Installation Procedure
284
Checking the Operation
289
SSD-Related Option
291
Pre-Checks
291
[TYPE-1] Option SSD (1TB)
291
Super G3 2Nd Line Fax Board-AX1
291
[TYPE-2] Memory Mirroring Kit
299
Imagepress Server M20
310
The IP Addresses for Communication between the Host Machine and Equipment Are Set Automatically
310
Check When Connecting the Power Plug to an Outlet
310
Checking the Contents
310
Installation Procedure
311
Settings after Installation
320
Accessory Interface Kit-A2
326
Points to Note at Installation
326
Checking the Contents
326
Installation Outline Drawing
326
Installation Procedure
327
Paper Feed Options
335
Cassette Heater Unit-38
336
Product Name
336
Checking the Contents
336
Installation Outline Drawing
336
Installation Procedure
336
Paper Deck Unit-E1
345
Checking before Installation
345
Unpacking Procedure
345
Checking the Contents
346
Installation Procedure
347
Checking after Installation
367
Paper Deck Heater Unit-A1
373
Checking before Installation
373
Checking the Supplied Parts
373
Installation Procedure
374
Checking after Installation
388
POD Deck Lite-C1
389
Checking before Installation
389
Unpacking
389
Checking the Contents
390
Installation Procedure
392
Disposal Parts
411
Paper Positioning Check/Adjustment Procedure
411
Multi-Drawer Paper Deck-E1
416
Checking before Installation
416
Unpacking
418
Checking the Contents
425
Installation Procedure
426
Removing from the Connection Equipment
473
Relocating the Machine
482
Paper Deck Path Kit-B1
488
Checking before Installation
488
Unpacking
488
Checking the Contents
491
Installation Procedure
493
Checking after Installation
516
Long Sheet Tray-B1
517
Points to Note at Installation
517
Checking the Contents
517
Installation Outline Drawing
517
Installation Procedure
519
Stack Bypass Alignment Tray-D1
531
Points to Note at Installation
531
Checking the Contents
531
Installation Outline Drawing
531
Installation Procedure
532
Subsequent Work
539
Stack Bypass-D1
544
Points to Note at Installation
544
Checking the Contents
544
Installation Outline Drawing
545
Installation Procedure
545
Adjustment after Installation
557
Paper Output Options
564
Buffer Pass Unit-M1
565
Product Name
565
Checking the Contents
565
Installation Procedure
566
Document Insertion Unit-R1
577
Checking before Installation
577
Unpacking Procedure
578
Checking the Contents
580
Installation Outline Drawing
582
Installation Procedure
583
Adjustment
605
Checking after Installation
612
Document Insertion/Folding Unit-K1
614
Checking before Installation
614
Unpacking
614
Checking the Contents
622
Installation Procedure
623
Checking after Installation
634
Adjusting the Height and Tilt
635
Paper Folding Unit-K1
648
Checking before Installation
648
Unpacking
648
Checking the Contents
651
Installation Procedure
652
Adjustment
670
Checking after Installation
682
Staple Finisher-Ag1/Booklet Finisher-AG1
684
Checking before Installation
684
Unpacking Procedure
686
Checking the Contents
690
Installation Procedure
691
Adjusting the Height
720
Connecting the LAN Cable
725
Connecting the Power Cord and Operation Check
729
Side Registration/Skew Adjustment
730
Peeling and Attaching the Labels
737
Checking after Installation
740
Finisher Long Sheet Catch Tray-B1
741
Checking before Installation
741
Checking the Contents
741
Installation Procedure
741
Checking after Installation
745
Removing the Finisher Long Sheet Catch Tray
747
Puncher Unit-BT1/BS1/BU1
750
Points to Note at Installation
750
Points to Note before Installation
750
Product Name
750
Checking the Contents
751
Installation Procedure
751
Affixing the A1 Labels
759
Adjustments
760
Staple Finisher-AC1/ Booklet Finisher-AC1
773
Checking before Installation
773
Unpacking
775
Checking the Contents
777
Installation Procedure
778
Affixing the Labels
788
Making Adjustments
791
Making Checks after Completion of Installation Work
805
Detach this Equipment from the Upstream Connection Machine
807
2/3 2/4 4 Hole Puncher Unit-A1
809
Checking before Installation
809
Unpacking Procedure
809
Checking the Contents
811
Installation Procedure
811
Disposal Parts Check
826
Operation Check
826
Adjusting the Output Level of the Punch Waste Full Sensor
827
Checking and Adjusting the Punch Hole Position
828
Finisher Jogger Kit-A1
832
Checking before Installation
832
Unpacking Procedure
832
Checking the Contents
833
Installation Procedure
834
Checking after Installation
842
Inner Booklet Trimmer-A1
844
Checking before Installation
844
Checking the Supplied Parts
844
Installation Procedure
845
Operation Check
864
Booklet Trimmer-G1
865
Pre-Checks
865
Unpacking
867
Checking the Contents
872
Installation Procedure
873
Two-Knife Booklet Trimmer-B1
903
Pre-Checks
903
Unpacking Procedure
903
Checking the Contents
908
Installation Procedure
908
Adjustment
915
Two-Knife Booklet Trimmer Conveyor-B1
925
Points to Note at Installation
925
Checking the Contents
925
Installation Procedure
925
Revision History
929
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Canon imagePRESS Lite C270 and is the answer not in the manual?
Ask a question
Canon imagePRESS Lite C270 Specifications
General
Brand
Canon
Model
imagePRESS Lite C270
Category
Printer
Language
English
Related product manuals
Canon imagePRESS Lite C265
929 pages
Canon imagePRESS C1+
195 pages
Canon imagePRESS C650
63 pages
Canon imagePress C810
36 pages
Canon imagePress C710
36 pages
Canon imagePRESS C750
63 pages
Canon imagePRESS C6010
74 pages
Canon imagePRESS C8000VP
68 pages
Canon imagePRESS Lite C170
129 pages
Canon imagePRESS C800 Series
315 pages
Canon imagePRESS C7000VP Series
137 pages
Canon imagePRESS C10000VPSeries
265 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
