Disposal Parts
1. Following disposal parts are remained after the installation procedure.
[1] Screw (RS Tightening; M4x8) 3x
[2] Screw (Binding; M4x5) 2x
[3] Screw (Stepped Screw; M4x8) 1x
[4] Screw (P Tightening; M3x8) 1x
[5] Feed Cover 1x
[6] Lower Right Cover 1x
[7] Connector Cover 1x
[8] Blindfold Cover 2x
[9] Total Map Label 1x
[10] Foreign Language Label 1x
[11] Cassette No. Label 1x
[12] Paper Size Sub Label 1x
[13] Paper Size Sub Label 1x
[14] JAM Label 1x
[15] JAM Label 2 1x
[16] Spacer 1x
[17] Slope Guide 1x
[18] Door Stopper 1x
[19] Extraction Sensor Plate 1x
[20] Feed Lower Guide Front Fixing Plate 1x
[21] Feed Lower Guide Rear Fixing Plate 1x
[22] Blindfold Seal 1x
Paper Positioning Check/Adjustment Procedure

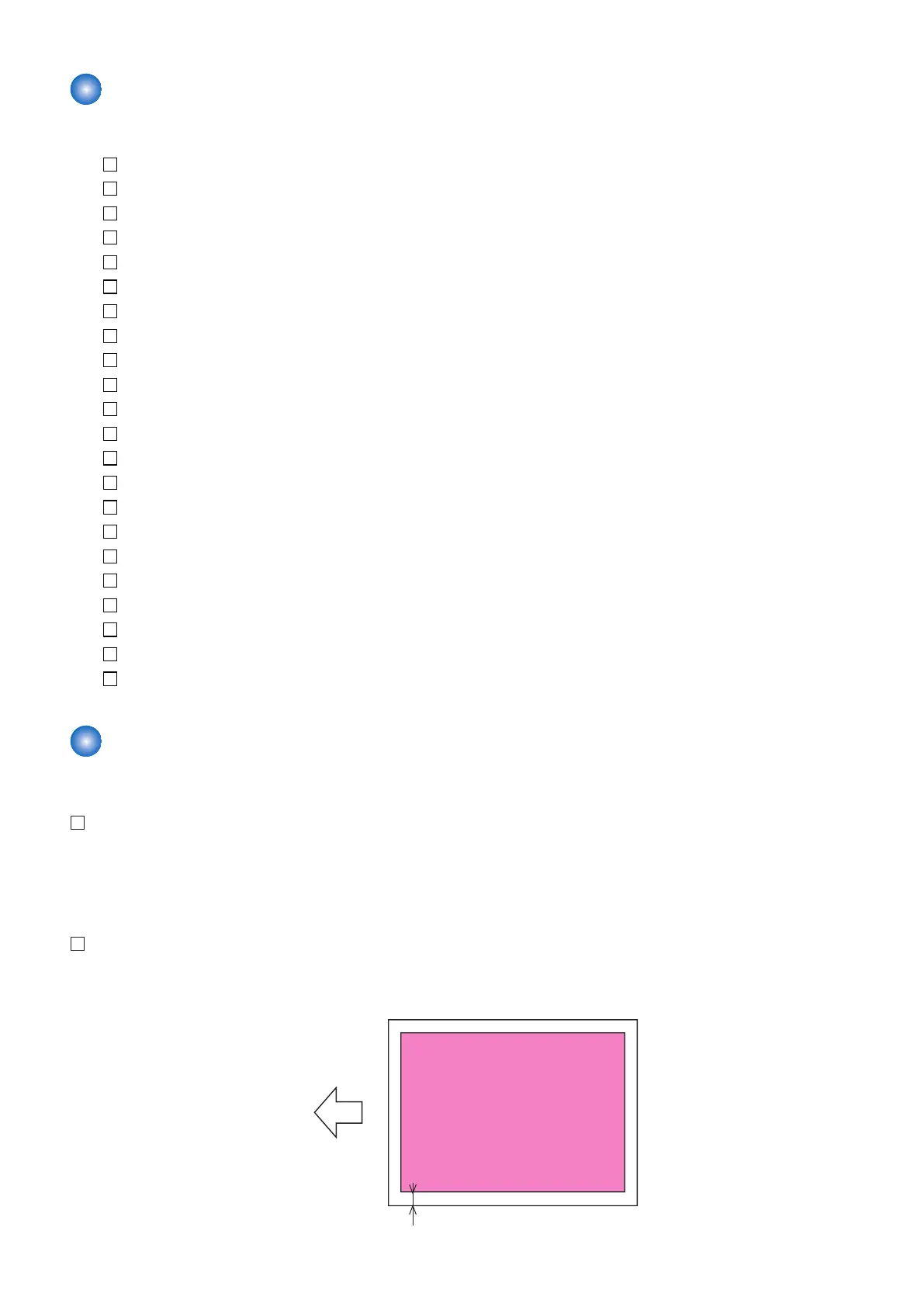

â– Adjusting the Left Edge Margin (L1) of the Image
1. After setting the service modes (level 1) as follows, press the Start key and output a test print.
• COPIER > TEST > PG > TYPE = 5
• COPIER > TEST > PG > COLOR-M = 1
• COPIER > TEST > PG > COLOR-Y/C/K = 0
2. Print sheets of paper from the POD Deck Lite. Check whether L1 is within the reference range.
• L1=2.5 ± 1.5mm
5. Paper Feed Options
402
