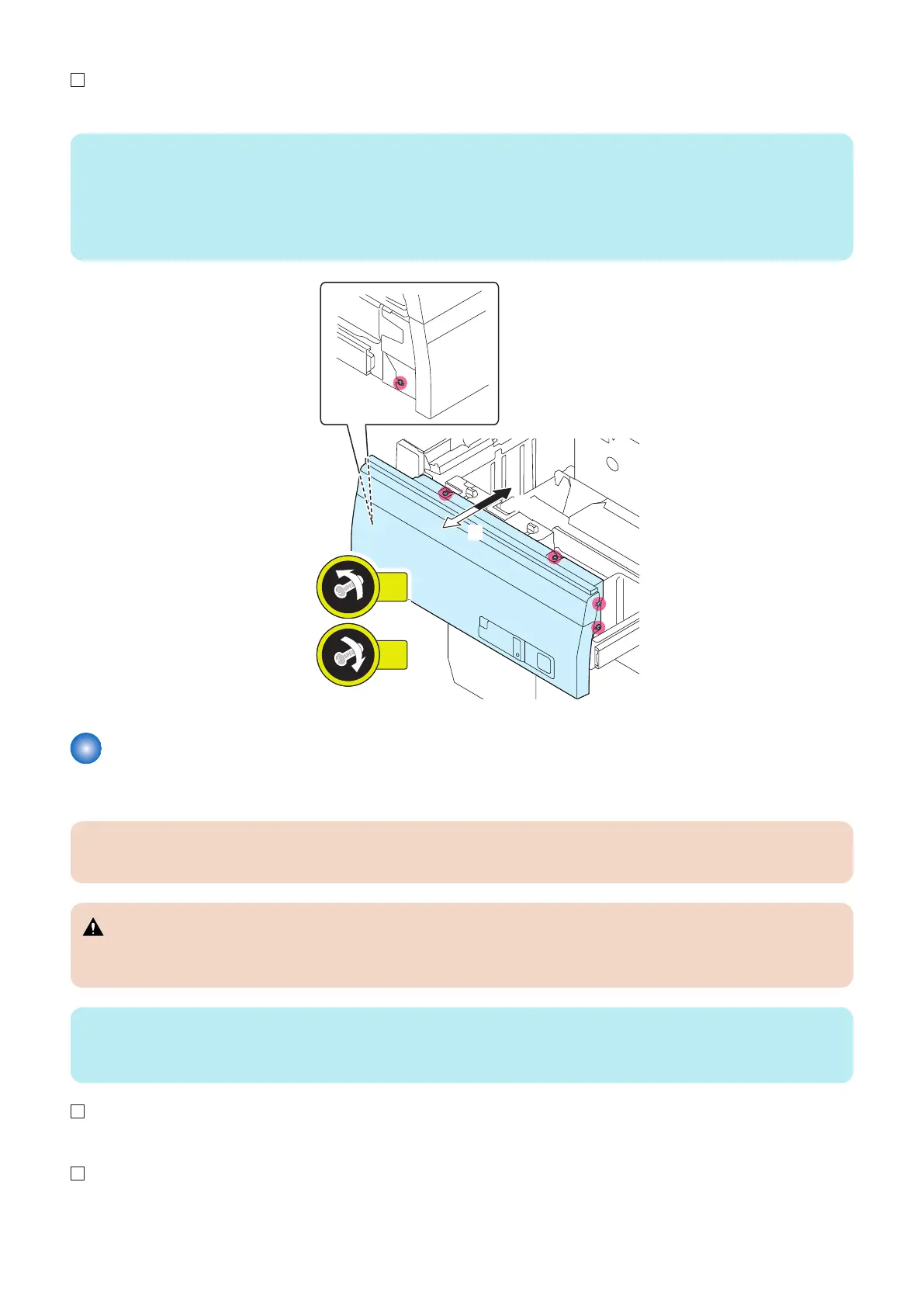

3. Loosen the 5 Screws and adjust the Deck Front Cover, and then tighten the loosened Screws.
NOTE:
• 1 scale = 1 mm.
• When the Lock Bracket (Left/Right) was moved to the [A] direction shown in step 2 of "Adjustment Method", move the Deck
Cover in the [A] direction.
• When the Lock Brackets (Left/Right) was moved to the [B] direction shown in step 2 of "Adjustment Method", move the Deck
Cover in the [B] direction.
Removing from the Connection Equipment
â– Removing from the Connection Equipment
CAUTION:
Remove all paper from the Deck before disconnecting it from the host machine.
CAUTION:
Do not pull out two or more decks simultaneously when this equipment is not connected to the host machine. Otherwise,
this equipment may topple over.
NOTE:
When separating this equipment with connecting the cables, it is not necessary to remove the Synchronous Communication Cable
and LAN cable.
1. Remove all paper from the Upper Deck, the Middle Deck, and the Lower Deck.
2. Turn OFF the main power switch of the host machine.
5. Paper Feed Options
464
