Long Sheet Tray-B1
Points to Note at Installation
• The following options are necessary to install this equipment:
• Pickup side: Stack Bypass + Stack Bypass Alignment Tray
• Delivery side: Copy Tray or Staple Finisher / Booklet Finisher
• When installing the Stack Bypass Alignment Tray and this kit at the same time, install this kit before performing " Subsequent
Work" of the Stack Bypass Alignment Tray.
• If the Copy Tray is installed, remove it beforehand.
• Although pictures or illustrations used for explanationmay differ from the actual things, the procedure is the same.

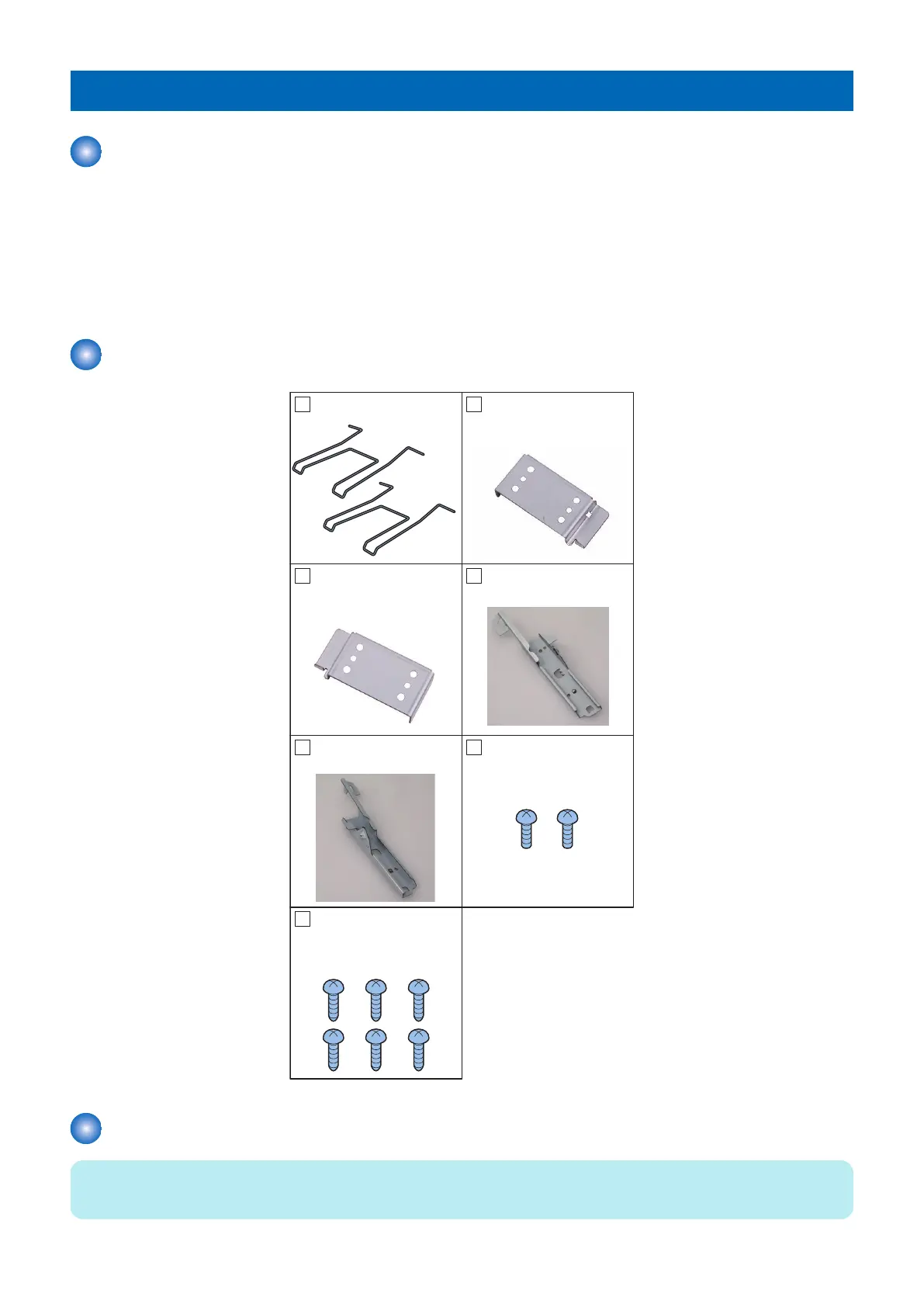

Checking the Contents
[1] Extension Tray X 2 [2] Long Sheet Tray
Attachment (F) X 1
[5] Long Sheet Tray
Support Plate R)
[6] Screw
(Binding Round End;
M4x8) X 2
[3] Long Sheet Tray
Attachment (R) X 1
[4] Long Sheet Tray
Support Plate (F)
[7] Screw
(P Tightening; M4x8)
X 6
Installation Outline Drawing
NOTE:
Although pictures may differ from the actual things, the procedure is the same.
5. Paper Feed Options
508
To Next Page
