4 PKE-SWD-32, interface for motor-starter combination with PKE PKE12/32
4.4 Installation
SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com 105
4.4 Installation
The installation of the PKE communication connection an SmartWire-DT is
only possible with a DILM contactor or a part no. MSC-DEA-... electronic
motor-starter combination. When using individual components (PKE and con-
tactor separately on the top-hat rail) observe the maximum distance between
the PKE and contactor. The maximum distance for a separately assembled
motor starter combination is limited by the cable length of the SWD ribbon
cable located on the PKE32-COM.

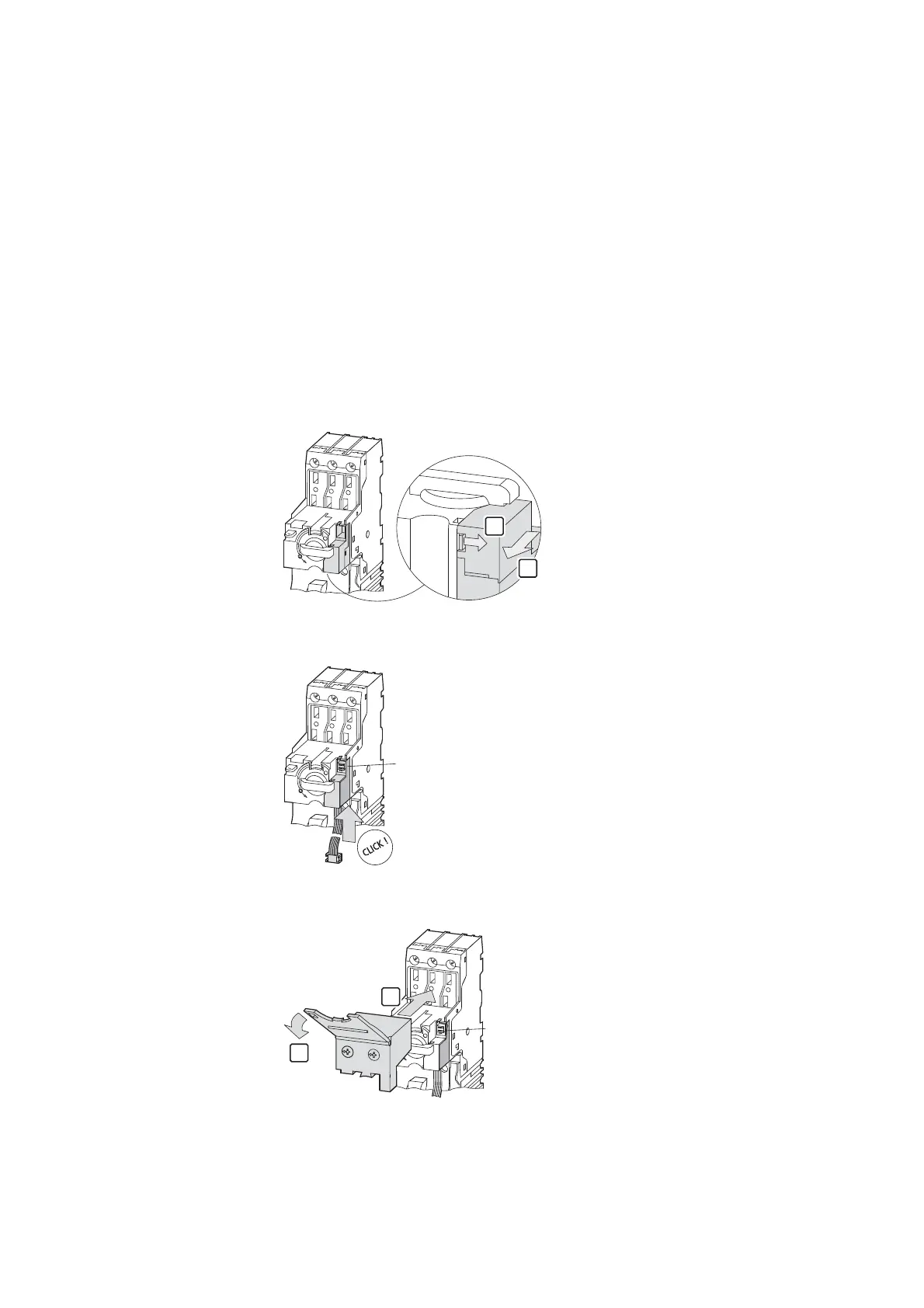

4.4.1 Mounting PKE32-COM
▶ Remove the empty module on the PKE basic device.
▶ Connect the PKE32-COM on the PKE basic device.
▶ Fit the “Advanced” part no. of PKE trip block (PKE-XTUA-…).
1
2
