2 I/O modules EU5E-SWD…
2.11 Digital module EU5E-SWD-X8D
SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com 47
2.11.4 Installation

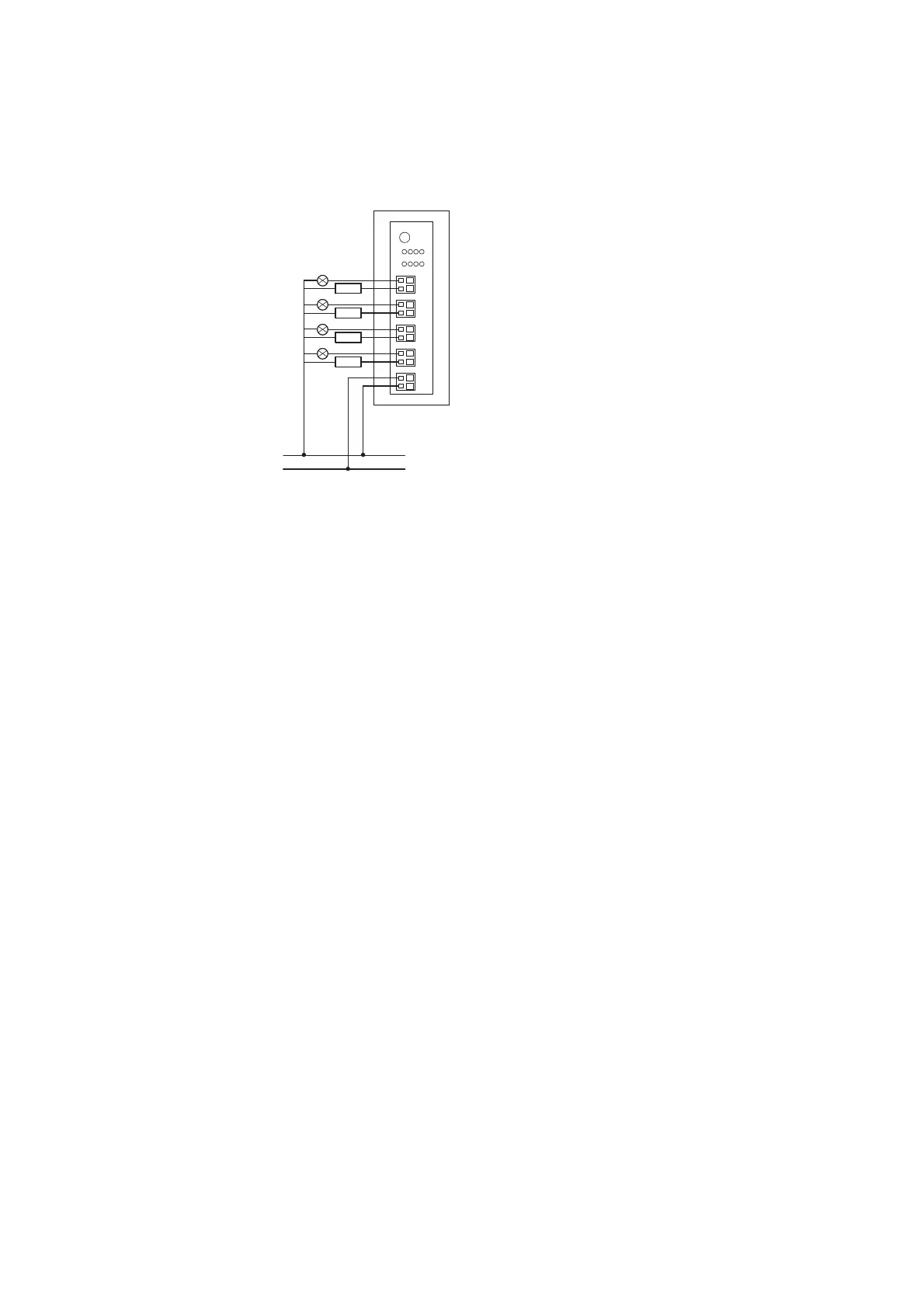

Figure 19: Connecting outputs and supply
▶ Connect the actuators to the corresponding outputs Q0 to Q7.
▶ Connect the 24 V power supply for the card.
2.11.5 Parameterization
Depending on the coordinator being used, the module's parameters will
need to be configured in the programming system or in the SWD-Assist plan-
ning and commissioning program.
2.11.6 Fieldbus-specific characteristics
Fieldbus EtherCAT
Please note the general information for configuring parameters
￫ Chapter 12 “Using SWD modules with the EtherCAT field bus”, page
247, particularly
￫ Section , „Device options“, page 247..
2.11.7 Programming
The module has one input byte and one output byte.
0 V
24 V DC
24 V
0 V
Q1
Q0
Q3
Q2
Q5
Q4
Q7
Q6
12
3
0
56
7
4
Q
Q
