5 Connection PKE-SWD for motor-protective circuit-breaker PKE12/32/65
5.4 Installation
126 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com
5.4 Installation

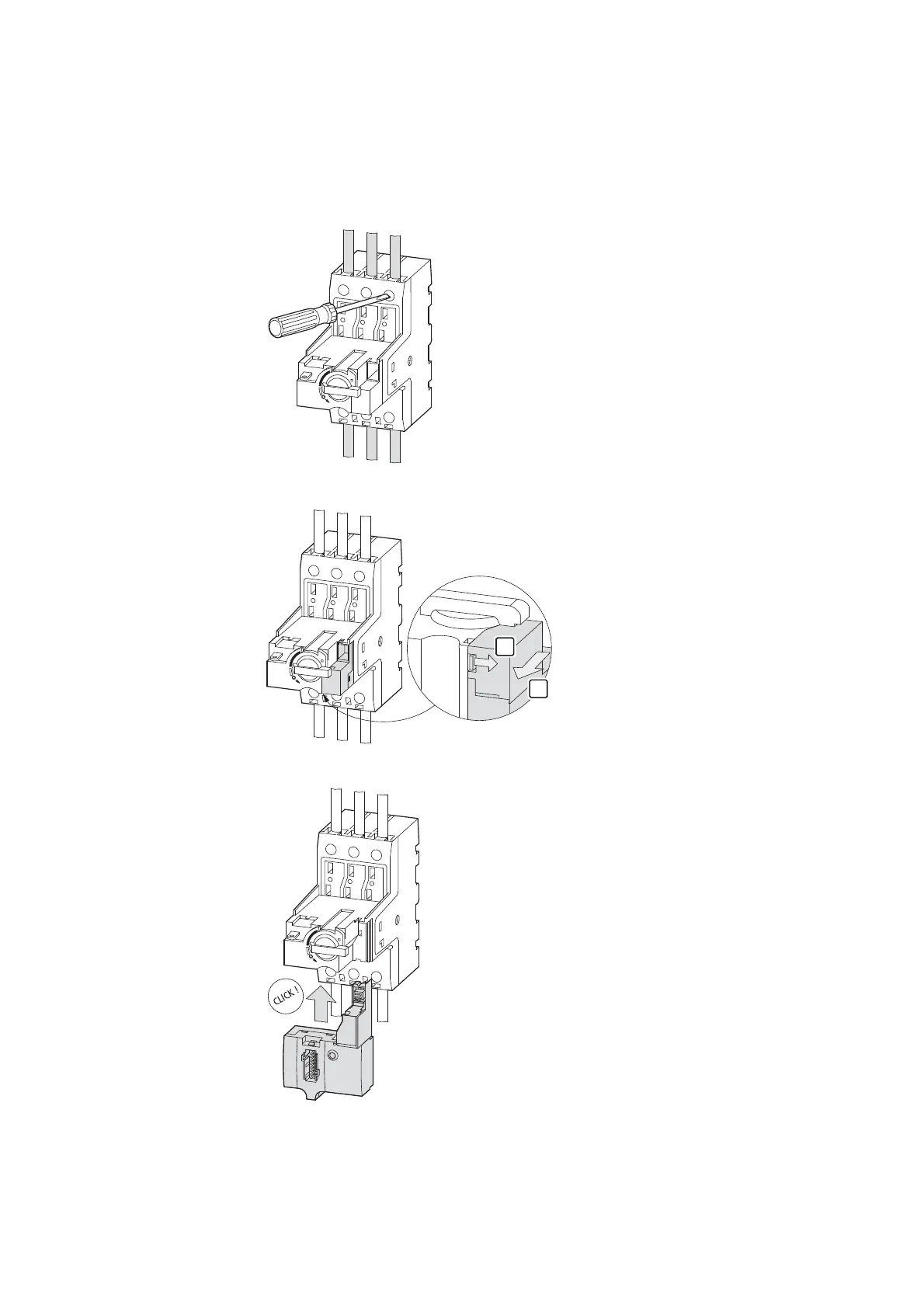

▶ Wire the main circuits of the PKE device.
▶ Remove the empty module on the PKE basic device.
▶ Connect the PKE-SWD on the PKE basic device.
▶ Fit the “Advanced” part no. of PKE trip block (PKE-XTUA-…).
1
2
