8 SL4-SWD and SL7-SWD base modules for signal towers
8.1 INTRODUCTION
The SL4-SWD and SL7-SWD base modules for signal towers are mounted
firmly on equipment by using a rapid mounting and wiring system. Up to 5
light or acoustic modules can be interconnected on a base module in order to
form a signal tower.
A variety of light and acoustic modules are available for this purpose.
With a high IP66 degree of protection, signal towers can be used in adverse
environments. Moreover, their rapid mounting and wiring system makes it
easy to remove them and then mount them again after transportation.
Finally, a variety of mounting configuration options and a choice between a
diameter of 40 mm or 70 mm ensures that signal towers can be easily
adapted to any application.
8.2 Surface mounting

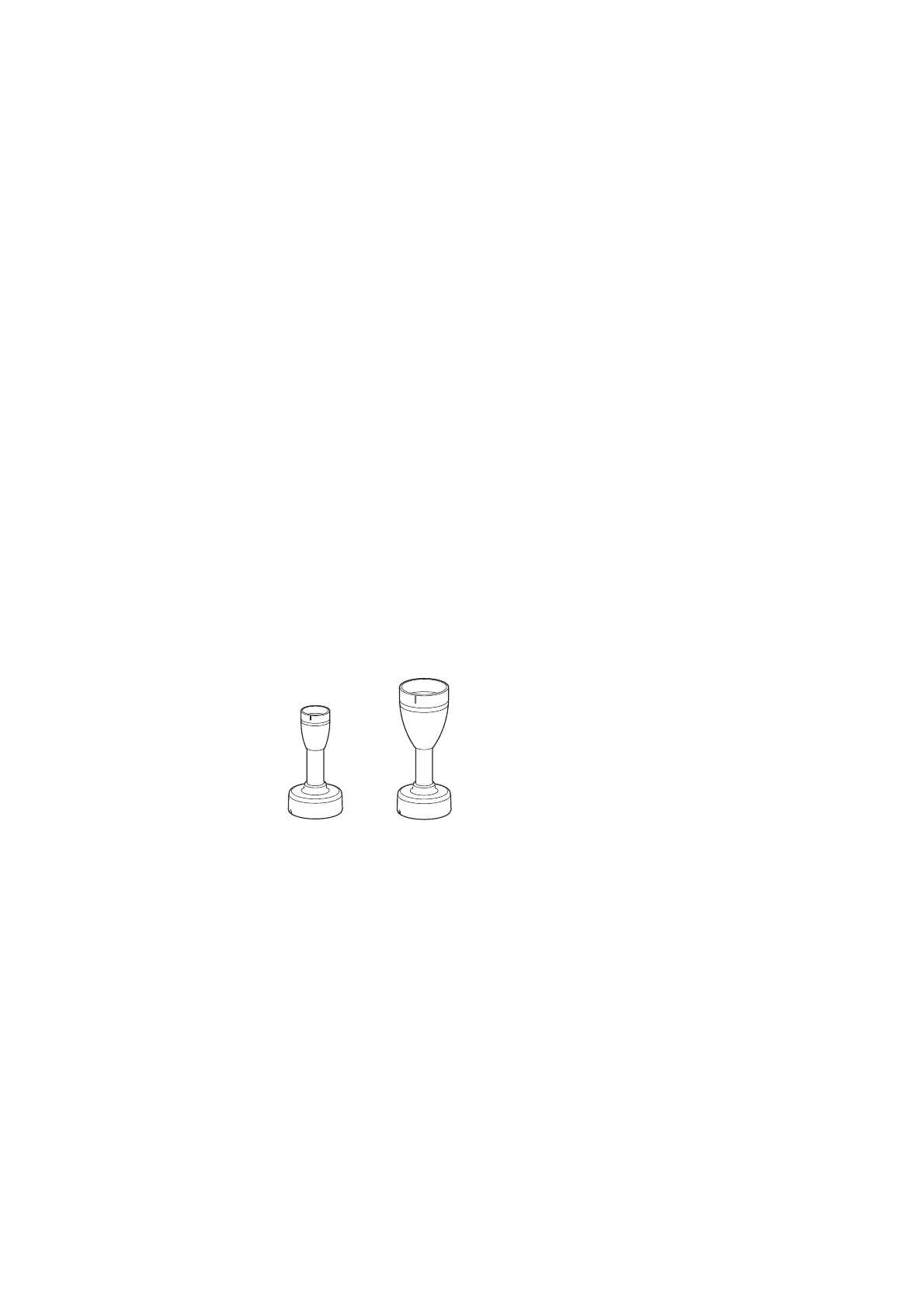

Figure 69: Lateral view of base modules
￫
The interoperability requirements for these SmartWire-DT mod-
ules are described in ￫ Section 13.6, „SWD module interoper-
ability requirements“, page 259.
SL4 SL7
