6 PKE-SWD-CP, Connection for circuit-breaker PKE
6.4 Installation
142 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com
6.4 Installation

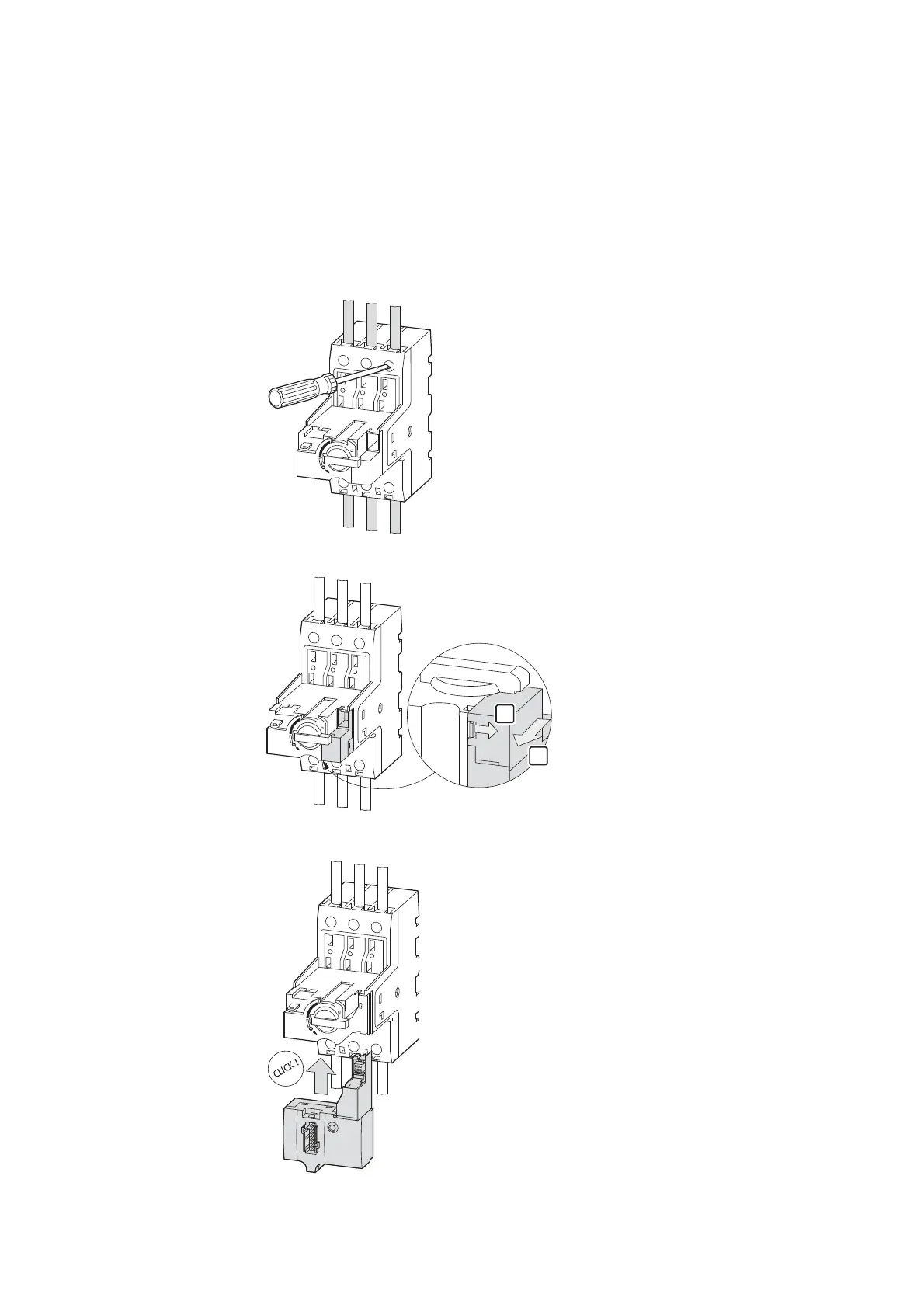

▶ Wire the main circuits of the PKE device.
▶ Remove the empty module on the PKE basic device.
▶ Connect the PKE-SWD-CP on the PKE basic device.
￫
When installing the module, the PKE basic device must not
have a PKE trip block installed on it.
1
2
