Eaton SmartWire-DT SWD Series User Manual

1 EU5C-SWD-PF1-1, EU5C-SWD-PF2-1 power modules
1.1 INTRODUCTION
SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com 15
1 EU5C-SWD-PF1-1, EU5C-SWD-PF2-1
power modules
1.1 INTRODUCTION
The SmartWire-DT power modules EU5C-SWD-PF1-1 and EU5C-SWD-PF2-1
are for the purpose of looping back the module power supply in the Smart-
Wire-DT network.
1.2 EU5C-SWD-PF1-1
1.2.1 Surface mounting
Connections/power supply

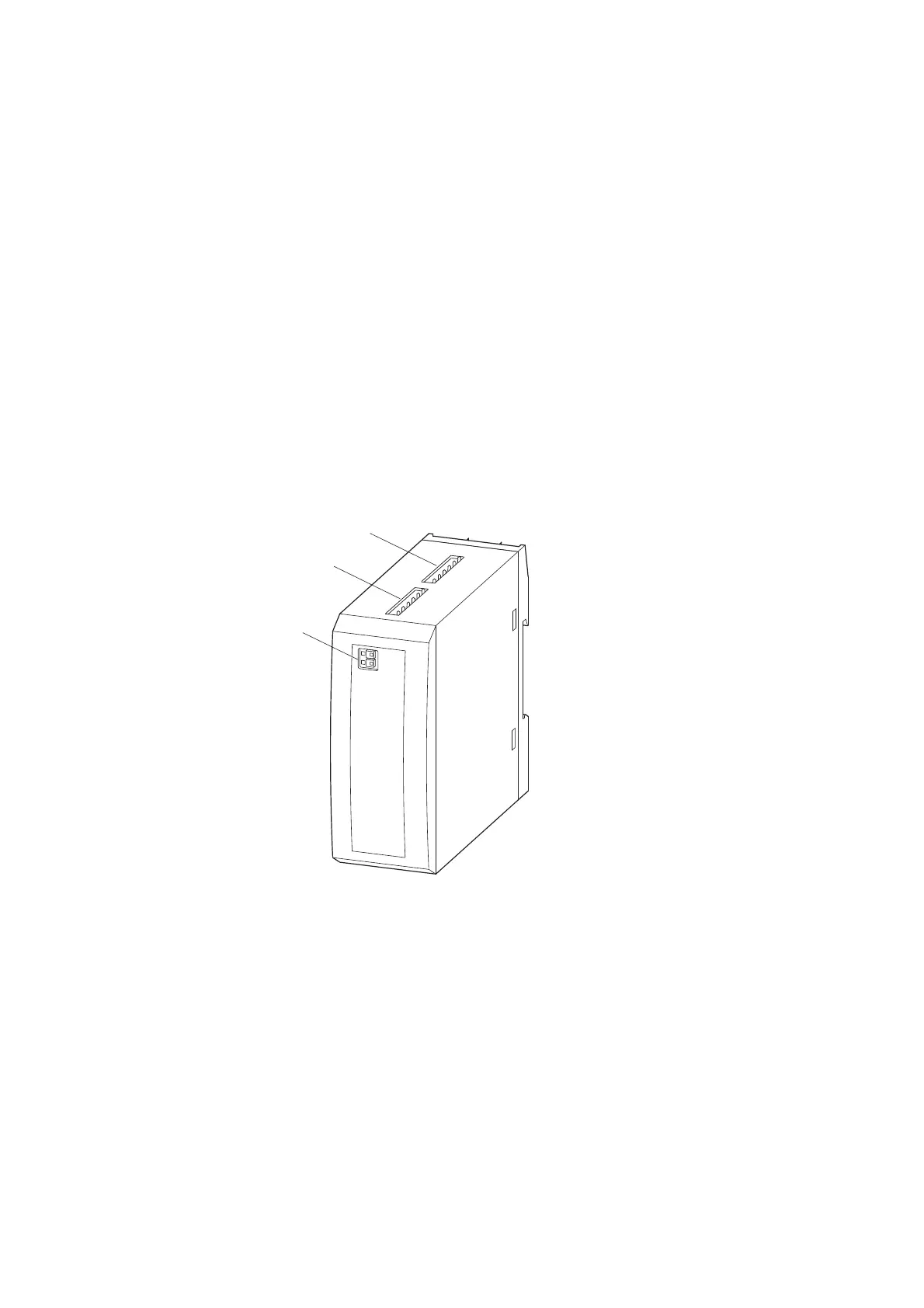

Figure 1: Connections of the EU5C-SWD-PF1-1 module
a Contactors power supply AUX
b SWD In
c SWD Out
The SmartWire-DT power module EU5C-SWD-PF1 loops the 24 V DC contac-
tor voltage back into the SmartWire-DT cable.
The looped back 24 V DC voltage is not electrically isolated from the 24 V DC
supply voltage (AUX) of the module. There is voltage reversal and EMC pro-
tection.
Voltage dips are not buffered.
a
b
c
