Eaton SmartWire-DT SWD Series User Manual

2 I/O modules EU5E-SWD…
2.1 INTRODUCTION
SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com 21
2 I/O modules EU5E-SWD…
2.1 INTRODUCTION
The SmartWire-DT input/output modules (I/O modules) are used for connect-
ing of other sensor and actuator devices. These can include, auxiliary con-
tacts of additional switchgear without built-in SmartWire-DT technology. To
reduce wiring, the modules are placed immediately next to the sensors/actu-
ators.
A range of modules with digital or analog inputs and outputs are available.
Following is a description of the I/O modules' general characteristics and
information on their use. For further information about specific modules, see
the module descriptions that follow this section.
The interoperability requirements for these SmartWire-DT modules are
described in ￫ Section 13.6, „SWD module interoperability requirements“,
page 259.
2.2 Surface mounting

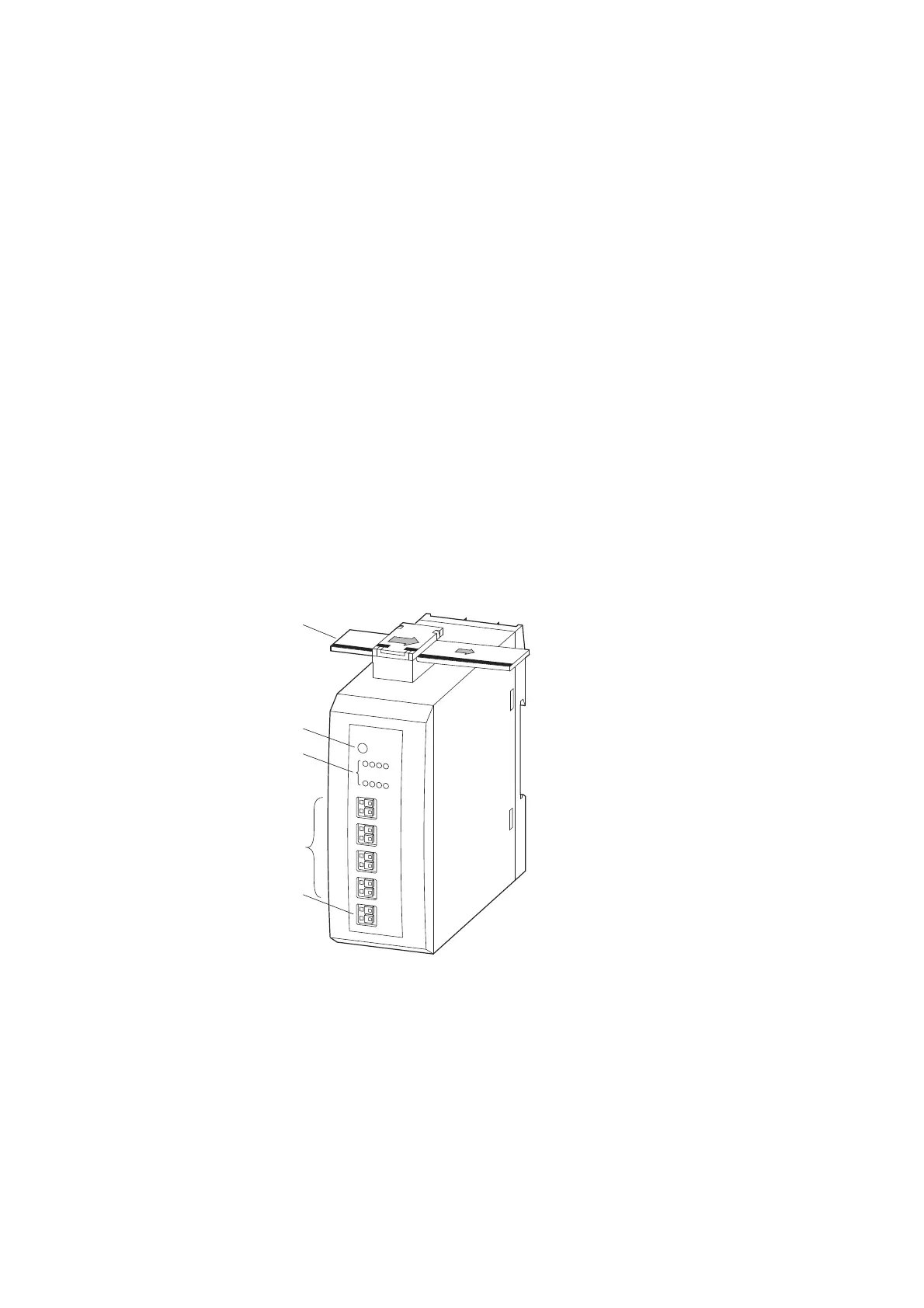

Figure 5: Connections of a SmartWire-DT I/O module
a
b
c
d
e
a SmartWire-DT cable with external device plug
b SmartWire-DT diagnostics LED
c Input/output status displays (optional)
d Input/output terminals
e External supply (optional)
