Eaton SmartWire-DT SWD Series - Installation; Parameterization; Fieldbus-Specific Characteristics; Programming

2 I/O modules EU5E-SWD…
2.6 Digital module EU5E-SWD-8DX
SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com 27
2.6.4 Installation

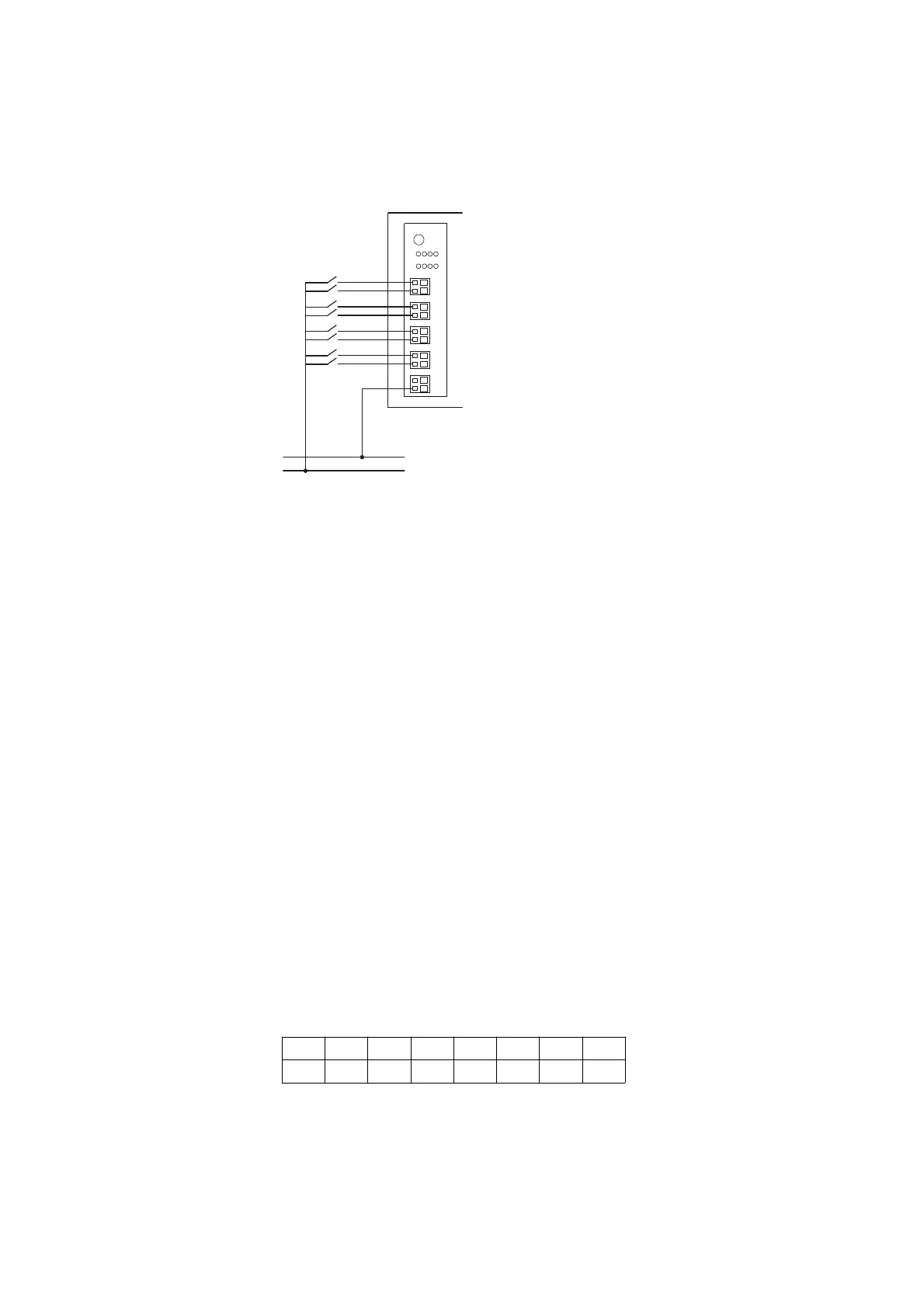

Figure 9: Connecting inputs and reference potential
▶ Connect the sensors to the corresponding inputs I0 to I7.
▶ Connect the reference potential 0 V DC to connection 0V.
2.6.5 Parameterization
Depending on the coordinator being used, the module's parameters will
need to be configured in the programming system or in the SWD-Assist plan-
ning and commissioning program.
2.6.6 Fieldbus-specific characteristics
Fieldbus EtherCAT
Please note the general information for configuring parameters
￫ Chapter 12 “Using SWD modules with the EtherCAT field bus”, page
247, particularly
￫ Section , „Device options“, page 247..
2.6.7 Programming
The module has two input bytes at its disposal.
2.6.7.1 Input points
Byte 0:
0 V
24 V DC
0 V
1
2
I1
I0
I3
I2
I5
I4
I7
I6
1230
56
7
4
I
I
76543210
SUBST PRSNT – DIAG – – – –
