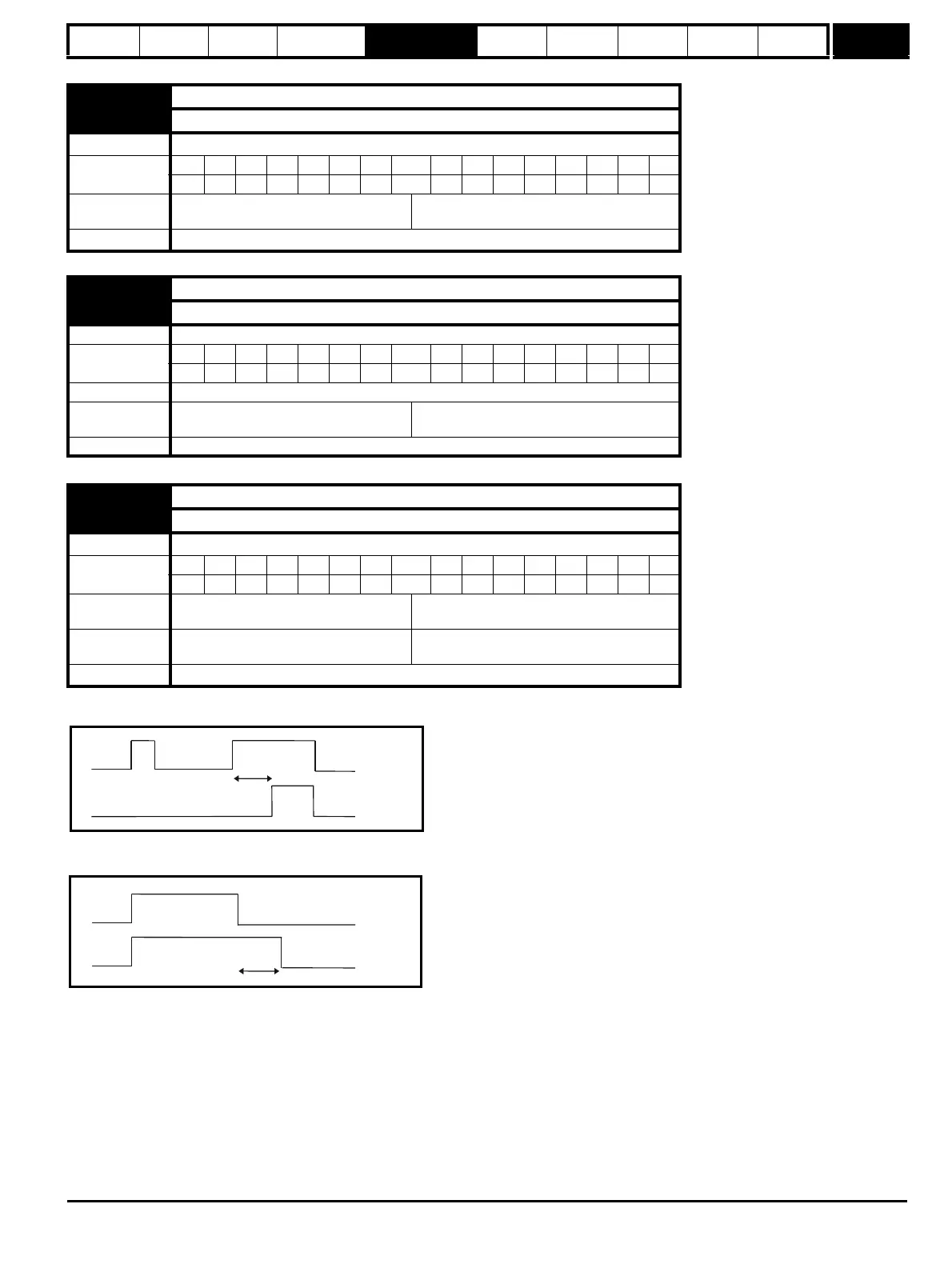

If the delay parameter is positive, the delay ensures that the output does not become active until an active condition has been present at the input for
the delay time as shown below.
If the delay parameter is negative, the delay holds the output active for the delay period after the active condition has been removed as shown below.
Therefore an active input that lasts for 4ms or more will produce an output that lasts at least as long as the delay time.
9.07 Logic function 1 source 2 invert
9.17 Logic function 2 source 2 invert
Drive modes Open-loop, Closed-loop vector, Servo, Regen
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Default
Open-loop, Closed-loop vector, Servo,
Regen
0
Update rate 4ms x number of menu 9 or 12 functions active read
9.08 Logic function 1 output invert
9.18 Logic function 2 output invert
Drive modes Open-loop, Closed-loop vector, Servo, Regen
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Coding RW, Bit, US
Default
Open-loop, Closed-loop vector, Servo,
Regen
0
Update rate 4ms x number of menu 9 or 12 functions active read
9.09 Logic function 1 delay
9.19 Logic function 2 delay
Drive modes Open-loop, Closed-loop vector, Servo, Regen
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range
Open-loop, Closed-loop vector, Servo,
Regen
±25.0 s
Default
Open-loop, Closed-loop vector, Servo,
Regen
0.0
Update rate 4ms x number of menu 9 or 12 functions active read
Delay
Input
Output
Delay
Input
Output
