5.17.3 SM-Encoder Plus / SM-Encoder Output Plus
The Solutions Modules checks for various errors as shown below.
Table 5-15 Solutions Module error status values for the SM-Encoder Plus and SM-Encoder Output Plus
Pr x.13, Pr x.24, Pr x.25 and Pr x.28 are only used when operating with a SM-Encoder Output Plus module. These parameters are not used when
operating with a SM-Encoder Plus module.

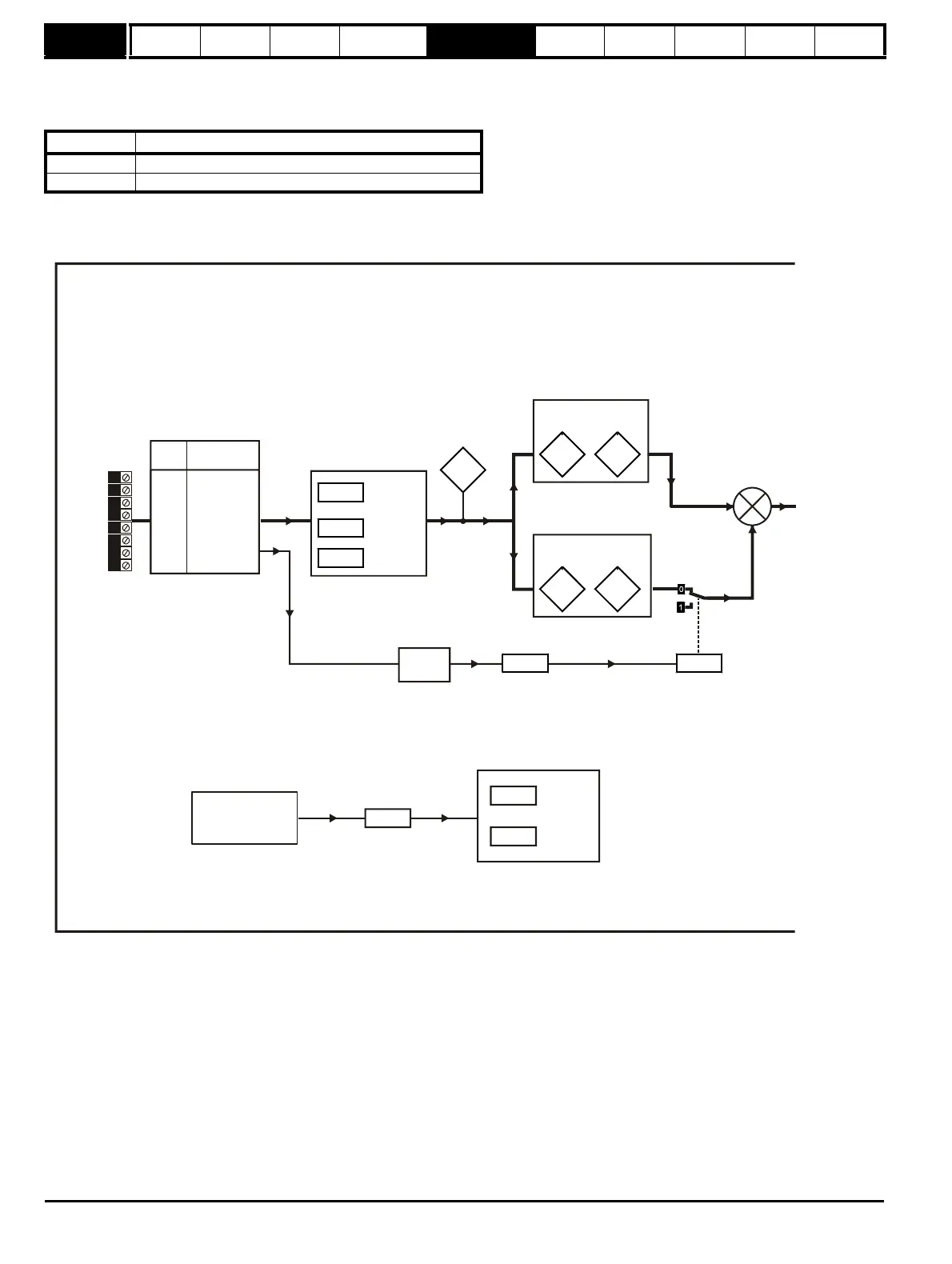

Figure 5-29 SM-Encoder Plus logic diagram
Error code Reason for error
0 No fault detected
1 Power supply overloaded (SM-Encoder Output Plus only)
x.29 x.30
Position
Revolution
counter
Non marker position information
x.32
x.33
Position
Revolution
counter
Marker position information
x.45
Position
feedback
initialised
x.07
Marker
position
disable
x.16
Encoder
termination
x.15
Encoder
type
Marker
flag
+
_
8-Way
Term Encoder
connections
1 A
2 A\
3 B
4 B\
5 Z
6 Z\
7 0V
8 Not used
x.10
Equivalent
lines per
revolution
x.08
Marker
input
SM-Applications
Freeze
flag
x.39
Freeze input
SM-Universal
Encoder Plus
x.35
Freeze
revolution
counter
Freeze positional
information
x.36
Freeze
position
