Unidrive SP Advanced User Guide 323
Issue Number: 10 www.controltechniques.com
5.17.9 SM-IO 32
Table 5-33 Solutions Module error status values for SM-IO 32

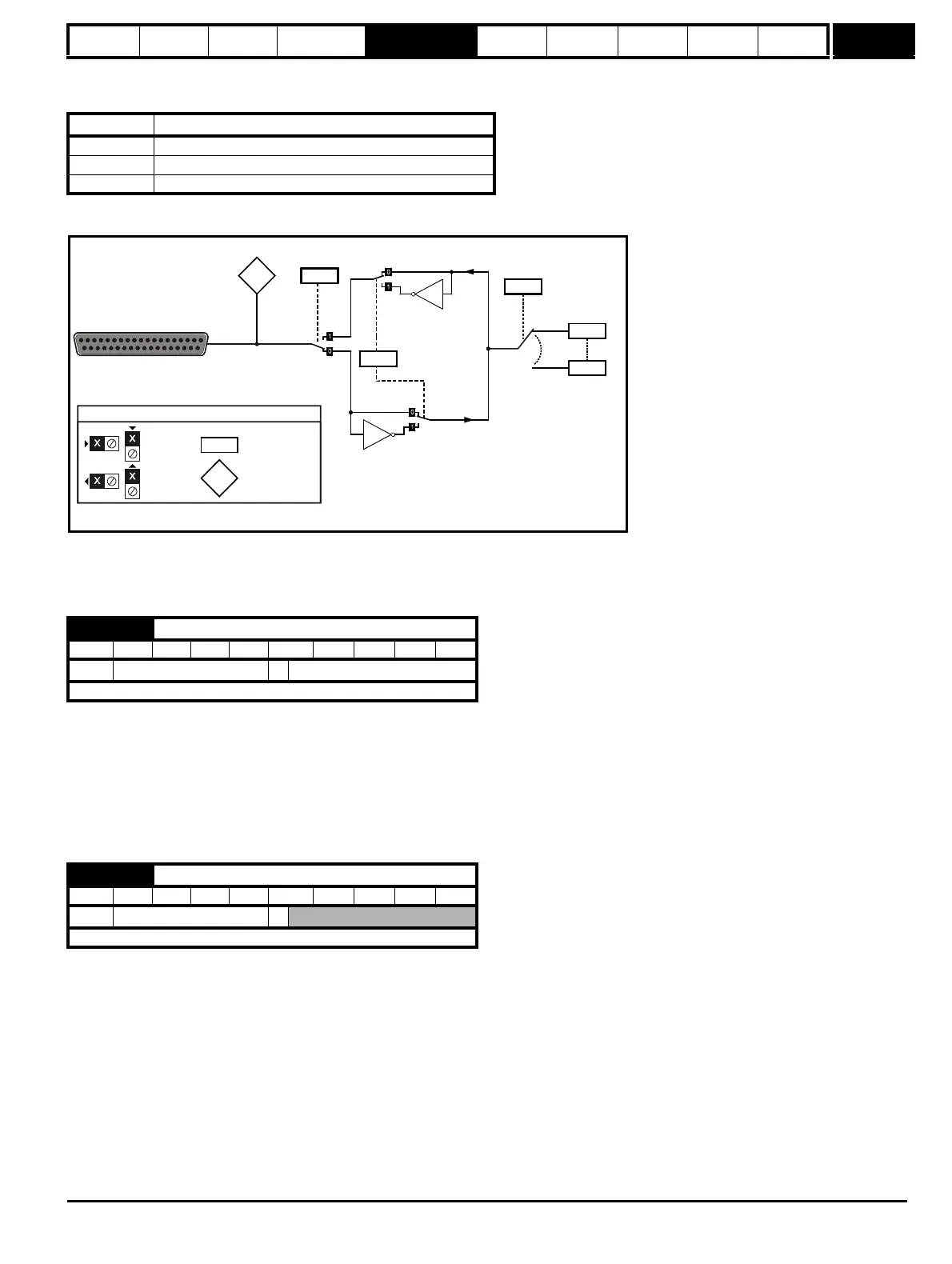

Figure 5-34 SM-I/O 32 logic diagram
Where y = the digital I/O number, except:
*Digital I/O 4 which is Pr x.29
**Digital I/O 1 which is Pr x.09 and digital I/O 2 which is Pr x.10
On Unidrive SP the menu for the relevant slot appears for the new Solutions Module category with the default parameter values for the new category.
When no Solutions Module is installed in the relevant slot this parameter is zero. When a Solutions Module is installed this parameter displays the
identification code.
208: SM-I/O 32
The new parameter values are not stored in the drive EEPROM until the user performs a parameter save by setting Pr xx.00 to 1000 (or 1001 in the
case of solely using the 24V back-up power supply) and pressing the stop/reset button. When parameters are saved by the user in the drive
EEPROM, the option code of the currently installed Solutions Module is saved in the drive EEPROM. If the drive is subsequently powered-up with a
different Solutions Module installed, or no Solutions Module is installed when one was previously installed, the drive will trip on SLx.dF or SLx.nF.
This parameter shows the version of software programmed into the Solutions Module. The software sub version is displayed in Pr x.51.
These two parameters display the software version in the form of:
Pr x.02 = xx.yy
Pr x.51 = zz
Error code Fault description
0 No errors
1 Digital outputs or 24Vout overloaded
74 Solutions Module over temperature (>90°C)
x.01 Solutions Module ID code
RO Uni PT US
Ú
0 to 599
Ö
208
Update rate: Write on power-up
x.02 Solutions Module main software version
RO Uni NC PT
Ú
00.00
Ö
Update rate: Write on power-up
X.XX
X.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default setting
X.3y*
x(-1)
x(-1)
X.1y
X.0y**
I/O state
Output
select
Source/
destination
I/O invert
??.??
??.??
X.2y
Any unprotected
parameter
