Menus 15 to 17
SM-I/O Lt Tmr
Parameter
structure
Keypad and
display
Parameter
x.00
Parameter
description format
Advanced parameter
descriptions
Macros
Serial comms
protocol
Electronic
nameplate
Performance RFC mode
298 Unidrive SP Advanced User Guide
www.controltechniques.com Issue Number: 10

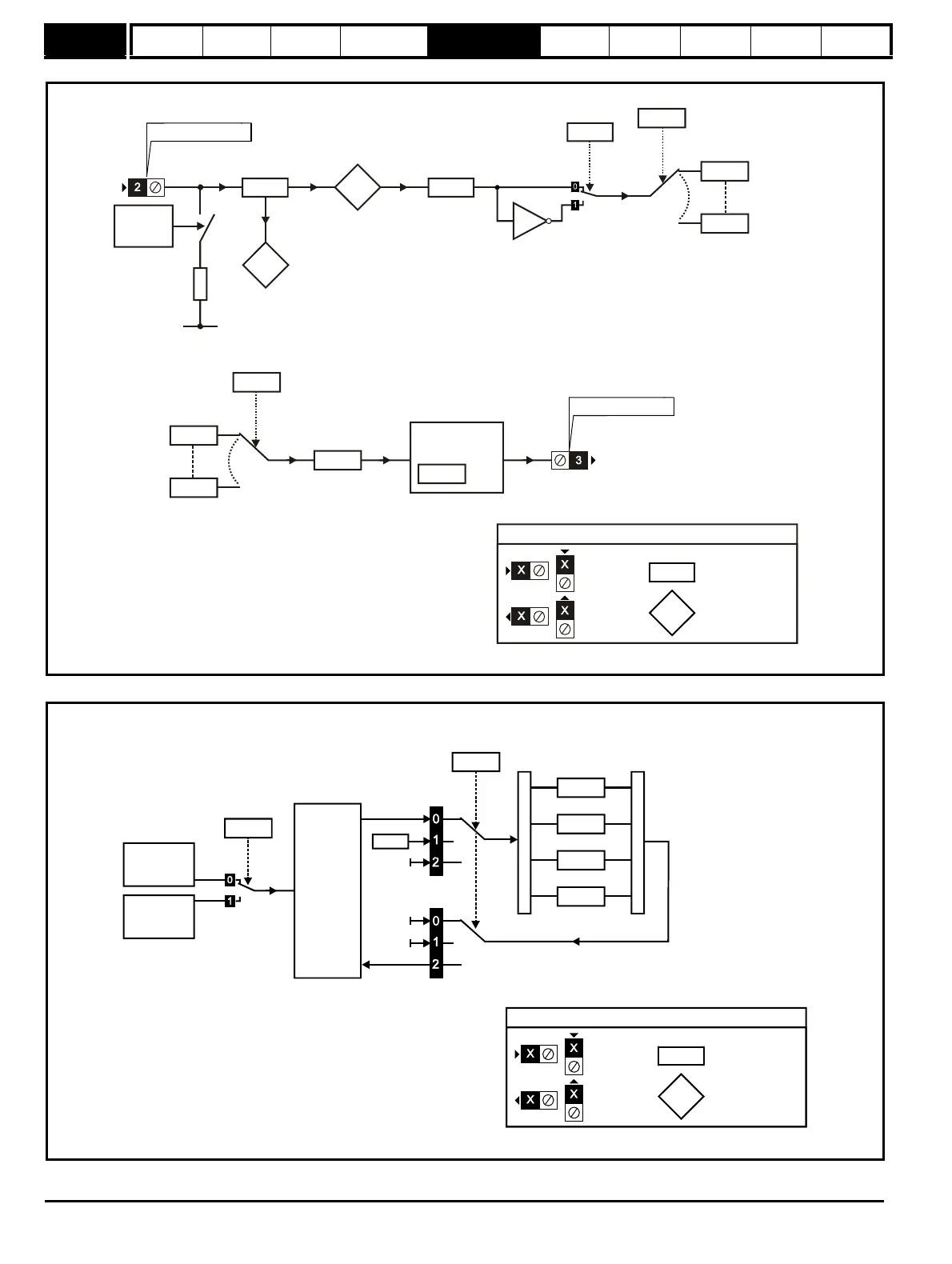

Figure 5-35 SM-I/O Lite & SM-I/O Timer analog I/O logic diagram
Figure 5-36 SM-I/O Timer real time clock logic diagram
x.48
0.00
Default
source
Pr
0.00
21.51
Source
x.49
Scaling
x.39
Mode
Voltage
or current
0.XX
0.XX
Key
Read-write
(RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
x.40
Level
x.03
Current loop
loss indicator
x.41
Scaling
x(-1)
x.42
Invert
x.43
Destination
0.00
21.51
Default
destination
Pr 0.00
200R
0V
Current
mode and
protection
x.38
Mode
T2 Analog Input 1
T3 Analog Output 1
0.XX
0.XX
Key
Read-write
(RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
x.19
Real time
clock normal
operation
Real time
clock
+1 hour
Real time
clock
x.30
Real time
clock update
mode
User
x.34
x.35
x.36
x.37
Minutes/seconds
Days/hours
Month/date
Years
Real time
clock daylight
saving mode
