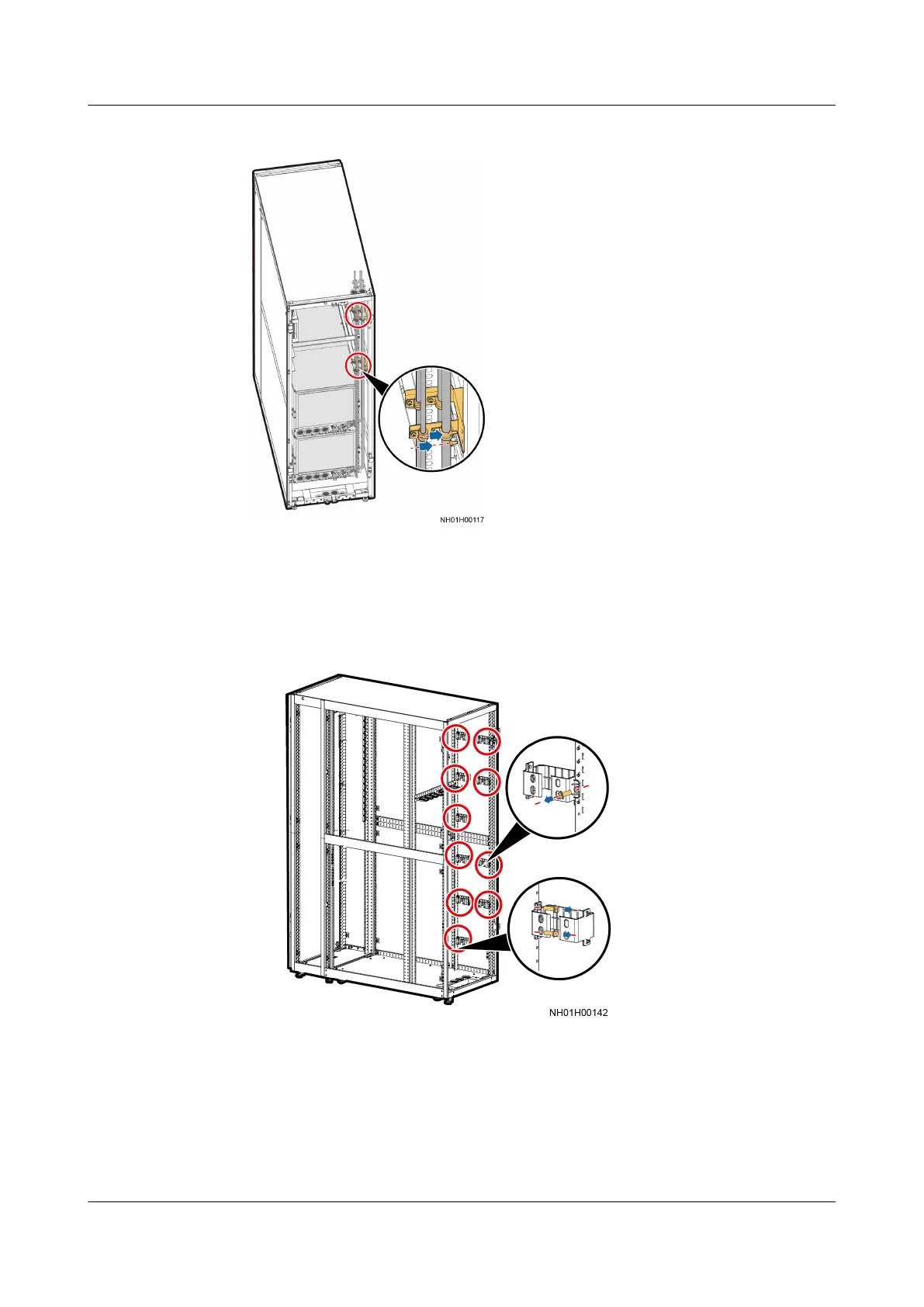

Figure 4-51 Top pipe routing inside the converged cabinet
● (Optional for installing the second smart cooling product) Laying out pipes
inside the IT cabinet
a. Remove the ten cable rings from the side-routed pipe in the rear of the IT
cabinet, as shown in Figure 4-52.
Figure 4-52 Removing cable rings
b. Lay out pipes inside the IT cabinet, as shown in Figure 4-53.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 133
