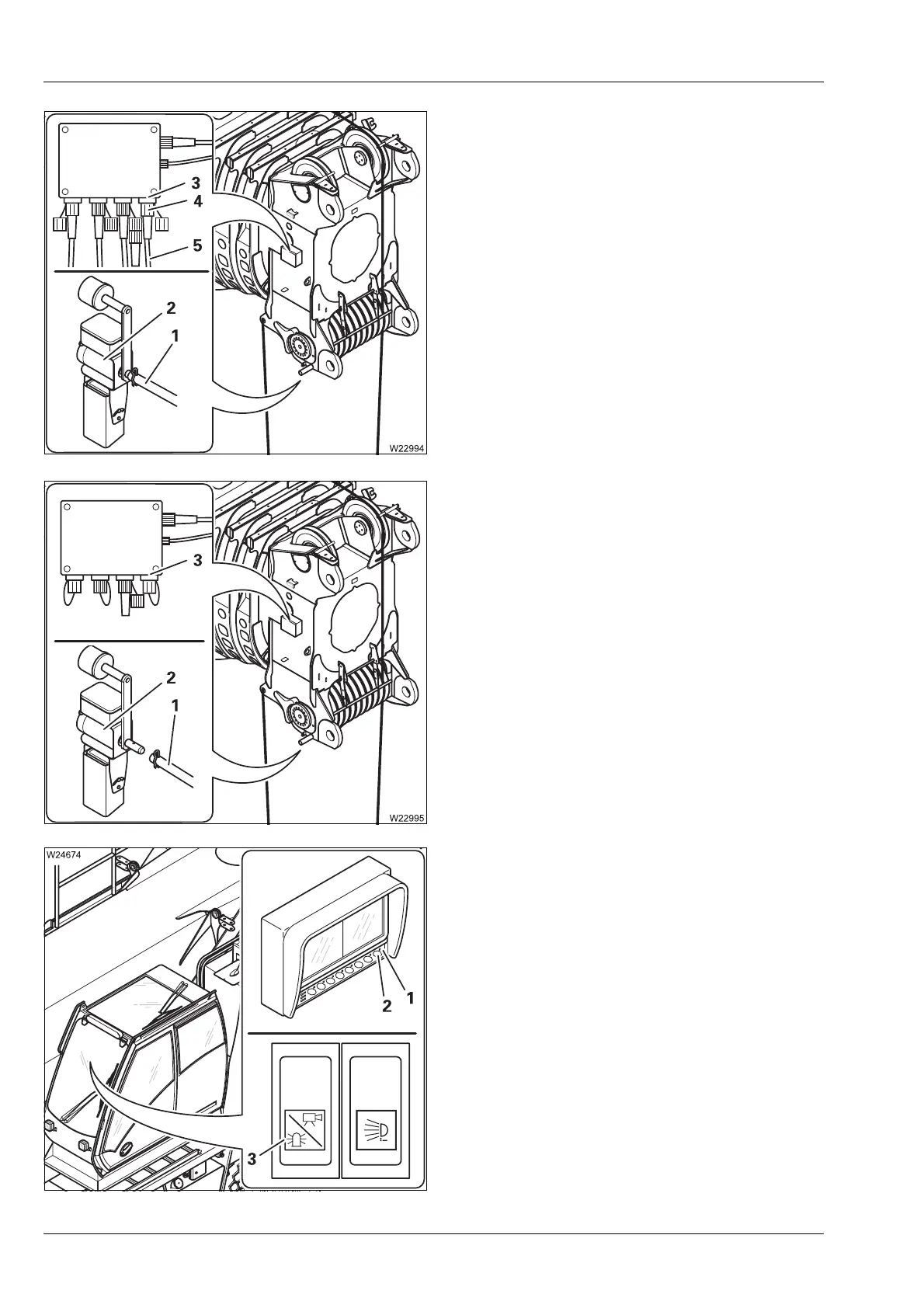

Installing
• Insert the camera (2) into the clamp (1) and
secure it with the retaining pin.
• Insert the plug (4) in the socket (3).
• Lay the cable (5) in such a way that it is not
damaged.
Removing
• Pull the plug out of the socket (3) and close
the socket with the cap.
• Remove the camera (2) from the clamp (1)
and put the retaining pin in the holder (1).
Switching on
• Switch the ignition on.
• Press switch (3) down.
• Press the (2) button once.
The lamp (1) lights up. The image appears
on the monitor after a few seconds. If an
image does not appear;
à p. 14 - 9.
Switching off
• Press the (2) button once.
The lamp (1) and the image go out.
• Press switch (3) up.
